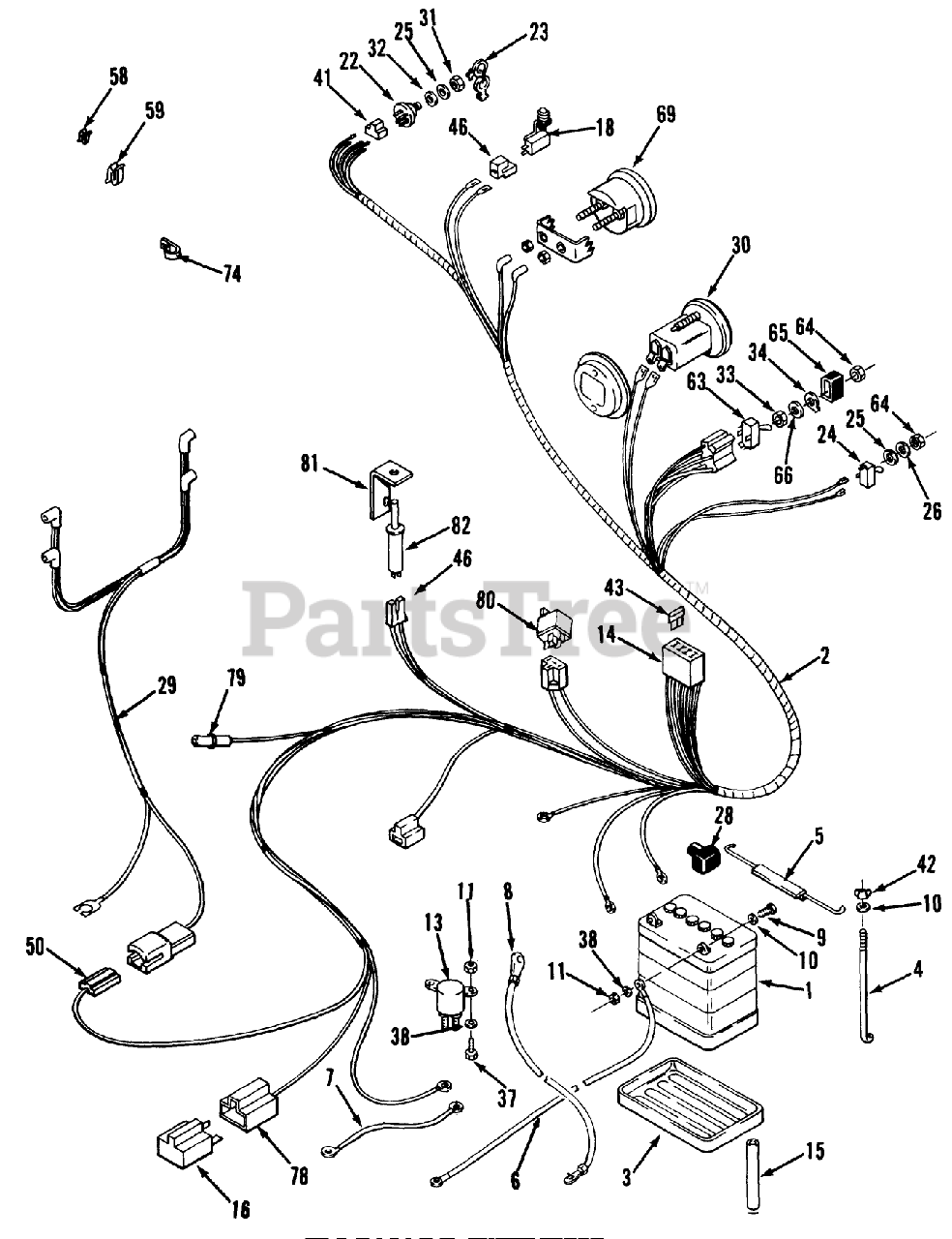

32-16BE01 (216-H) - Toro Lawn Tractor (1990) Electrical System Parts Diagram

Lawn Tractor

Electrical System Parts Diagram

  • Title

1

Toro 115877

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

2

Toro 117690

DISCONTINUED

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 117316

ROD-BATTERY HOLD DWN

$31.99

$

In Stock, only 1 left!

0

6

Toro 111076

WIRE - 14" BLACK

$

$

Not available

7

Toro 114642

DISCONTINUED

$

$

Not available

8

Toro 111076

WIRE - 14" BLACK

$

$

Not available

9

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

11

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

13

Toro 110167

See Supercession: 740207
(Superseded to 740207)

$36.99

$

In Stock, only 1 left!

0

14

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 4 left!

0

15

Toro 114721

TUBE-BATTERY DRAIN

$

$

Not available

16

Toro 117007

DISCONTINUED

$

$

Not available

18

Toro 114240

See Supercession: 112418
(Superseded to 112418)

$64.99

$

In Stock, only 3 left!

0

22

Toro 116338

KEY SWITCH ASM

$84.99

$

In Stock, only 2 left!

0

23

Toro 111220

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

Toro 116738

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

24

Toro 102138

SWITCH-LIGHTS

$42.99

$

In Stock, only 1 left!

0

25

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$9.49

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

29

Toro 78-0010

DISCONTINUED

$

$

Not available

30

Toro 113469

GAUGE-HOURMETER

$521.99

$

Usually ships in 3-6 days

0

31

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

32

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

33

Toro 105805

See Supercession: 218-498
(Superseded to 218-498)

$0.99

$

In Stock, only 1 left!

0

34

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

37

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 6

0

38

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

41

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 13

0

42

Toro 116497

See Supercession: 32103-22
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 10

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, only 2 left!

0

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 8

0

46

Toro 111498

CONNECTOR BODY

$5.99

$

In Stock, only 2 left!

0

50

Toro 104926

CONNECTOR BODY ELECT

$4.99

$

In Stock, only 1 left!

0

58

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

59

Toro 3023

DISCONTINUED

$

$

Not available

63

Toro 116716

SWITCH-TOGGLE DPDT

$106.99

$

In Stock, only 1 left!

0

64

Toro 113179

*DISC**

$

$

Not available

65

Toro 113050

COVER-PTO SWITCH

$

$

Not available

66

Toro 920242

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

69

Toro 117176

DISCONTINUED

$

$

Not available

74

Toro 105490

CLAMP

$

$

Not available

78

Toro 105303

CONNECTOR 5 WAY

$

$

Not available

79

Toro 518075

DISCONTINUED

$

$

Not available

80

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

81

Toro 120380

DISCONTINUED

$

$

Not available

82

Toro 120370

SWITCH-PLUNGER

$98.99

$

Usually ships in 3-6 days

0
