32-16BE01 (216-H) - Toro Lawn Tractor (1990) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

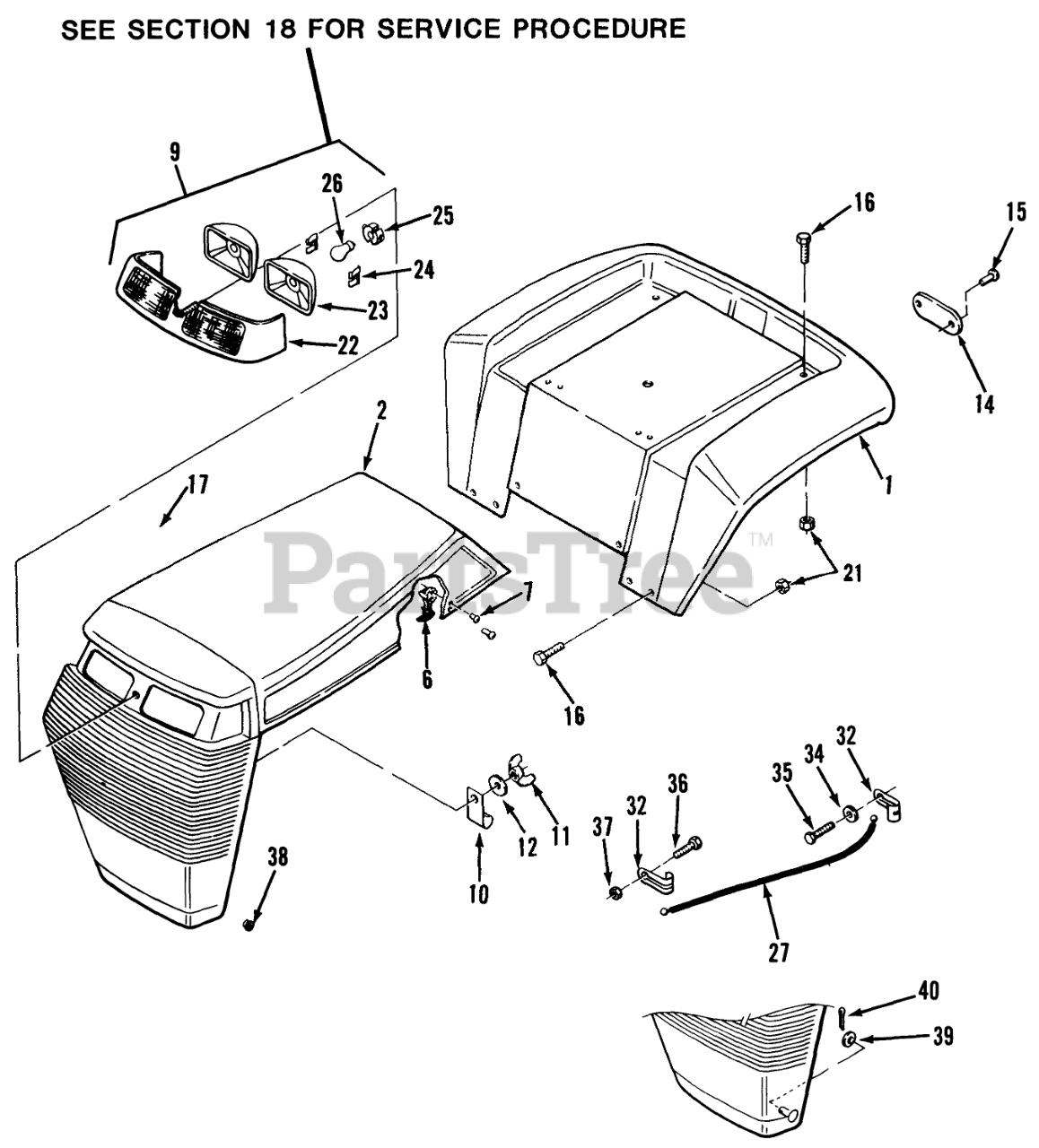

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 114389

FENDER R

$689.99

$

Usually ships in 3-6 days

0

2

Toro 118430

Hood & Grill
(Superseded to 121379)

$1237.99

$

Usually ships in 3-6 days

0

6

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

7

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

9

Toro 116591

Head Light Bar (Includes items 22, 23, 24, 25 & (2) of 26)

$

$

Not available

10

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

11

Toro MW8756

Nut-Wing
(Superseded to 32103-19)

$1.49

$

In Stock, only 2 left!

0

12

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0

14

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

15

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 12

0

16

Toro 900214

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 116601

LIGHT-BAR BLACK

$

$

Not available

23

Toro 111684

LIGHT POD

$77.99

$

Usually ships in 3-6 days

0

24

Toro 111685

RETAINER

$5.49

$

Usually ships in 3-6 days

0

25

Toro 116262

SOCKET-HEADLIGHT

$47.99

$

Usually ships in 3-6 days

0

26

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

27

Toro 115414

CABLE-ASS'Y

$12.99

$

Usually ships in 3-6 days

0

32

Toro 115413

CLEVIS

$

$

Not available

34

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

35

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

36

Toro 913111

Screw-Machine
(Superseded to 3290-321)

$4.49

$

In Stock, only 2 left!

0

37

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

38

Toro 5977

NYLINER BUSHING

$6.99

$

Usually ships in 3-6 days

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

40

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available
