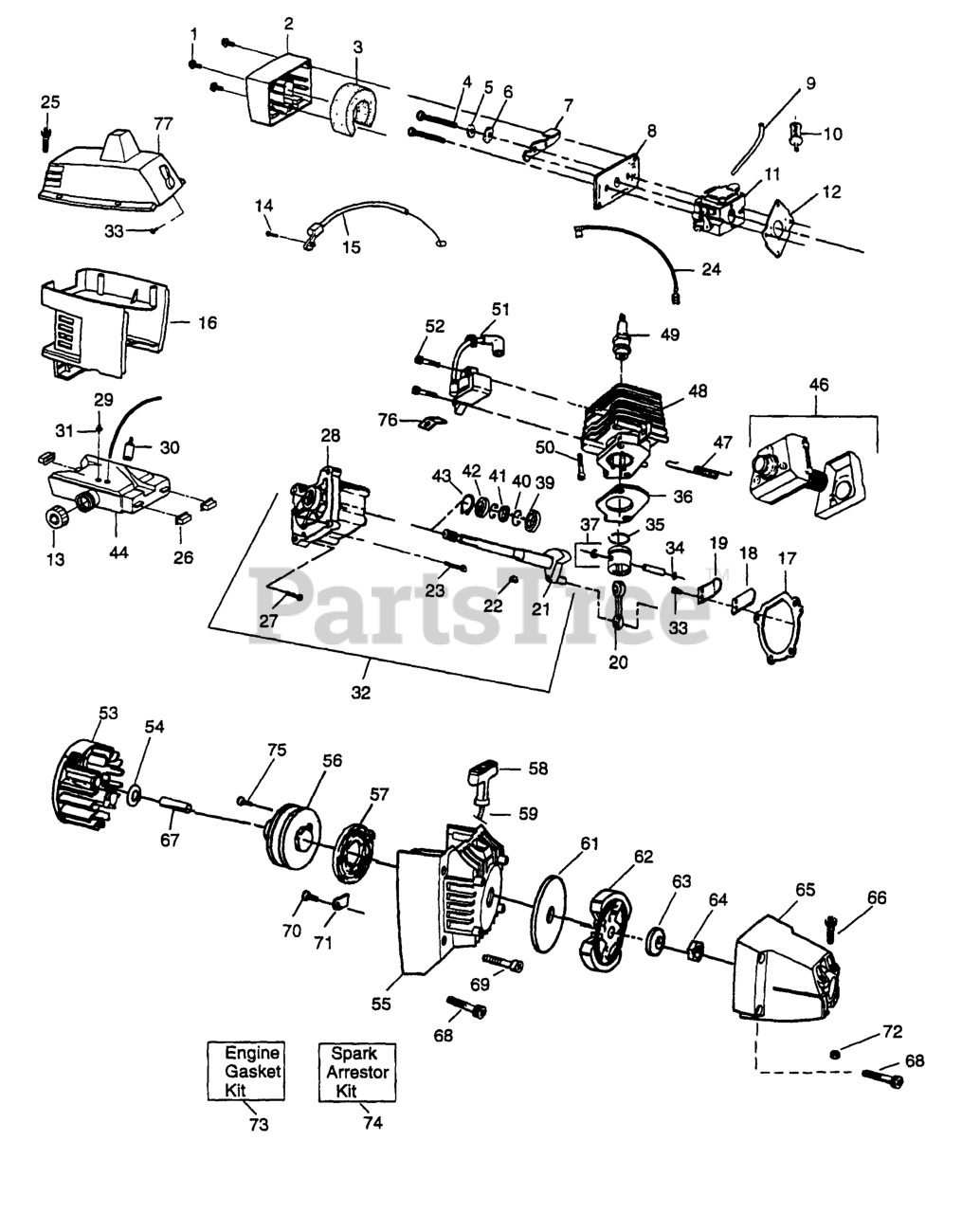

32 L - Husqvarna String Trimmer (1996-10) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Husqvarna 530015773

SCREW-10-24 X 13/16

$

$

Not available

2

Husqvarna 530029727

COVER
(Superseded to 530038081)

$

$

Not available

3

Husqvarna 530027530

AIR FILTER

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 530015849

SCREW

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 530036325

SPACER - CHOKE
(Superseded to 530015852)

$

$

Not available

6

Husqvarna 530015254

WASHER

$

$

Not available

7

Husqvarna 530029114

Choke Shutter

$

$

Not available

8

Husqvarna 530029632

Air Filter Plate

$

$

Not available

9

Husqvarna 530069247

HOSE. FUEL

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 530069641

CARBURETOR (WA-298A)
(Superseded to 545081825)

$

$

Not available

12

Husqvarna 530019164

GASKET-CARB

Note: (Included in Engine Gasket Kit P/N 530069302)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 530014335

FUEL CAP ASSY.
(Superseded to 530014347)

$9.49

$

In Stock, Qty 10

0

14

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530047041

THROTTLE CABLE

$

$

Not available

16

Husqvarna 530037859

SHROUD

$39.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530019154

GASKET-C'CASE/SHROUD

Note: (Included in Engine Gasket Kit P/N 530069302)

$

$

Not available

18

Husqvarna 530027593

VALVE-REED

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530010960

ASS'Y-CONNECTING ROD

Note: (Incl. Bearings)

$

$

Not available

21

Husqvarna 530010934

ASSY-CRANKSHAFT

$

$

Not available

22

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

23

Husqvarna 530015772

SCREW-10-24 X 1" (TAP.)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 530029777

ASSY-WIRE LEAD (BLACK)

$

$

Not available

25

Husqvarna 530015886

SCREW-10-14 X 13/16 (PL

$3.49

$

In Stock, Qty 16

0

26

Husqvarna 530029760

ISOLATOR

$

$

Not available

27

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.49

$

In Stock, only 4 left!

0

28

Husqvarna 530014016

Crankcase Ass'y.

Note: (Incl. #39,40,41, & 42)

$

$

Not available

29

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 18

0

30

Husqvarna 530029717

FILTER

$

$

Not available

31

Husqvarna 530029696

Retainer

$

$

Not available

32

Husqvarna 530014015

ASSY-C'CASE & C'SHAFT
(Superseded to 530071705)

Note: (#38,39,40,41,42,& 43)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530016064

SCREW

$3.49

$

In Stock, Qty 14

0

34

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 530025875

RING-PISTON (HOOKED)

$

$

Not available

36

Husqvarna 530019178

GASKET-CYL W/ADHESIVE
(Superseded to 530019267)

Note: (Included in Engine Gasket Kit P/N 530069302)

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 530069277

KIT-PISTON (32CC)

Note: (Incl. #34,35 & pin)

$

$

Not available

39

Husqvarna 530032103

Inner Bearing

$

$

Not available

40

Husqvarna 530015787

RING-RETAINING

$

$

Not available

41

Husqvarna 530019158

SEAL-CRANKSHAFT

$

$

Not available

42

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

43

Husqvarna 530015789

RING-RETAINING (SHAFT)

$

$

Not available

44

Husqvarna 530014278

Fuel Tank Ass'y.

Note: (Incl. 29-31)

$

$

Not available

46

Husqvarna 530069257

KIT-MUFFLER ASS'Y
(Superseded to 530069310)

$

$

Not available

47

Husqvarna 530036409

SPRING-MUFFLER

$

$

Not available

48

Husqvarna 530069628

CYLINDER
(Superseded to 530071581)

$

$

Not available

49

Husqvarna 952030201

Spark Plug
(Superseded to 503235112)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 530001624

SCREW 1/4-20 X 7/8

$

$

Not available

51

Husqvarna 530039146

IGNITION.

$

$

Not available

52

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

53

Husqvarna 530039189

FLYWHEEL

$

$

Not available

54

Husqvarna 530347987

WASHER
(Superseded to 530016030)

$

$

Not available

55

Husqvarna 530014320

FAN HSG. ASSY.

$

$

Not available

56

Husqvarna 530069291

KIT-STARTER PULLEY
(Superseded to 530071387)

Note: (Incl. #75)

$

$

Not available

57

Husqvarna 530029395

SPRING-STARTER
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

58

Husqvarna 530029636

STARTER HANDLE 36/41
(Superseded to 530150318)

$5.99

$

In Stock, Qty 11

0

59

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 3 left!

0

61

Husqvarna 530094189

WASHER-CLUTCH

$6.99

$

In Stock, Qty 7

0

62

Husqvarna 530069254

KIT-CLUTCH ASS'Y

$

$

Not available

63

Husqvarna 530015796

WASHER-BELLEVILLE

$

$

Not available

64

Husqvarna 530001733

NUT

$

$

Not available

65

Husqvarna 530014324

CLUTCH HSG.

$22.99

$

Usually ships in 3-10 days

0

66

Husqvarna 530015767

SCREW-10-24 X 1-3/8 (UN

$3.49

$

Usually ships in 3-10 days

0

67

Husqvarna 530027511

SPACER-CLUTCH

$14.99

$

Usually ships in 3-10 days

0

68

Husqvarna 530015770

Screw

$

$

Not available

69

Husqvarna 530015769

SCREW-10-24X1-3/8-TAPTI

$

$

Not available

70

Husqvarna 530015496

SCREW-10-16 X 1/2 HI-LO

$

$

Not available

71

Husqvarna 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

72

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

73

Husqvarna 530069302

GASKET KIT

Note: (Includes Ref. Nos. 12, 17 & 36)

$

$

Not available

74

Husqvarna 952701612

Spark Arrestor Kit

$

$

Not available

75

Husqvarna 530016080

SCREW

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 530025995

TAB-45 DEGREE ELECTRICAL

$

$

Not available

77

Husqvarna 530029771

COVER-CYLINDER (GRAY)
(Superseded to 530069358)

$

$

Not available

Husqvarna 530084055

Operator Manual

Note: Not Shown

$

$

Currently unavailable

Instruction Decal

Note: Not Shown

$

$

Not available

Husqvarna 530038737

DECAL GAS TRIMMER PARTS INSTRU

Note: Not Shown

$

$

Not available

Husqvarna 530036740

Type 2

Note: Not Shown

$

$

Not available
