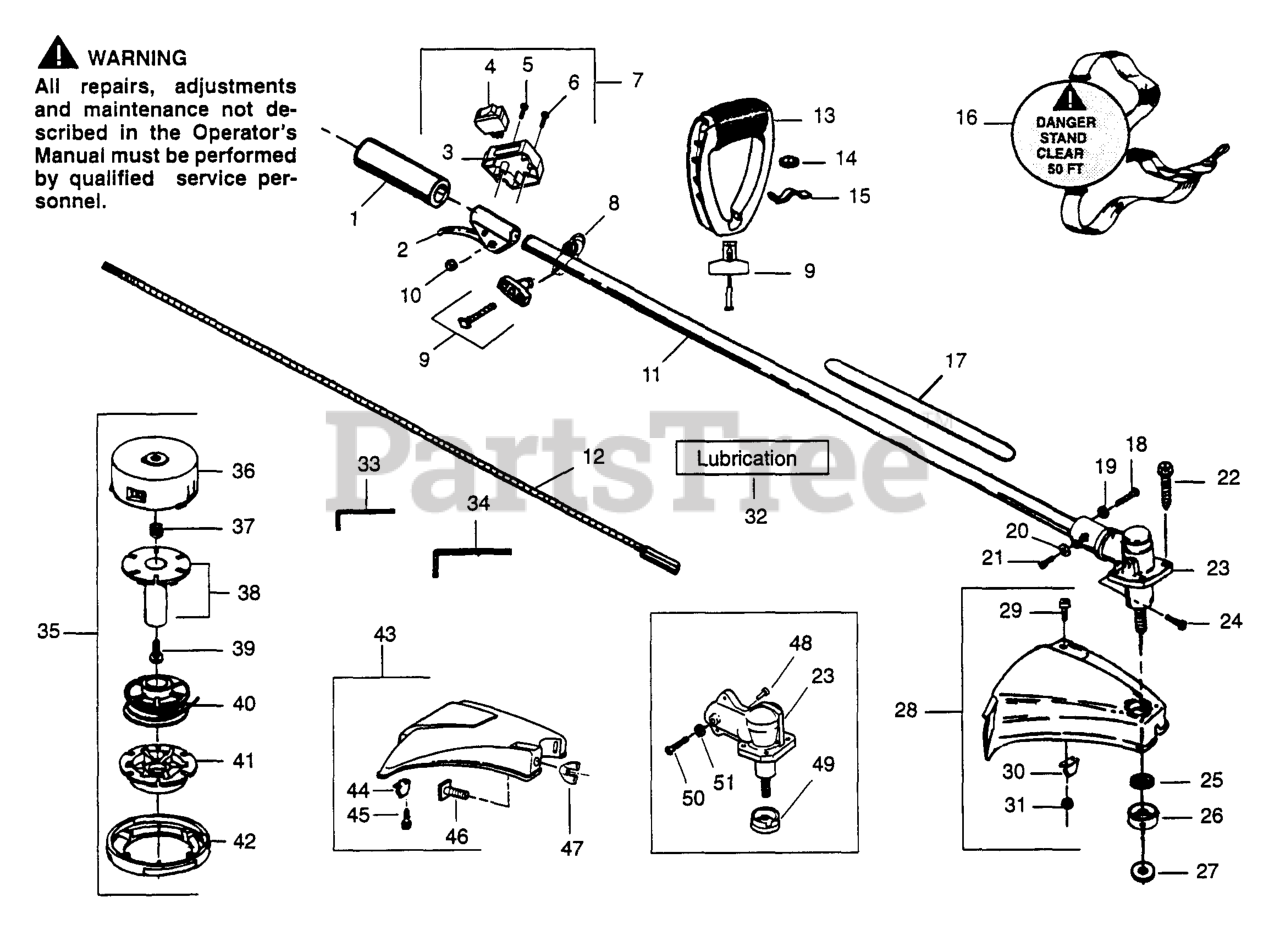

32 L - Husqvarna String Trimmer (1996-10) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Husqvarna 530029762

GRIP

$

$

Not available

2

Husqvarna 530014372

THROTTLE HOUSING ASSEMBLY

$

$

Not available

3

Husqvarna 530029758

COVER-KILL SWITCH (GRAY)

$

$

Not available

4

Husqvarna 530429776

Switch

$

$

Currently unavailable

5

Husqvarna 530015933

SCREW 10-24X1-5/8

$

$

Not available

6

Husqvarna 530015932

SCREW-8-16X3/8 (PLASTIC)

$

$

Not available

7

Husqvarna 530069358

TOP COVER SWITCH KIT

Note: (Incl. 3-6 & p.2 #'s 24,76, & 77)

$

$

Not available

8

Husqvarna 530094686

ASSY-CLAMP HARNESS

$

$

Not available

9

Husqvarna 530069347

HANDLE KIT

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

11

Husqvarna 530094981

DRIVE SHAFT HOUSING, TYPE 1
(Superseded to 530094684)

$

$

Not available

11

Husqvarna 530069781

DRIVE SHAFT HOUSING
(Superseded to 530069782)

Note: New part for this IPL

$

$

Not available

12

Husqvarna 530094585

SHAFT-FLEX (53.5")

$

$

Not available

13

Husqvarna 530014222

ASSY-HANDLE

$

$

Not available

14

Husqvarna 530015610

NUT (1/4-20)

$

$

Not available

15

Husqvarna 530094742

CLAMP-ASSIST HANDLE

$

$

Not available

16

Husqvarna 530094638

STRAP-SHOULD.W/WARNING
(Superseded to 530094417)

$

$

Not available

17

Husqvarna 530038908

Shaft Warning Decal

$

$

Not available

18

Husqvarna 530001711

SCREW-1/4-20X1 HEX SOC

$2.49

$

Usually ships in 3-10 days

0

19

Husqvarna 530001642

LOCKWASHER

$

$

Not available

20

Husqvarna 530015328

LOCKWASHER-LOCATOR-TYPE 2

$

$

Not available

21

Husqvarna 530094612

SCREW-10-24 X 7/16 (HEX

$

$

Not available

22

Husqvarna 530016107

SCREW - SHIELD

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 530094568

GEAR BOX ASSY/TYPE 1
(Superseded to 530071781)

$

$

Not available

23

Husqvarna 530095409

GEAR BOX ASS'Y, TYPE 2
(Superseded to 530071585)

Note: New part for this IPL

$

$

Not available

24

Husqvarna 530094616

Screw

$

$

Not available

25

Husqvarna 530094640

SEAL

$

$

Not available

26

Husqvarna 530094639

DUST CUP

$

$

Not available

27

Husqvarna 530094571

WASHER-GRASS

$

$

Not available

28

Husqvarna 530069346

GUARD
(Superseded to 530069256)

Note: (Incl, 29-31)

$

$

Not available

29

Husqvarna 530015037

SCREW

$

$

Not available

30

Husqvarna 530094570

LIMITER-LINE

$7.99

$

In Stock, only 2 left!

0

31

Husqvarna 534235901

NUT 10-24 NYLOC HEX
(Superseded to 530403094)

$

$

Not available

32

Husqvarna 952030139

GREASE 1/2 FL. OZ. TUBE

$

$

Not available

33

Husqvarna 530031111

HEX KEY
(Superseded to 530031159)

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 530031098

HEX KEY 3/16"

$

$

Not available

35

Husqvarna 530094892

Cutting Head Ass'y.
(Superseded to 695000376)

Note: (Incl. 36-42)

$

$

Not available

36

Husqvarna 530094557

HUB ASSEMBLY
(Superseded to 952711550)

$

$

Not available

37

Husqvarna 530094956

SPRING-COMPRESSION

$

$

Not available

38

Husqvarna 530069312

KIT-LOCKING PLATE

$

$

Not available

39

Husqvarna 530015542

Screw

$

$

Not available

40

Husqvarna 530494539

Spool w/Line

$

$

Currently unavailable

41

Husqvarna 530094522

Release Button

$

$

Not available

42

Husqvarna 530094521

COVER,TRIMMY HEAD-26RLC

$

$

Not available

43

Husqvarna 530069779

SHIELD KIT ASS'Y, TYPE 2

Note: (Incl. 44-47) New part for this IPL

$

$

Not available

44

Husqvarna 530095387

LINE LIMITER, TYPE 2

Note: New part for this IPL

$

$

Not available

45

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

Note: New part for this IPL

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 530015820

BOLT, TYPE 2

Note: New part for this IPL

$4.99

$

In Stock, Qty 11

0

47

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

Note: New part for this IPL

$2.49

$

In Stock, Qty 8

0

48

Husqvarna 530015650

SCREW-PINCH CLAMP-TYPE 2

Note: New part for this IPL

$

$

Not available

49

Husqvarna 530016166

DUST CAP - TYPE 2

Note: New part for this IPL

$

$

Not available

50

Husqvarna 530016140

SCREW - LOCATOR - TYPE 2

Note: New part for this IPL

$

$

Not available

51

Husqvarna 530015328

LOCKWASHER-LOCATOR-TYPE 2

Note: New part for this IPL

$

$

Not available
