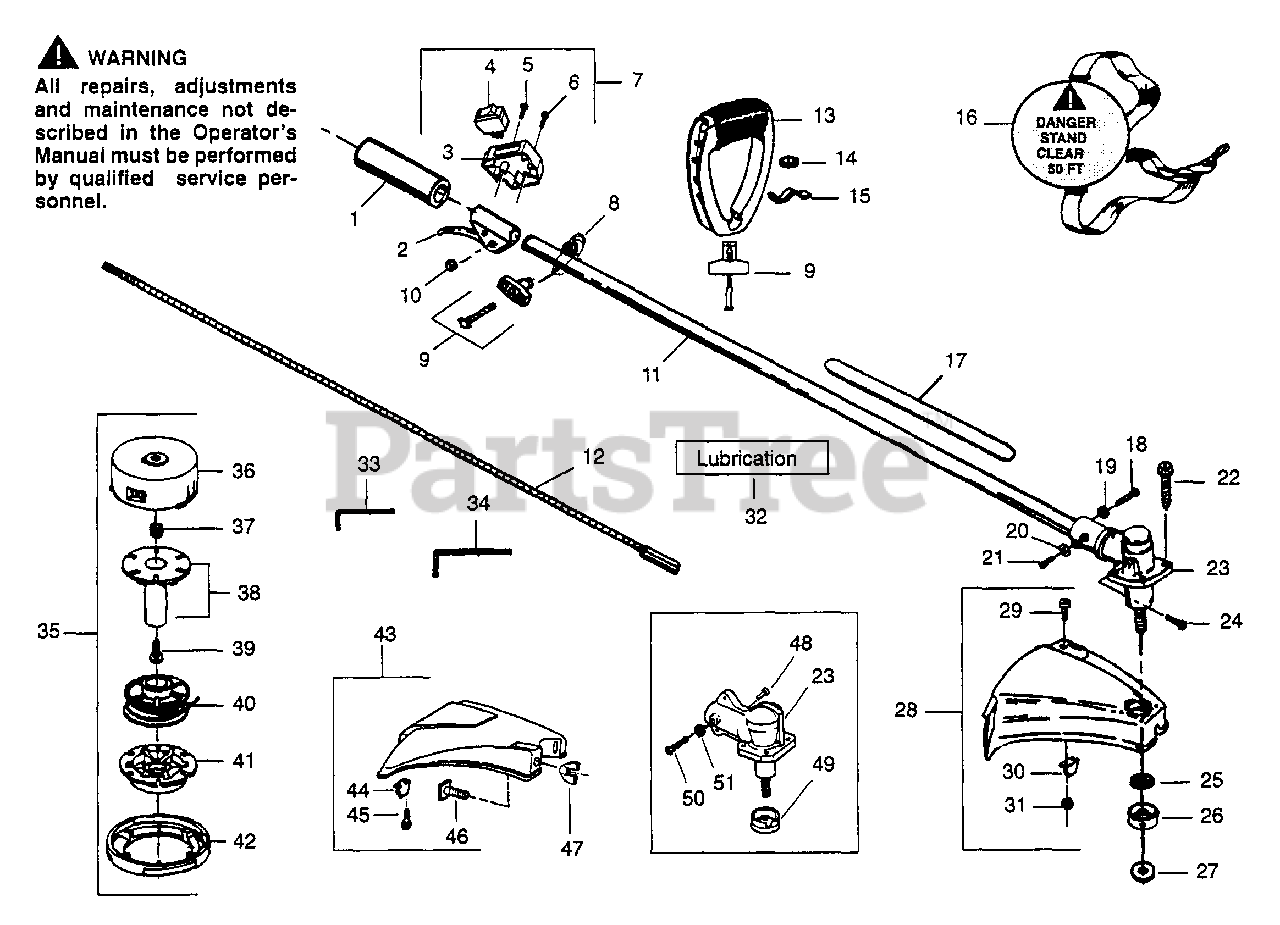

32 L - Husqvarna String Trimmer (1996-10) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Husqvarna 530029762

Grip

$

$

Not available

2

Husqvarna 530014372

Throttle Housing Ass'y.

$

$

Not available

3

Husqvarna 530029758

Switch Cover

$

$

Not available

4

Husqvarna 530429776

Switch

$

$

Currently unavailable

5

Husqvarna 530015933

Screw

$

$

Not available

6

Husqvarna 530015932

Screw

$

$

Not available

7

Husqvarna 530069358

On/Off Switch Kit

Note: (Incl. 3-6 & p.2 #'s 24,76, & 77)

$

$

Not available

8

Husqvarna 530094686

Harness Clamp

$

$

Not available

9

Husqvarna 530069347

"T" Handle

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 530015768

Nut

$3.49

$

In Stock, Qty 12

0

11

Husqvarna 530094981

Drive Shaft Housing Type 1
(Superseded to 530094684)

$

$

Not available

11

Husqvarna 530069781

Drive Shaft Housing Type 2
(Superseded to 530069782)

$

$

Not available

12

Husqvarna 530094585

Drive Shaft

$

$

Not available

13

Husqvarna 530014222

Assist Handle

$

$

Not available

14

Husqvarna 530015610

Nut

$

$

Not available

15

Husqvarna 530094742

Clamp

$

$

Not available

16

Husqvarna 530094638

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

17

Husqvarna 530038908

Shaft Warning Decal

$

$

Not available

18

Husqvarna 530001711

Screw

$2.49

$

In Stock, only 1 left!

0

19

Husqvarna 530001642

Lockwasher

$

$

Not available

20

Husqvarna 530015328

Lockwasher

$

$

Not available

21

Husqvarna 530094612

Screw

$

$

Not available

22

Husqvarna 530016107

Screw

$3.49

$

In Stock, Qty 11

0

23

Husqvarna 530094568

Gear Box Ass'y. Type 1
(Superseded to 530071781)

$

$

Not available

23

Husqvarna 530095409

Gear Box Ass'y. Type 2
(Superseded to 530071585)

$

$

Not available

24

Husqvarna 530094616

Screw

$

$

Not available

25

Husqvarna 530094640

Seal

$

$

Not available

26

Husqvarna 530094639

Dust Cup

$

$

Not available

27

Husqvarna 530094571

Grass Washer

$

$

Not available

28

Husqvarna 530069346

Shield Kit Ass'y. - Type 1
(Superseded to 530069256)

Note: (Incl, 29-31)

$

$

Not available

29

Husqvarna 530015037

Screw

$

$

Not available

30

Husqvarna 530094570

Line Limiter

$7.99

$

In Stock, only 2 left!

0

31

Husqvarna 534235901

Nut
(Superseded to 530403094)

$

$

Not available

32

Husqvarna 952030139

Shaft Lubrication

$

$

Not available

33

Husqvarna 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 530031098

Hex Wrench (3/16)

$

$

Not available

35

Husqvarna 530094892

Cutting Head Ass'y.
(Superseded to 695000376)

Note: (Incl. 36-42)

$

$

Not available

36

Husqvarna 530094557

Hub Ass'y.
(Superseded to 952711550)

$

$

Not available

37

Husqvarna 530094956

Spring

$

$

Not available

38

Husqvarna 530069312

Locking Plate Kit

$

$

Not available

39

Husqvarna 530015542

Screw

$

$

Not available

40

Husqvarna 530494539

Spool w/Line

$

$

Currently unavailable

41

Husqvarna 530094522

Release Button

$

$

Not available

42

Husqvarna 530094521

Cover

$

$

Not available

43

Husqvarna 530069779

Shield Kit Ass'y. - Type 2

Note: (Incl. 44-47)

$

$

Not available

44

Husqvarna 530095387

Line Limiter - Type 2

$

$

Not available

45

Husqvarna 530015805

Screw - Type 2

$3.49

$

In Stock, Qty 13

0

46

Husqvarna 530015820

Bolt - Type 2

$4.99

$

In Stock, only 4 left!

0

47

Husqvarna 530016152

Wingnut - Type 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 9

0

48

Husqvarna 530015650

Screw-Pinch Clamp - Type 2

$

$

Not available

49

Husqvarna 530016166

Dust Cup - Type 2

$

$

Not available

50

Husqvarna 530016140

Screw-Locator - Type 2

$

$

Not available

51

Husqvarna 530015328

Lockwasher-Locator - Type 2

$

$

Not available
