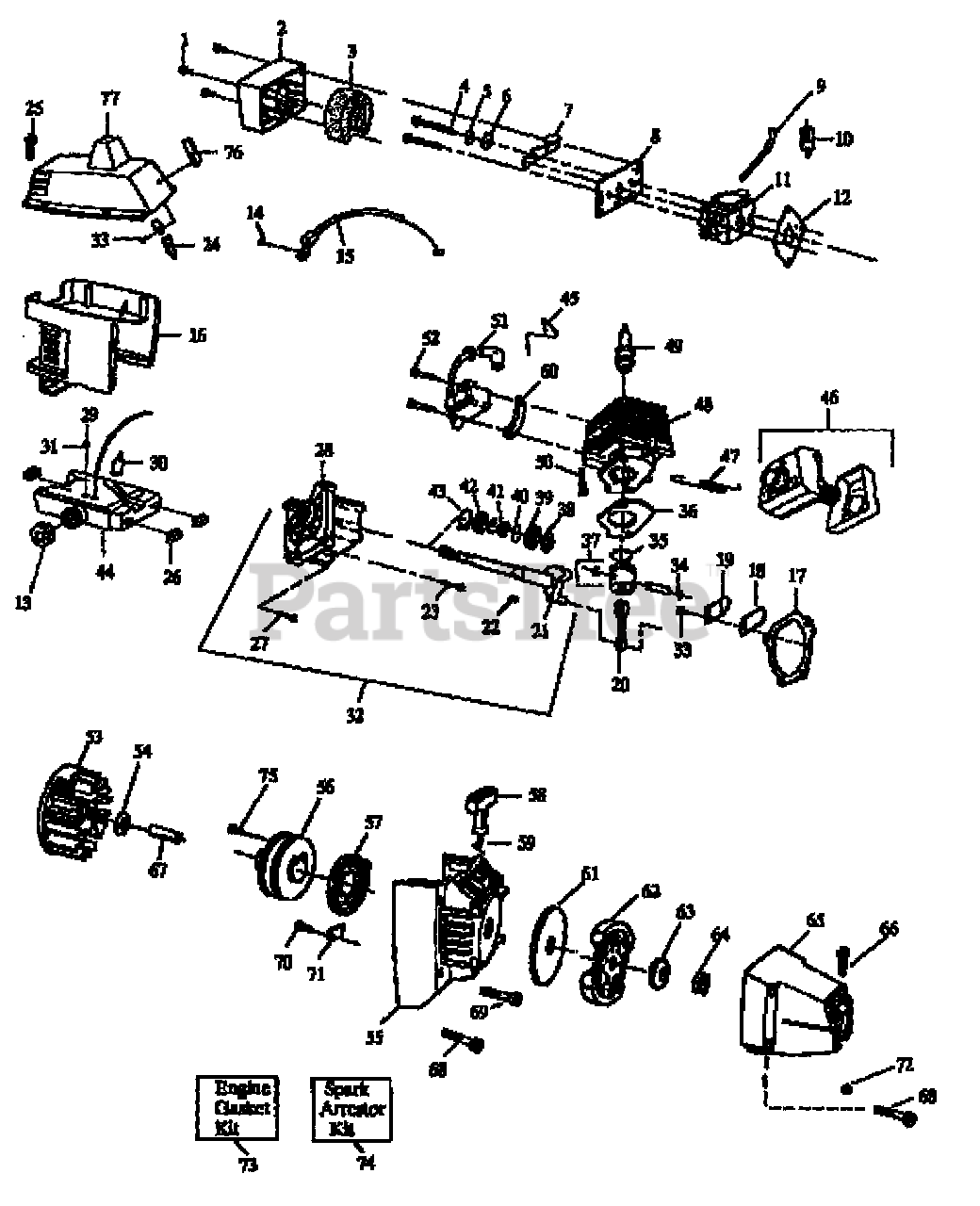

32 LCN - Husqvarna String Trimmer (1991-01) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Husqvarna 530015773

Screw

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 530029727

Air Filter Cover
(Superseded to 530038081)

$

$

Not available

3

Husqvarna 530027530

Air Filter

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 530015849

Screw

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 530027528

Spacer
(Superseded to 530015852)

$

$

Not available

6

Husqvarna 530015254

Wave Washer

$

$

Not available

7

Husqvarna 530029114

Choke Shutter

$

$

Not available

8

Husqvarna 530029632

Air Filter Plate

$

$

Not available

9

Husqvarna 530069338

Fuel Line Kit
(Superseded to 530069247)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 530014199

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 530035259

Carburetor
(Superseded to 545081825)

$

$

Not available

12

Husqvarna 530019164

Carburetor Gasket

Note: Included in Engine Gasket Kit, P/N 530069325

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 530014335

Fuel Cap Ass'y.
(Superseded to 530014347)

$9.49

$

In Stock, Qty 5

0

14

Husqvarna 530015775

Screw

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 530029721

Throttle Cable Ass'y.
(Superseded to 530047041)

$

$

Not available

16

Husqvarna 530029641

Shroud
(Superseded to 530037859)

$39.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530019154

Crankcase/Shroud Gasket

Note: Included in Engine Gasket Kit, P/N 530069325

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 530027593

Reed

$5.99

$

In Stock, only 2 left!

0

19

Husqvarna 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530010960

Connecting Rod Ass'y.

Note: (Incl. Bearings)

$

$

Not available

21

Husqvarna 530010934

Crankshaft Ass'y.

$

$

Not available

22

Husqvarna 530015126

Flywheel Key

$

$

Not available

23

Husqvarna 530015772

Screw

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 530029761

Switch Retainer

$

$

Not available

25

Husqvarna 530015886

Screw

$3.49

$

In Stock, Qty 17

0

26

Husqvarna 530029760

Isolator

$

$

Not available

27

Husqvarna 530015771

Screw

$3.49

$

In Stock, only 4 left!

0

28

Husqvarna 530014016

Crankcase Ass'y.

Note: (Incl. 39, 40, 41, & 42)

$

$

Not available

29

Husqvarna 530026119

Check Valve

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 530029717

Filter Element

$

$

Not available

31

Husqvarna 530029696

Retainer

$

$

Not available

32

Husqvarna 530014015

Crankcase & Crankshaft Ass'y
(Superseded to 530071705)

Note: (Incl. #38, 39, 40, 41, 42 & 43)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530015241

Screw
(Superseded to 545227101)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 530015162

Piston Pin Retainer

$3.49

$

In Stock, only 2 left!

0

35

Piston Ring

$

$

Not available

Husqvarna 530027369

Piston Ring (Model GT26)

$

$

Not available

Husqvarna 530025875

Piston Ring (Model GT32)

$

$

Not available

36

Husqvarna 530019178

Cylinder Gasket
(Superseded to 530019267)

Note: Included in Engine Gasket Kit, P/N 530069325

$4.99

$

In Stock, only 4 left!

0

37

Piston Kit

Note: (Incl. 34, 35 & pin)

$

$

Not available

Husqvarna 530069240

Piston Kit (Model GAS)

$

$

Not available

Husqvarna 530069277

Piston Kit (Model GT32)

$

$

Not available

38

Husqvarna 530015788

Spacer

$

$

Not available

39

Husqvarna 530032103

Inner Bearing

$

$

Not available

40

Husqvarna 530015757

Retaining Ring

$

$

Not available

41

Husqvarna 530019158

Crankshaft Seal

$

$

Not available

42

Husqvarna 530320102

Outer Bearing

$

$

Currently unavailable

43

Husqvarna 530015789

Crankshaft Retaining Ring

$

$

Not available

44

Husqvarna 530014278

Fuel Tank Ass'y.

Note: (Incl. 29-31)

$

$

Not available

45

Husqvarna 530029759

Switch Wire Form

$

$

Not available

46

Husqvarna 530089257

Muffler Kit

$1.99

$

In Stock, only 1 left!

0

47

Husqvarna 530024903

Muffler Attachment Spring
(Superseded to 530036409)

$

$

Not available

48

Cylinder

$

$

Not available

Husqvarna 530012247

Cylinder (Model GT26)

$

$

Not available

Husqvarna 530012238

Cylinder (Model GT82)
(Superseded to 530071581)

$

$

Not available

49

Spark Plug

$

$

Not available

Husqvarna 530030075

Spark Plug (Model GF26 (RCJ-SY))

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 530030073

Spark Plug (Model GF32 (CJ-8Y))

$

$

Not available

50

Husqvarna 530001624

Screw

$

$

Not available

51

Husqvarna 530039146

Ignition Module Kit

$

$

Not available

52

Screw

$

$

Not available

Husqvarna 530015776

Screw (Model GT26)

$

$

Not available

Husqvarna 530015128

Screw (Model GT32)
(Superseded to 530015816)

$

$

Not available

53

Husqvarna 530039136

Flywheel Ass'y.
(Superseded to 530039189)

$

$

Not available

54

Husqvarna 530347987

Washer
(Superseded to 530016030)

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 530014320

Fan Housing

$

$

Not available

56

Husqvarna 530069335

Starter Pulley Kit
(Superseded to 530071387)

Note: (Incl. 75)

$

$

Not available

57

Husqvarna 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

58

Husqvarna 530029636

Starter Handle
(Superseded to 530150318)

$5.99

$

In Stock, Qty 14

0

59

Husqvarna 530069339

Rope Kit
(Superseded to 530069232)

$5.99

$

In Stock, only 2 left!

0

60

Husqvarna 530027525

Spacer (Model GT26 Only)

$1.49

$

In Stock, only 1 left!

0

61

Husqvarna 530094189

Clutch Washer

$6.99

$

In Stock, Qty 8

0

62

Husqvarna 530069336

Clutch Ass'y. Kit
(Superseded to 530069254)

$

$

Not available

63

Husqvarna 530015796

Washer

$

$

Not available

64

Husqvarna 530001733

Nut

$

$

Not available

65

Husqvarna 530014324

Clutch Housing

$22.99

$

In Stock, only 1 left!

0

66

Husqvarna 530015767

Screw

$3.49

$

In Stock, only 2 left!

0

67

Husqvarna 530027511

Spacer

$14.99

$

Usually ships in 3-10 days

0

68

Husqvarna 530015770

Screw

$

$

Not available

69

Husqvarna 530015769

Screw

$

$

Not available

70

Husqvarna 530015496

Screw

$

$

Not available

71

Husqvarna 530027523

Retainer

$4.99

$

In Stock, only 1 left!

0

72

Husqvarna 530015768

Locknut

$3.49

$

In Stock, Qty 12

0

73

Husqvarna 530069325

Engine Gasket Kit
(Superseded to 530069302)

Note: (Includes ref. nos. 11, 17 and 36)

$

$

Not available

74

Husqvarna 952701612

Spark Arrestor Kit

$

$

Not available

75

Husqvarna 530015823

Screw
(Superseded to 530016080)

$3.49

$

In Stock, only 3 left!

0

76

Husqvarna 530029757

Switch Lever

$

$

Not available

77

Husqvarna 530029770

Cylinder Cover
(Superseded to 530069358)

$

$

Not available

Husqvarna 530029896

Instruction Decal

Note: Not Shown

$

$

Not available

Husqvarna 530061384

Carton

Note: Not Shown

$

$

Not available
