32 R - Husqvarna String Trimmer (1990-01) ENGINE Parts Diagram

String Trimmer

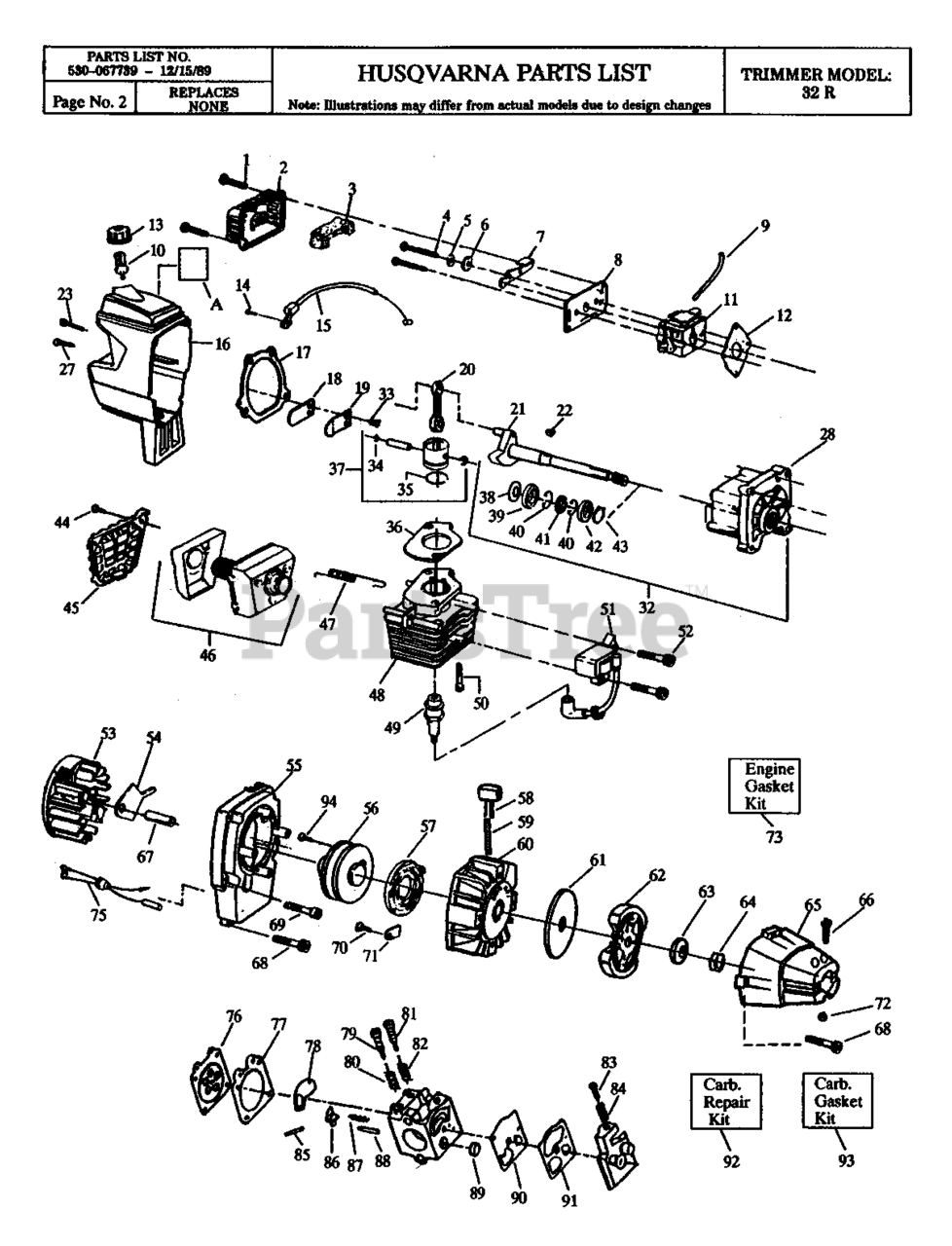

ENGINE Parts Diagram

  • Title

27

Husqvarna 530045771

Screw

$

$

Currently unavailable

72

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

8

Husqvarna 530027527

PLATE-AIR FILTER MTG.

$

$

Not available

45

Husqvarna 530027781

GUARD-MUFFLER

$

$

Not available

33

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.49

$

In Stock, Qty 14

0

66

Husqvarna 530015767

SCREW-10-24 X 1-3/8 (UN

$3.49

$

Usually ships in 3-10 days

0

75

Husqvarna 530027690

ASSY-LEAD WIRE/GROMMET

$

$

Not available

4

Husqvarna 530015849

SCREW

$3.49

$

In Stock, only 1 left!

0

12

Husqvarna 530019156

GASKET-CARBURETOR

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530014015

ASSY-C'CASE & C'SHAFT
(Superseded to 530071705)

$37.99

$

Usually ships in 3-10 days

0

83

Husqvarna 530035203

SCREW-IDLE SPEED

$

$

Not available

92

Husqvarna 530035260

REPAIR KIT

$25.99

$

In Stock, only 1 left!

0

84

Husqvarna 530035208

SPRING-IDLE SPEED
(Superseded to 530035121)

$

$

Not available

70

Husqvarna 530015496

SCREW-10-16 X 1/2 HI-LO

$

$

Not available

48

Husqvarna 530012238

CYLINDER
(Superseded to 530071581)

$

$

Not available

85

Husqvarna 530035028

PIN
(Superseded to 505520125)

$7.99

$

Usually ships in 3-10 days

0

61

Husqvarna 530094189

WASHER-CLUTCH

$6.99

$

In Stock, Qty 7

0

69

Husqvarna 530015769

SCREW-10-24X1-3/8-TAPTI

$

$

Not available

71

Husqvarna 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 530015717

SCREW-10-16X9/16SLTD.PH

$

$

Not available

67

Husqvarna 530027511

SPACER-CLUTCH

$14.99

$

Usually ships in 3-10 days

0

60

Husqvarna 530014114

ASSY-PULLEY HSG (ORANGE
(Superseded to 530014009)

$

$

Not available

22

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

77

Husqvarna 530035151

GASKET-METER DIAP

$4.99

$

In Stock, Qty 7

0

73

Husqvarna 530069276

KIT-GASKET

$

$

Not available

43

Husqvarna 530015789

RING-RETAINING (SHAFT)

$

$

Not available

58

Husqvarna 530027569

HANDLE-STARTER

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530069247

HOSE. FUEL

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 530010960

ASS'Y-CONNECTING ROD

$

$

Not available

1

Husqvarna 530015773

SCREW-10-24 X 13/16

$

$

Not available

52

Husqvarna 530015128

SCREW-COIL MTG
(Superseded to 530015816)

$

$

Not available

89

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$

$

Not available

78

Husqvarna 530035147

GASKET-CIRCUIT PLATE
(Superseded to 501781301)

$

$

Not available

49

Husqvarna 530030058

SPARK PLUG (RCJ-8)

$4.99

$

In Stock, Qty 5

0

87

Husqvarna 530035188

SPRING-METERING LEVER

$4.99

$

In Stock, Qty 9

0

2

Husqvarna 530027529

COVER-FILTER

$

$

Not available

36

Husqvarna 530019161

GASKET-CYLINDER
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

91

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$13.99

$

In Stock, only 2 left!

0

53

Husqvarna 530039136

ASSY-FLYWHEEL
(Superseded to 530039189)

$

$

Not available

81

Husqvarna 530035141

NEEDLE - IDLE

$

$

Not available

65

Husqvarna 530014115

ASSY-CLUTCH HSG (ORANGE
(Superseded to 530014017)

$43.99

$

Usually ships in 3-10 days

0

38

Husqvarna 530015788

SPACER-BEARING

$

$

Not available

15

Husqvarna 530027681

CABLE-THROTTLE(BULLHORN
(Superseded to 530095152)

$14.99

$

Usually ships in 3-10 days

0

63

Husqvarna 530015796

WASHER-BELLEVILLE

$

$

Not available

16

Husqvarna 530029188

Shroud & Tank Ass'y.

$

$

Not available

34

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

40

Husqvarna 530015787

RING-RETAINING

$

$

Not available

57

Husqvarna 530027531

SPRING-STARTER
(Superseded to 545008015)

$7.99

$

In Stock, Qty 5

0

54

Husqvarna 530027572

COUNTERWEIGHT FLYWL 26RLC
(Superseded to 530016030)

$

$

Not available

19

Husqvarna 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

79

Husqvarna 530035142

HI-SPEED NEEDLE
(Superseded to 501782201)

$

$

Not available

35

Husqvarna 530025875

RING-PISTON (HOOKED)

$

$

Not available

90

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$37.99

$

In Stock, Qty 18

0

80

Husqvarna 530035036

Hi Speed Needle Spring

$

$

Not available

93

Husqvarna 530035185

KIT-KWIK REPAIR

$

$

Not available

62

Husqvarna 530069254

KIT-CLUTCH ASS'Y

$

$

Not available

41

Husqvarna 530019158

SEAL-CRANKSHAFT

$

$

Not available

28

Husqvarna 530014016

Crankcase Ass'y.

$

$

Not available

17

Husqvarna 530019154

GASKET-C'CASE/SHROUD

$

$

Not available

Husqvarna 530014175

Carton Contents Bag

$

$

Not available

10

Husqvarna 530010897

ASSY-FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

94

Husqvarna 530015823

SCREW-6-19X9/32 PAN/SEM
(Superseded to 530016080)

$3.49

$

In Stock, Qty 20+

0

88

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$26.99

$

In Stock, Qty 6

0

64

Husqvarna 530001733

NUT

$

$

Not available

86

Husqvarna 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

14

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$3.49

$

Usually ships in 3-10 days

0

51

Husqvarna 530039134

MODULE-IGNITION

$

$

Not available

13

Husqvarna 530010807

USE 5300107-29
(Superseded to 530014347)

$9.49

$

In Stock, Qty 10

0

3

Husqvarna 530027530

AIR FILTER

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 530035259

CARBURETOR (WA-199)
(Superseded to 545081825)

$

$

Not available

59

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 3 left!

0

47

Husqvarna 530024903

SPRING
(Superseded to 530036409)

$

$

Not available

5

Husqvarna 530027528

SPACER-CHOKE
(Superseded to 530015852)

$

$

Not available

50

Husqvarna 530015239

SCREW-1/4-20 X 13/16

$

$

Not available

42

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

18

Husqvarna 530027593

VALVE-REED

$5.99

$

In Stock, only 1 left!

0

76

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

$56.99

$

In Stock, Qty 9

0

7

Husqvarna 530027526

SHUTTER-CHOKE

$

$

Not available

Husqvarna 530061244

Carton

$

$

Not available

55

Husqvarna 530029473

HOUSING-FAN (ORANGE)

$

$

Not available

6

Husqvarna 530015254

WASHER

$

$

Not available

56

Husqvarna 530069291

KIT-STARTER PULLEY
(Superseded to 530071387)

$

$

Not available

A

Husqvarna 530029409

USE 5300294-07
(Superseded to 530029407)

$

$

Not available

46

Husqvarna 530069257

KIT-MUFFLER ASS'Y
(Superseded to 530069310)

$

$

Not available

39

Husqvarna 530032103

Bearing-R8 (inner)

$

$

Not available

21

Husqvarna 530010934

ASSY-CRANKSHAFT

$

$

Not available

82

Husqvarna 530035023

SPRING-NEEDLE FUEL MIX

$

$

Not available

23

Husqvarna 530015772

SCREW-10-24 X 1" (TAP.)

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 530015770

Screw

$

$

Not available

37

Husqvarna 530069277

KIT-PISTON (32CC)

$

$

Not available
