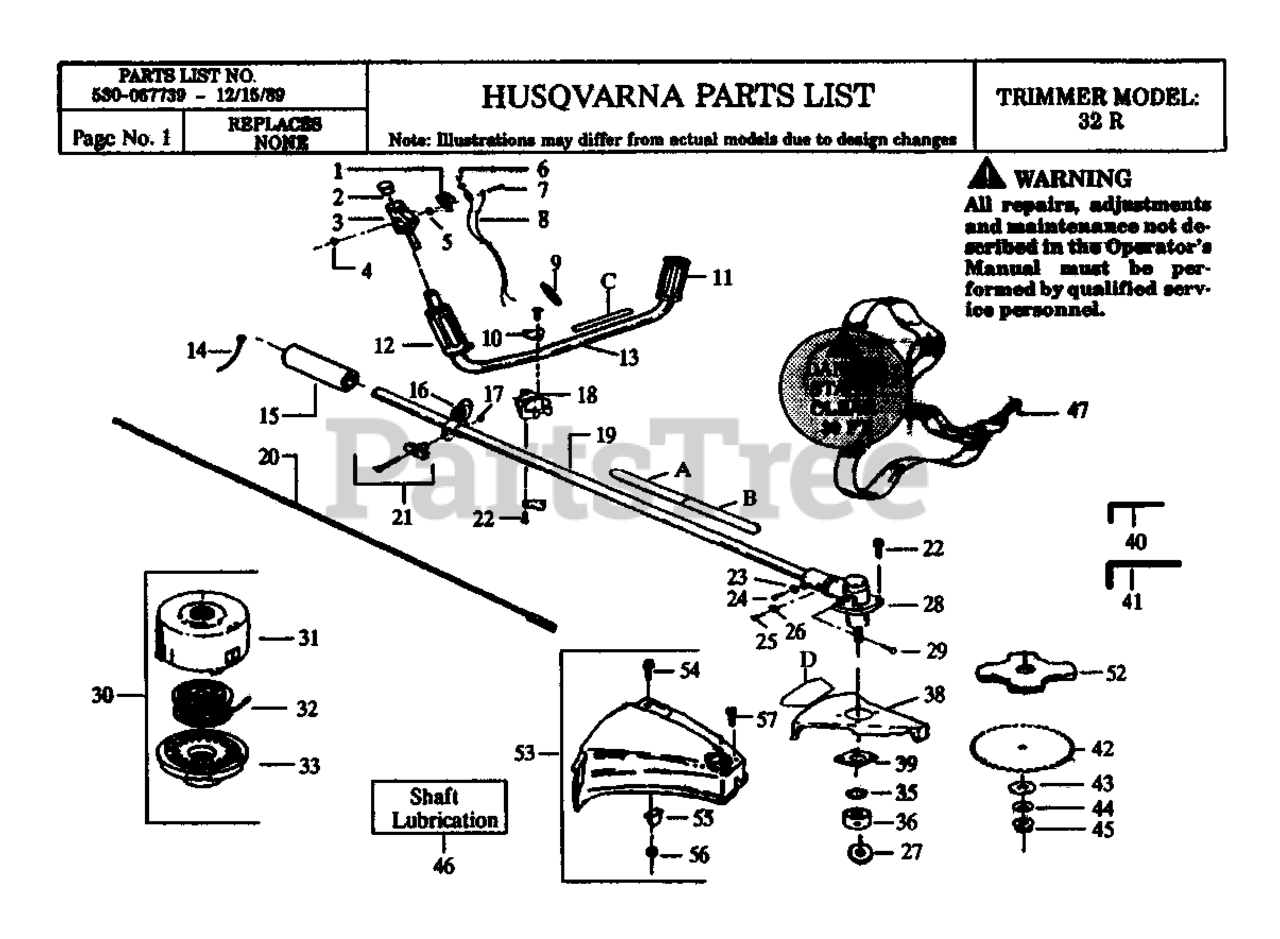

32 R - Husqvarna String Trimmer (1990-01) SHAFT & HANDLE Parts Diagram

String Trimmer

SHAFT & HANDLE Parts Diagram

  • Title

6

Husqvarna 530023575

NUT SWITCH MOUNT
(Superseded to 530002582)

$

$

Not available

41

Husqvarna 530031098

HEX KEY 3/16"

$

$

Not available

3

Husqvarna 530010965

Throttle Lever Ass'y. w/ Lock

$

$

Not available

31

Husqvarna 530094759

ASSY-HUB SHAFT & BAL AR
(Superseded to 952711550)

$

$

Not available

30

Husqvarna 952708529

Cutting Head Ass'y.
(Superseded to 952715541)

$

$

Not available

2

Husqvarna 530027588

CAP-HANDLEBAR

$

$

Not available

11

Husqvarna 530027766

HANDLEGRIP

$

$

Not available

27

Husqvarna 530094571

WASHER-GRASS

$

$

Not available

13

Husqvarna 530014103

H'BAR-OFFSET (W/DECAL)

$

$

Not available

10

Husqvarna 530094572

BRACKET-HANDLEBAR

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 530027726

Wire Harness Ass'y

$

$

Not available

32

Husqvarna 952708528

Spool w/Line

$

$

Not available

16

Husqvarna 530094598

ASSY-CLAMP HARNESS
(Superseded to 530094686)

$

$

Not available

47

Husqvarna 530094638

STRAP-SHOULD.W/WARNING
(Superseded to 530094417)

$

$

Not available

1

Husqvarna 530027900

Kill Switch Bracket

$

$

Not available

38

Husqvarna 530094633

Shield

$

$

Not available

44

Husqvarna 530015492

WASHER-SPRING BELLEVIL
(Superseded to 530016240)

$4.99

$

In Stock, only 2 left!

0

A

Husqvarna 530029167

Decal-Shaft Warning (Upper)

$

$

Not available

12

Husqvarna 530027736

Handguard Grip

$

$

Not available

15

Husqvarna 530027706

NEEDS DESCRIPTION

$

$

Not available

Husqvarna 530067681

Operator's Manual

$

$

Not available

14

Husqvarna 530091426

TIE STRAP

$

$

Not available

23

Husqvarna 530015328

LOCKWASHER-LOCATOR-TYPE 2

$

$

Not available

D

Husqvarna 530027755

DECAL-BLADE DIRECT(FR/E

$

$

Not available

21

Husqvarna 530069252

KIT "T" HANDLE
(Superseded to 530069347)

$5.99

$

Usually ships in 3-10 days

0

B

Husqvarna 530029168

Decal-Shaft Warning (Lower)

$

$

Not available

5

Husqvarna 530027689

SPACER-REMOTE KILL SWIT

$

$

Not available

29

Husqvarna 580094616

Screw

$

$

Currently unavailable

56

Husqvarna 530015653

LOCKNUT-(10-24)
(Superseded to 530403094)

$

$

Not available

55

Husqvarna 530094570

LIMITER-LINE

$7.99

$

In Stock, only 2 left!

0

24

Husqvarna 530094612

SCREW-10-24 X 7/16 (HEX

$

$

Not available

42

Husqvarna 952708522

Brush Blade -- 8"

$

$

Not available

54

Husqvarna 530015037

SCREW

$

$

Not available

4

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

26

Husqvarna 530001642

LOCKWASHER

$

$

Not available

17

Husqvarna 580015197

Nut

$

$

Currently unavailable

39

Husqvarna 530027615

PLATE-SHIELD RETENTION

$13.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530094568

GEAR BOX ASSY/TYPE 1
(Superseded to 530071781)

$

$

Not available

20

Husqvarna 530094566

SHAFT-FLEX (57").

$96.99

$

Usually ships in 3-10 days

0

19

Husqvarna 530094757

Drive Shaft Housing

$

$

Not available

52

Husqvarna 952708524

Weed Blade

$

$

Not available

36

Husqvarna 530094639

DUST CUP

$

$

Not available

33

Husqvarna 530094494

COVER

$

$

Not available

18

Husqvarna 530012207

Handlebar Clamp

$

$

Not available

25

Husqvarna 530001711

SCREW-1/4-20X1 HEX SOC

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 530094640

SEAL

$

$

Not available

57

Husqvarna 530015790

SCREW 1/4-10 PLASTITE
(Superseded to 530016107)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 530030102

GREASE-1/2 FL. OZ.
(Superseded to 952708514)

$

$

Not available

9

Husqvarna 530027893

TERMINAL LOCK

$

$

Not available

22

Husqvarna 530015791

SCREW

$

$

Not available

45

Husqvarna 530015793

NUT-FLANGE (LH)

$5.99

$

In Stock, Qty 12

0

53

Husqvarna 530069256

KIT-SHIELD

$

$

Not available

43

Husqvarna 530015792

WASHER-FLAT.

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 530015800

SCREW 6-19 X 3/8 (PLAST

$

$

Not available

C

Husqvarna 530027884

Decal-Handlebar Warning

$

$

Not available

40

Husqvarna 530031111

HEX KEY
(Superseded to 530031159)

$3.49

$

In Stock, only 1 left!

0
