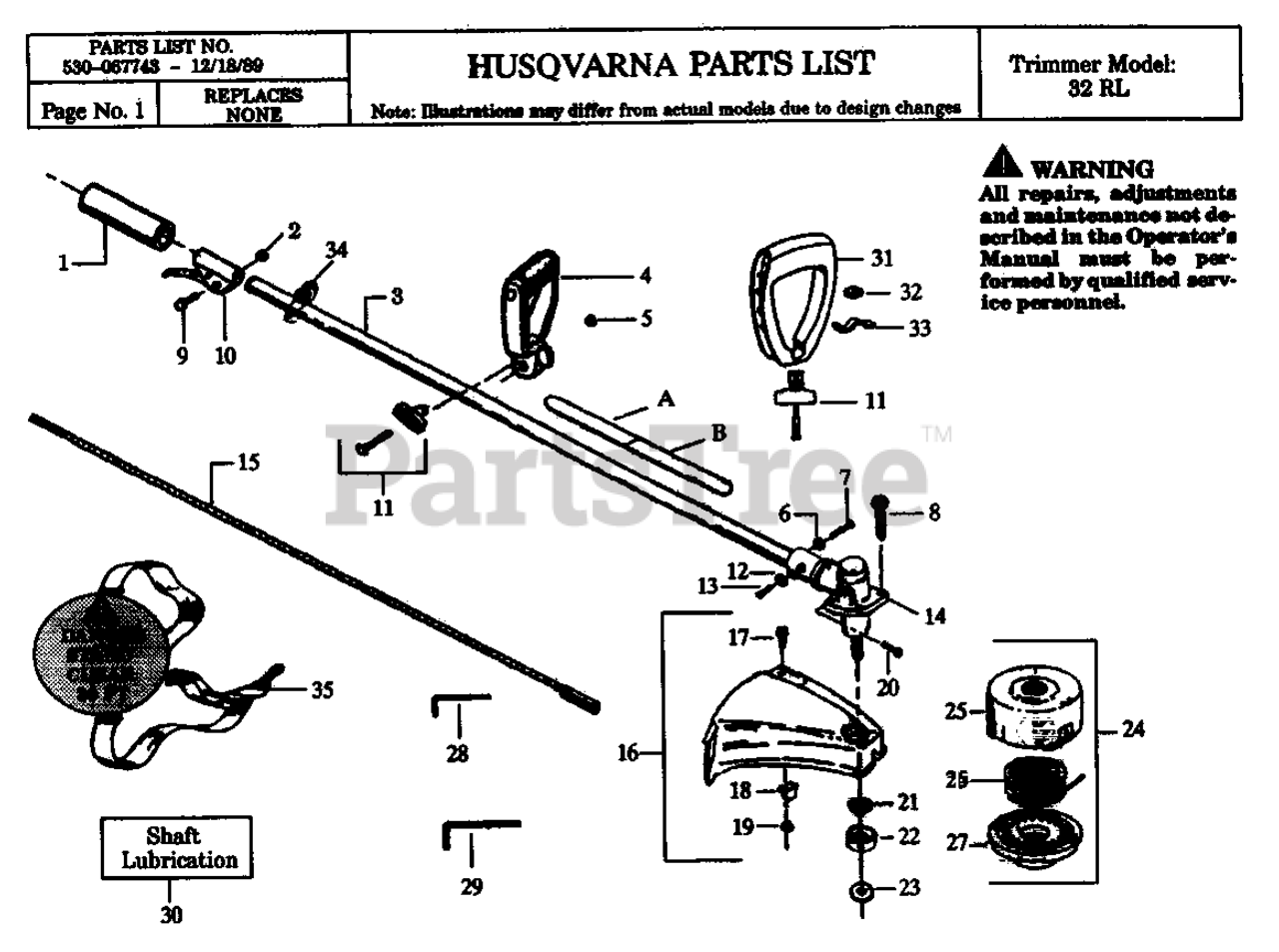

32 RL - Husqvarna String Trimmer (1990-01) SHAFT & HANDLE Parts Diagram

String Trimmer

SHAFT & HANDLE Parts Diagram

  • Title

25

Husqvarna 530094759

ASSY-HUB SHAFT & BAL AR
(Superseded to 952711550)

$

$

Not available

20

Husqvarna 530094616

Screw

$

$

Not available

32

Husqvarna 530015610

NUT (1/4-20)

$

$

Not available

3

Husqvarna 530094898

ASSY-DRIVE SHAFT HSG (5

$

$

Not available

A

Husqvarna 530029165

Shaft Warning Decal (Upper)

$

$

Not available

34

Husqvarna 530094686

ASSY-CLAMP HARNESS

$

$

Not available

27

Husqvarna 530094494

COVER

$

$

Not available

530 06 77-42

Husqvarna 530067742

Operator's Manual

$

$

Not available

13

Husqvarna 530094612

SCREW-10-24 X 7/16 (HEX

$

$

Not available

6

Husqvarna 530015197

NUT

$3.49

$

In Stock, only 3 left!

0

15

Husqvarna 530094585

SHAFT-FLEX (53.5")

$

$

Not available

8

Husqvarna 530001711

SCREW-1/4-20X1 HEX SOC

$2.49

$

Usually ships in 3-10 days

0

29

Husqvarna 530031098

HEX KEY 3/16"

$

$

Not available

12

Husqvarna 530015328

LOCKWASHER-LOCATOR-TYPE 2

$

$

Not available

17

Husqvarna 530015037

SCREW

$

$

Not available

35

Husqvarna 530094638

STRAP-SHOULD.W/WARNING
(Superseded to 530094417)

$

$

Not available

1

Husqvarna 530027595

GRIP-DRIVE SHAFT
(Superseded to 530029445)

$

$

Not available

10

Husqvarna 530010959

ASSY-THROTTLE HOUSING

$

$

Not available

2

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

21

Husqvarna 530094640

SEAL

$

$

Not available

7

Husqvarna 530001542

Lockwasher

$

$

Currently unavailable

33

Husqvarna 530094742

CLAMP-ASSIST HANDLE

$

$

Not available

31

Husqvarna 530014222

ASSY-HANDLE

$

$

Not available

18

Husqvarna 530094570

LIMITER-LINE

$7.99

$

In Stock, only 2 left!

0

B

Husqvarna 530029166

Shaft Warning Decal (Lower)

$

$

Not available

4

Husqvarna 530094898

ASSY-DRIVE SHAFT HSG (5

$

$

Not available

23

Husqvarna 530094571

WASHER-GRASS

$

$

Not available

16

Husqvarna 530069256

KIT-SHIELD

$

$

Not available

30

Husqvarna 530030102

GREASE-1/2 FL. OZ.
(Superseded to 952708514)

$

$

Not available

19

Husqvarna 530015653

LOCKNUT-(10-24)
(Superseded to 530403094)

$

$

Not available

28

Husqvarna 530031111

HEX KEY
(Superseded to 530031159)

$3.49

$

In Stock, only 1 left!

0

22

Husqvarna 530094639

DUST CUP

$

$

Not available

24

Husqvarna 952708527

Cutting Head Ass'y.
(Superseded to 695000376)

$

$

Not available

5

Husqvarna 530010957

Handle Ass'y.

$

$

Not available

9

Husqvarna 530015790

SCREW 1/4-10 PLASTITE
(Superseded to 530016107)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 952708528

Spool w/Line

$

$

Not available

11

Husqvarna 530069252

KIT "T" HANDLE
(Superseded to 530069347)

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530094568

GEAR BOX ASSY/TYPE 1
(Superseded to 530071781)

$

$
