320 BVR (41BS320G734) - Ryobi Blower Vacuum Engine Parts Parts Diagram

Blower Vacuum

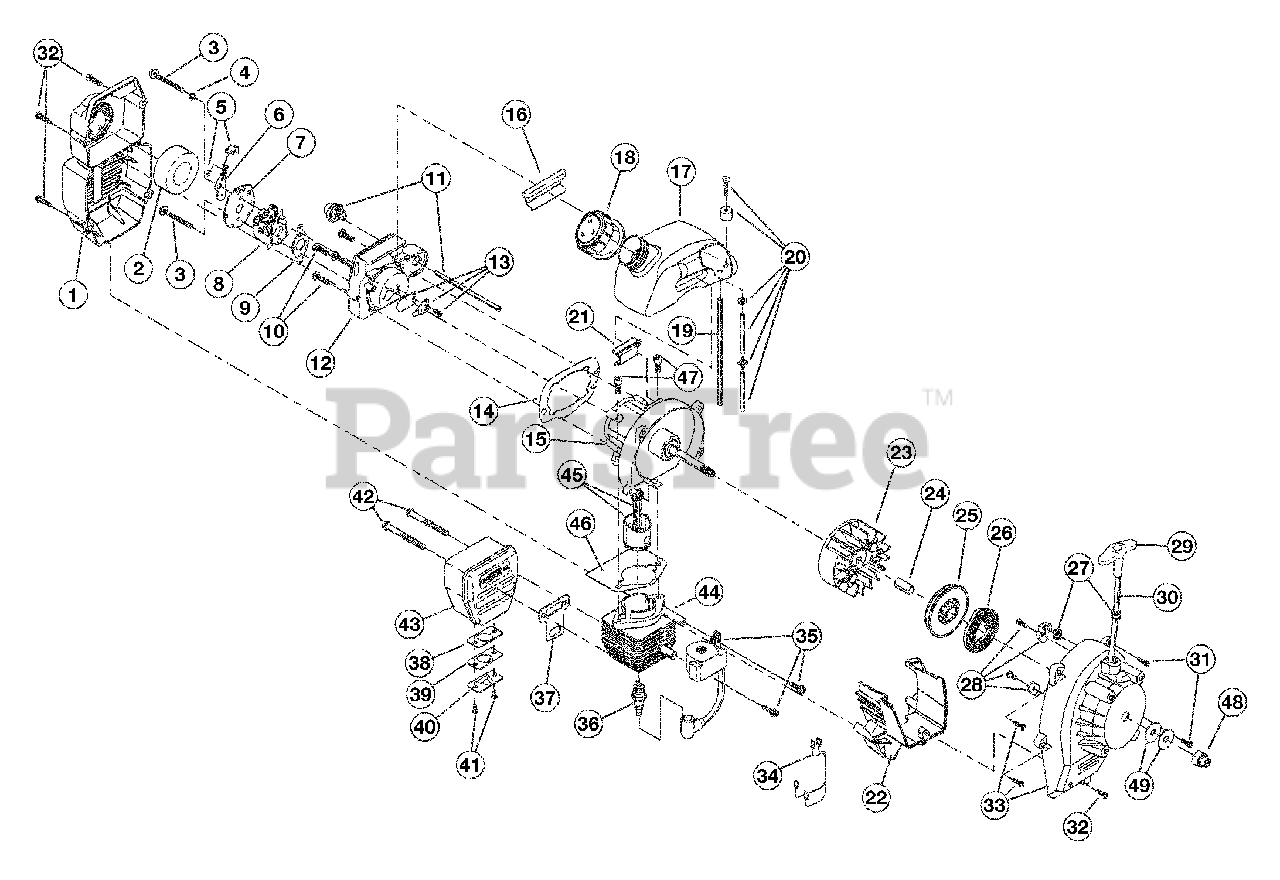

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 32)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-04418

Choke Lever Assembly

Note: (includes 5)

$10.99

$

Usually ships in 3-6 days

0

7

MTD 753-04419

Choke Lever and Plate

Note: (includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10,13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 753-04328

Crank Case Service Assembly

Note: (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04310

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$18.99

$

In Stock, Qty 18

0

19

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04409

Shroud Extension
(Superseded to 753-05091)

Note: (includes 32)

$17.99

$

Usually ships in 3-6 days

0

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

24

MTD 753-04481

Spacer
(Superseded to 750-04245)

$3.99

$

Usually ships in 3-6 days

0

25

MTD 753-1199

Recoil Pulley Assembly

$22.99

$

In Stock, Qty 5

0

26

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

29

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

30

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

31

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

32

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

33

MTD 791-181931

Starter Housing Assembly

Note: (includes 25-32)

$

$

Not available

34

MTD 791-182402

Wire Lead Assembly

$12.99

$

Usually ships in 3-6 days

0

35

MTD 753-04109

Module Assembly

$

$

Not available

36

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

37

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

38

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

39

MTD 753-04690

Plate

$

$

Not available

40

MTD 753-04691

Hood

$

$

Not available

41

MTD 753-04315

Screw
(Superseded to 753-04110)

$

$

Not available

42

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

43

MTD 753-04618

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 37-42)

$104.99

$

Usually ships in 3-6 days

0

44

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 46 & 47)

$78.99

$

In Stock, only 1 left!

0

45

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

46

MTD 753-1197

Cylinder Gasket

$

$

Not available

47

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

48

MTD 791-181524

Crankshaft Extension

$

$

Not available

49

MTD 791-182368

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

MTD 753-1209

Piston Ring

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04395

Short Block Assembly

Note: Not Shown; (includes 10, 15, 36, 44-47)

$

$

Not available
