320 E (UT-35012-A) - Homelite Snow Thrower Engine Parts Diagram

Snow Thrower

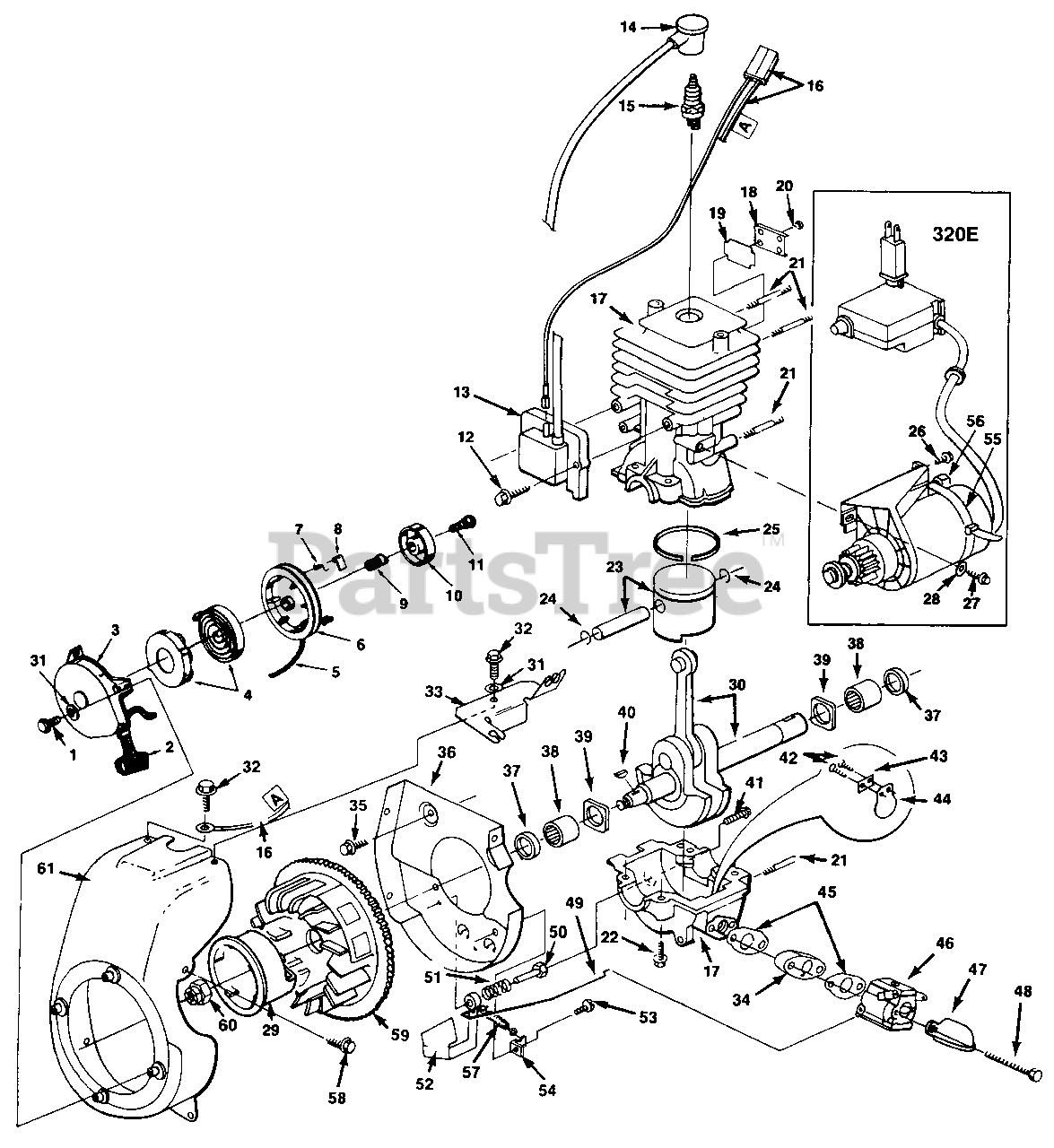

Engine Parts Diagram

  • Title

Homelite JA518835

REWIND STARTER ASSEMBLY-(Complete)

Note: Incl. #2 thru 11

$

$

Currently unavailable

1

Homelite 80044

SCREW- Hex hd 1/4-20 x 1/2"

$

$

Not available

2

Homelite JA546003

HANDLE ASSEMBLY

$

$

Currently unavailable

3

Homelite JA181483

STARTER HOUSING ASSEMBLY

$

$

Currently unavailable

4

Homelite JA500790

SPRING & KEEPER ASSEMBLY

$

$

Not available

5

Homelite JA569945

ROPE- Starter 75"

$9.99

$

Usually ships in 3-7 days

0

6

Homelite JA535031

PULLEY

$

$

Currently unavailable

7

Homelite JA545999

SPRING- Dog

$

$

Currently unavailable

8

Homelite JA313663

DOG

$

$

Currently unavailable

9

Homelite JA546001

SPRING- Brake

$

$

Currently unavailable

10

Homelite JA546002

RETAINER

$

$

Currently unavailable

11

Homelite JA546000

SCREW

$

$

Currently unavailable

12

Homelite JA416908

SCREW-Thd. rolling
(Superseded to JA416911)

$

$

Currently unavailable

13

Homelite A97557A

MODULE-Ignition

$

$

Currently unavailable

14

Homelite A33055

COVER-Spark

$

$

Not available

15

Homelite 96455

SPARK PLUG (CJ8Y)

$

$

Not available

16

Homelite A95577

LEAD-Electrical

$

$

Currently unavailable

17

Homelite A95542A

CYLINDER & CRANKCASE

Note: Incl. 18, 19, 20, 21, & 22

$

$

Currently unavailable

18

Homelite 96220

COVER- Cylinder

$

$

Not available

19

Homelite 96221

GASKET

$

$

Not available

20

Homelite 95922

SCREW- Thd. rolling 8-32 x 5/16
(Superseded to 660624001)

$

$

Not available

21

Homelite 97375

STUD- Thd. rolling

$

$

Not available

22

Homelite 88071

SCREW- Sems hex hd 1/4-20 x 1 1/2

$

$

Not available

23

Homelite A95598

PISTON & PIN ASSEMBLY

Note: Incl. 24 & 25

$

$

Currently unavailable

24

Homelite 64742

RING- Pin retaining

$

$

Not available

25

Homelite 95512

PISTON RING

$

$

Not available

26

Homelite JA403756

SCREW- 10-24 x 3/4

$

$

Currently unavailable

27

Homelite JA990764

SCREW- (320E)

$

$

Currently unavailable

28

Homelite JA990763

WASHER- (320E)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 00451

HUB- Starter
(Superseded to JA994052)

$

$

Not available

30

Homelite A97725A

CRANKSHAFT ASSEMBLY

$

$

Currently unavailable

31

Homelite 83009

WASHER-Lock 1/4"

$4.99

$

Usually ships in 3-7 days

0

32

Homelite 82456

SCREW-Thd forming 1/4-20 x 1"

$

$

Not available

33

Homelite 97830

BRACKET

$7.49

$

Usually ships in 3-7 days

0

34

Homelite 00356

SPACER- Carburetor

$

$

Not available

35

Homelite 82459

SCREW-Thd forming 10-24 x 1/2"

$

$

Not available

36

Homelite 955003

PLATE-Fan housing

$

$

Currently unavailable

37

Homelite 95510

SEAL-Shaft

$

$

Not available

38

Homelite 76167S

BEARING- Needle

$

$

Currently unavailable

39

Homelite 95509A

WASHER- Thrust

$

$

Not available

40

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

41

Homelite 88066

SCREW- Sems hex hd 8-32 x 3/4"
(Superseded to UP07656)

$

$

Not available

42

Homelite 82498

SCREW- Thd #8 x 1"

$

$

Not available

43

Homelite 95594

REED- RETAINER

$

$

Not available

44

Homelite 58775

REED VALVE

$

$

Not available

45

Homelite 93505B

GASKET- Carburetor

$

$

Currently unavailable

46

Homelite A992502

CARBURETOR WALBRO (HDA 59)

$

$

Currently unavailable

Homelite 00514

REPAIR KIT

$

$

Not available

Homelite 00513

DIAPHRAGM KIT

$

$

Not available

47

Homelite 95561

SHIELD- Carburetor

$

$

Not available

48

Homelite 82525

SCREW- Thd forming 10-24 x 2.875

$

$

Not available

49

Homelite 00448

THROTTLE ROD

$

$

Not available

50

Homelite 974581

PIN- Pivot

$

$

Not available

51

Homelite 97031A

SPRING

$

$

Not available

52

Homelite 96007

VANE- Governor

$

$

Not available

53

Homelite 82290

SCREW- Hex hd. 8-18 x .375

$

$

Currently unavailable

54

Homelite 00447

TAB- Gov. Adj

$

$

Not available

55

Homelite JA992365

STRAP- Tie

$

$

Currently unavailable

56

Homelite JA990758

NUT- Hex 5-16 x 18

$

$

Currently unavailable

57

Homelite 95513

SPRING- Extension

$7.99

$

Usually ships in 3-7 days

0

58

Homelite 82404

SCREW- Tap hex hd #10 x 3/8"

$

$

Not available

59

Homelite 95519A

ROTOR

$

$

Currently unavailable

60

Homelite 81104

NUT- 7/16-20 hex

$

$

Not available

61

Homelite A004491

HOUSING- Fan

$

$

Not available
