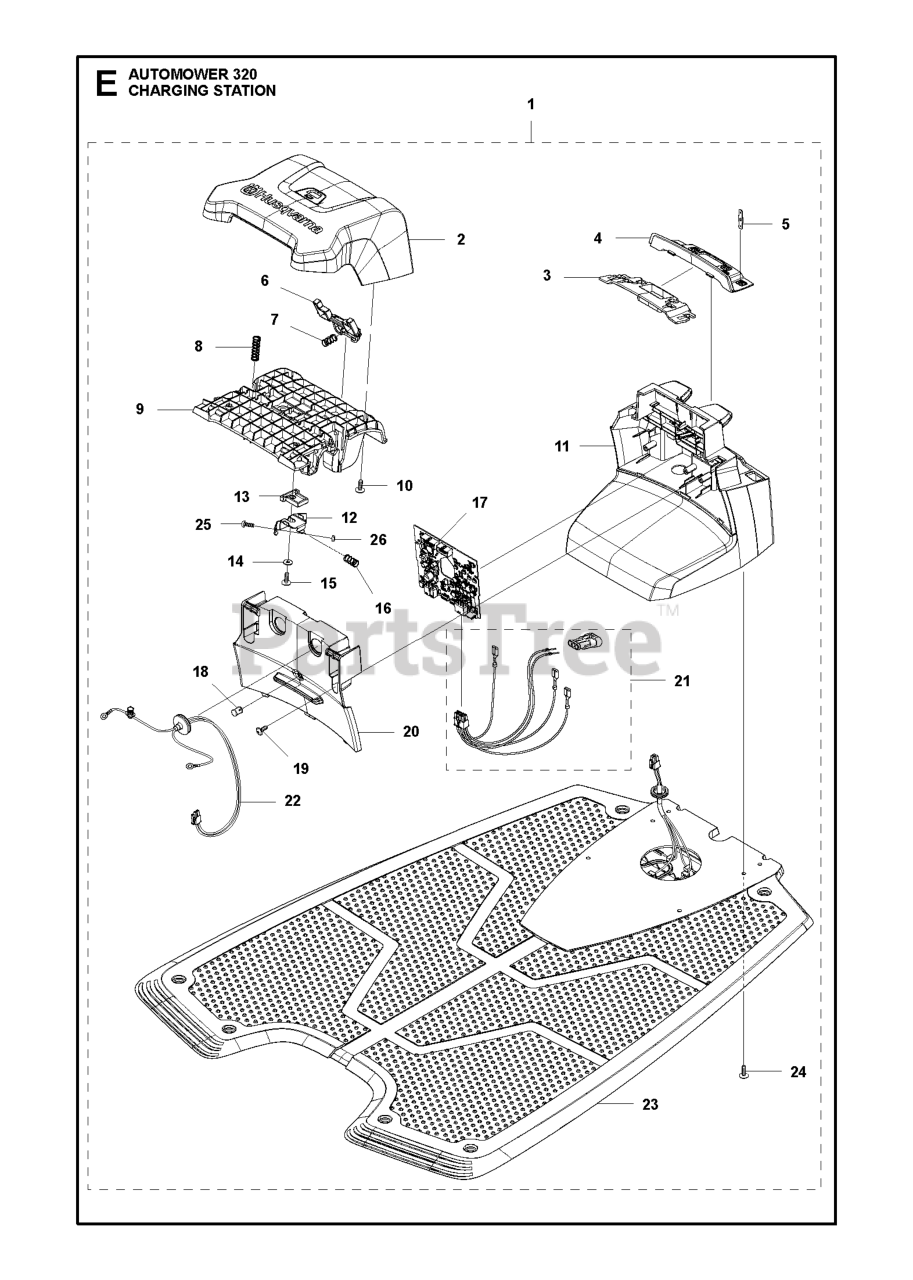

320 - Husqvarna Automower Robotic Lawn Mower (Original) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

CHARGING STATION Parts Diagram

  • Title

1

Husqvarna 593784702

NEEDS DESCRIPTION

$625.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579448203

CAP CHARGING STATION

Note: For 2015 & 2014 models

$62.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579448202

Note: For 2013 models

$

$

Currently unavailable

3

Husqvarna 579459901

HOLDER CHARGING STATION

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579459801

PAN CHARGING STATION 320, ONE

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

$13.99

$

In Stock, only 4 left!

0

6

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: For 2015 & 2014 models

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579462401

Note: For 2013 models

$

$

Currently unavailable

7

Husqvarna 574487001

SPRING STOP BUTTON

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 580511401

SPRING SPRING CAP

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579458002

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

11

Husqvarna 579462302

NEEDS DESCRIPTION

Note: For 2015 & 2014 models

$

$

Currently unavailable

11

Husqvarna 579462301

Note: For 2013 models

$

$

Currently unavailable

12

Husqvarna 579543001

$

$

Currently unavailable

13

Husqvarna 579460502

NEEDS DESCRIPTION

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

16

Husqvarna 580511401

SPRING SPRING CAP

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579565501

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 535128702

LENS
(Superseded to 590217201)

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

20

Husqvarna 579459704

LID CHARGING STATION 320, ONE

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581622301

$

$

Currently unavailable

22

Husqvarna 579708501

$

$

Currently unavailable

23

Husqvarna 575231601

CHARGING PLATE
(Superseded to 590094001)

$182.99

$

Usually ships in 3-10 days

0

24

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

25

Husqvarna 576213801

SCREW ITXPANM M4X12 8.8 ZP-BC

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 732251201

NUT M4

$3.99

$

Usually ships in 3-10 days

0
