320 (UT-35011-A) - Homelite Snow Thrower Paddles and Drive Parts Diagram

Snow Thrower

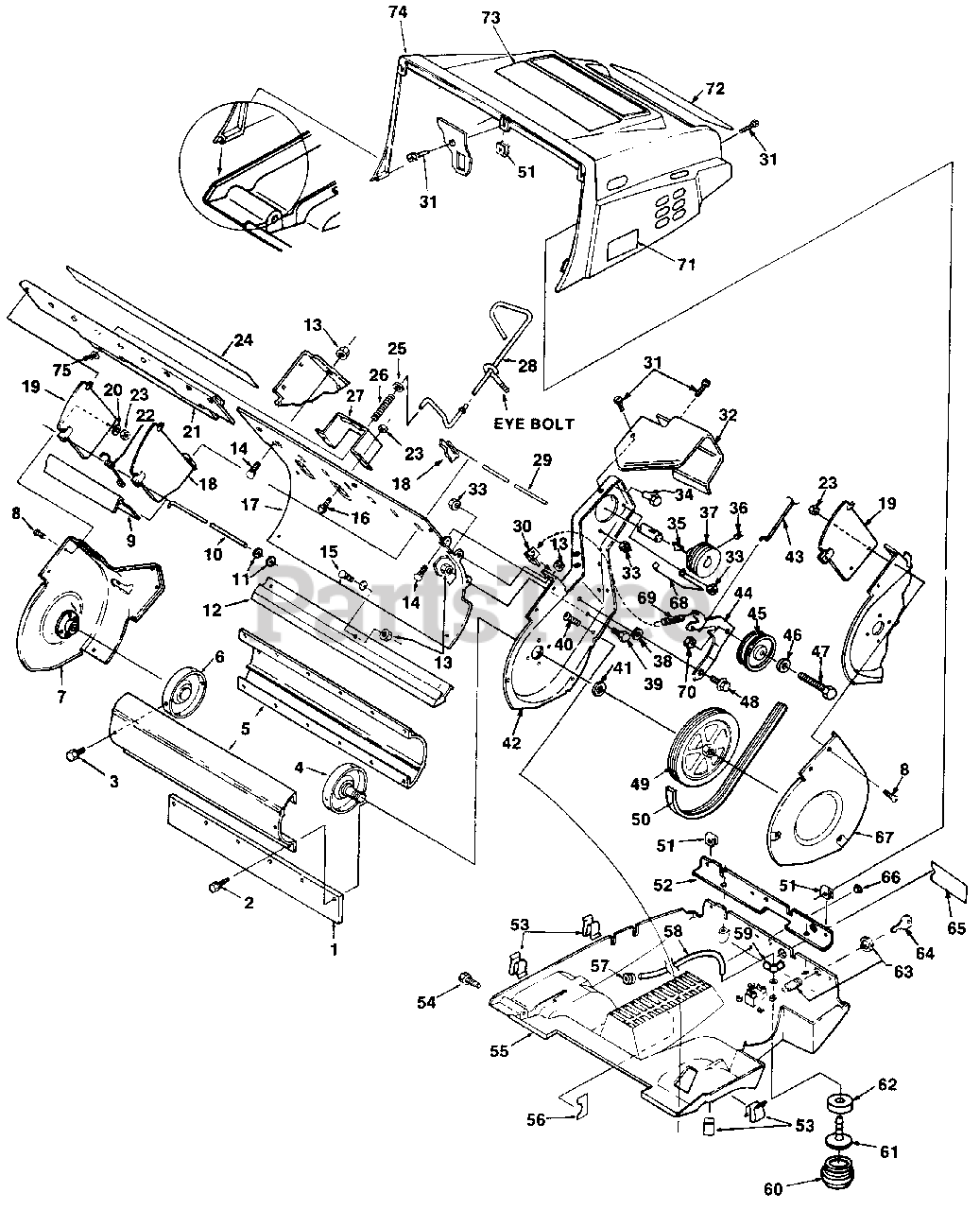

Paddles and Drive Parts Diagram

  • Title

1

Homelite JA991045

PADDLE-impeller

Note: (set of 2)

$

$

Currently unavailable

2

Homelite JA409919

SCREW-12-24 x 1"

$

$

Currently unavailable

3

Homelite JA375978

BOLT- 1/4-14 x .44

$

$

Not available

4

Homelite JA991116

DRIVESHAFT & PLATE KIT

$

$

Currently unavailable

5

Homelite JA991117

DRUM-Impeller

Note: (includes 2 halves)

$

$

Currently unavailable

6

Homelite JA991115

END PLATE & PIN ASSEMBLY

$

$

Currently unavailable

7

Homelite JA990829

FRAME- RH Side

$

$

Currently unavailable

8

Homelite JA403912

SCREW- 10-24 x 5/8"

$

$

Not available

9

Homelite JA392439

GUIDE

$

$

Currently unavailable

10

Homelite JA375486

ROD- Retaining

$

$

Currently unavailable

11

Homelite JA375529

NUT

$

$

Not available

12

Homelite JA991601

BLADE-Scraper

$

$

Not available

13

Homelite JA445768

NUT-Flange 1/4-20

$

$

Not available

14

Homelite JA440038

BOLT- 1/4-20

$

$

Not available

15

Homelite JA441606

BOLT- 1/4 x 3/4

$

$

Not available

16

Homelite JA403748

SCREW- 10-24 x 5/8

$

$

Currently unavailable

17

Homelite JA397325

HOUSING- Impeller

$

$

Currently unavailable

18

Homelite JA339315

DEFLECTOR-Vane

$

$

Currently unavailable

19

Homelite JA339307

VANE-End

$

$

Currently unavailable

20

Homelite JA990798

WASHER-Retainer
(Superseded to UP03867)

$

$

Not available

21

Homelite JA990122

PANEL Vane-Control

Note: Incl. Item #24

$

$

Currently unavailable

22

Homelite JA375484

SPRING-R.H.

$

$

Currently unavailable

23

Homelite JA375506

NUT-Stop 10-24

$

$

Not available

24

Homelite JA992210

DECAL-Warning

$

$

Currently unavailable

25

Homelite JA453009

WASHER 5/16
(Superseded to UP07173)

$

$

Not available

26

Homelite JA351427

SPRING

$

$

Currently unavailable

27

Homelite JA339399

BRACKET- Control rod

$

$

Currently unavailable

28

Homelite JA339323

ROD-Chute control

$

$

Currently unavailable

29

Homelite JA375430

ROD-Vane

$

$

Currently unavailable

30

Homelite JA375942

CLIP-Spring

$

$

Currently unavailable

31

Homelite JA375508

SCREW- 10-24 x 3/4"

$

$

Currently unavailable

32

Homelite JA991608

SHIELD- Belt

$

$

Currently unavailable

33

Homelite JA445775

NUT-Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

34

Homelite JA990758

NUT- 5/16-18

$

$

Currently unavailable

35

Homelite JA463107

KEY- 5/8 x 5/32

$

$

Not available

36

Homelite JA415511

SCREW-Set 1/4-20 x 3/8"

$

$

Currently unavailable

37

Homelite JA990814

PULLEY-Drive

$

$

Currently unavailable

38

Homelite JA313810

WASHER

$3.99

$

Usually ships in 3-7 days

0

39

Homelite JA400104

SCREW- 1/4-20 x 1/2
(Superseded to UP03379)

$

$

Not available

40

Homelite JA408881

SCREW- 1/4-10 x 5/8

$

$

Not available

41

Homelite JA375439

SPACER

$

$

Currently unavailable

42

Homelite JA990583

FRAME-Side (L.H.)

$303.99

$

Usually ships in 3-7 days

0

43

Homelite JA992561

CABLE & SPRING

$

$

Not available

44

Homelite JA991622

ARM-Idler

$26.99

$

Usually ships in 3-7 days

0

45

Homelite JA375435

PULLEY

$

$

Currently unavailable

46

Homelite JA453011

WASHER 3/8
(Superseded to PS84010)

$

$

Not available

47

Homelite JA400266

SCREW- 3/8-16 x 1 1/2

$

$

Currently unavailable

48

Homelite JA375431

BOLT

$

$

Not available

49

Homelite JA990815

PULLEY-Driven

$

$

Currently unavailable

50

Homelite JA990812

BELT-Drive

$

$

Not available

51

Homelite JA445210

NUT-Speed #10

$23.99

$

Usually ships in 3-7 days

0

52

Homelite JA992498

BRACKET-Control panel

$

$

Currently unavailable

53

Homelite 82409

SCREW- Thd. #10 x 5/8

$

$

Not available

54

Homelite JA409908

SCREW- 1/4-20 x 5/8

$4.49

$

Usually ships in 3-7 days

0

55

Homelite JA992611

COWLING- Lower

Note: Incl. 56, 65 & 66

$

$

Currently unavailable

56

Homelite JA991011

DECAL-Fuel valve

$

$

Currently unavailable

57

Homelite JA990722

GROMMET

$

$

Currently unavailable

58

Homelite JA990803

TUBE-RUBBER 17"

$

$

Currently unavailable

59

Homelite JA445612

WING NUT- 1/4-20

$5.99

$

Usually ships in 3-7 days

0

60

Homelite JA990755

BULB-Fuel primer

$

$

Currently unavailable

61

Homelite JA990754

FITTING- Fuel primer

$

$

Currently unavailable

62

Homelite JA990756

CUP- Fuel primer

$

$

Currently unavailable

63

Homelite JA130641

SWITCH-Ignition
(Superseded to GP578238)

$52.99

$

Usually ships in 3-7 days

0

64

Homelite JA343060

KEY- Ignition

Note: (set of 2)

$

$

Not available

65

Homelite JA991677

DECAL-Electric start

$

$

Currently unavailable

66

Homelite JA473140

EYELET

$3.49

$

Usually ships in 3-7 days

0

67

Homelite JA991727

GUARD- Belt

$

$

Currently unavailable

68

Homelite JA991666

GUIDE-Belt

$

$

Not available

69

Homelite JA991442

SPRING-EXTENSION

$

$

Not available

70

Homelite JA444850

NUT- Hex lock 3/8-16
(Superseded to JA993711)

$

$

Not available

71

Homelite JA992354

DECAL- Warning

$

$

Not available

72

Homelite JA994096

DECAL-Console

$

$

Not available

73

Homelite JA992609

COWLING-Upper

Note: Incl. 71 & 72

$

$

Currently unavailable

74

Homelite JA991205

PUSH NUT

$

$

Not available

75

Homelite JA445277

NUT- Speed #10

$5.99

$

Usually ships in 3-7 days

0

?76

Homelite JA991795

COVER- Spring

$

$

Not available
