3200Z/61RDCE (5901859) - Ferris 61" Rear-Discharge Mower Deck 61" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

61" Rear-Discharge Mower Deck

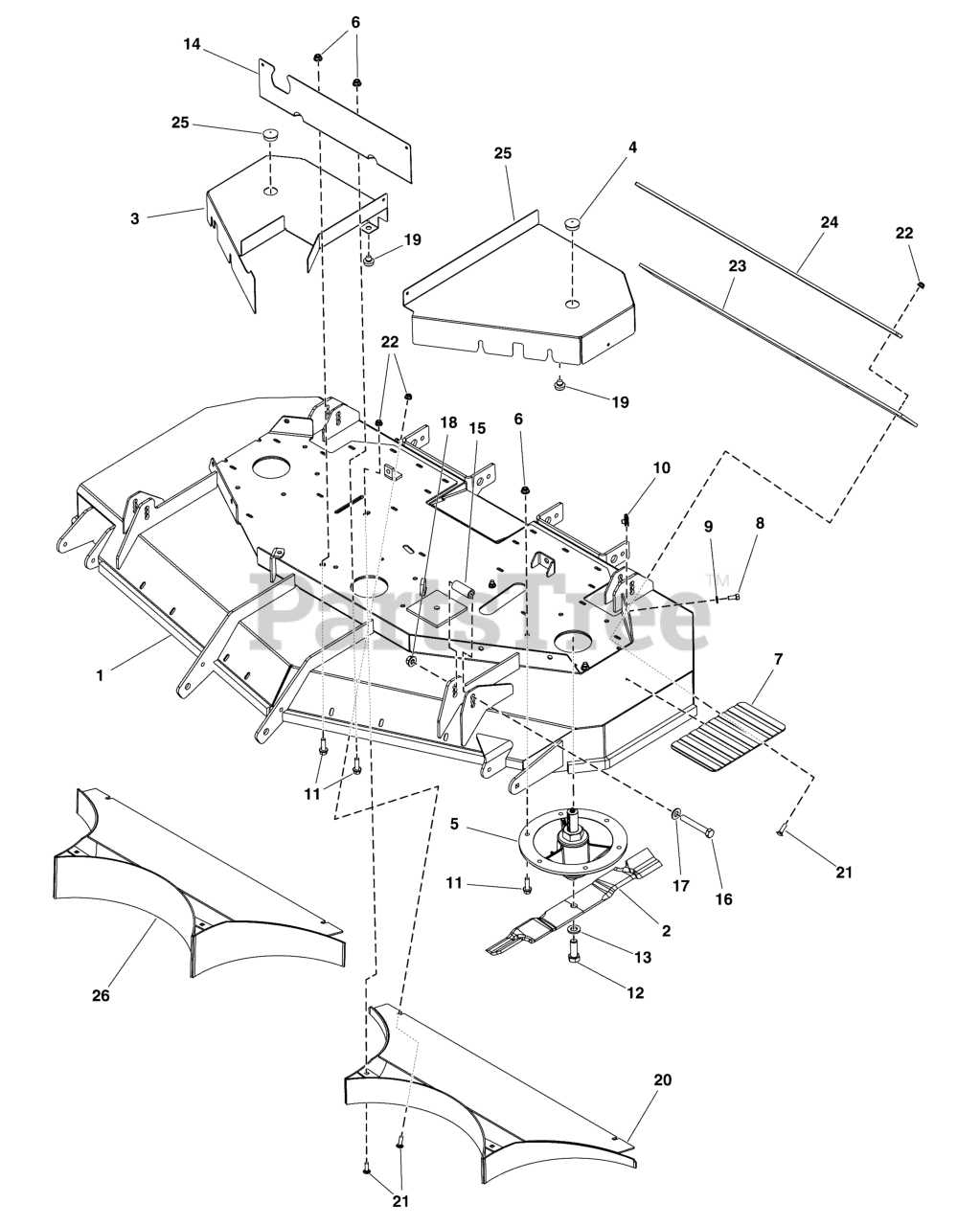

61" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

1

Ferris 5601263

DECK SHELL W/ DECALS, 3200, 61, RDCE

$

$

Currently unavailable

2

Ferris 5103305S

BLADE, SET, MULCH, 61 DECK

Note: (Set of 3 blades)

$84.99

$

Usually ships in 2-12 days

0

3

Ferris 80088997B

GUARD, RIGHT, 3200CE-RD-RED

$

$

Currently unavailable

4

Ferris 80088998B

GUARD, LEFT, 3200CE-RD-RED

$

$

Currently unavailable

5

Ferris 84003242

SPINDLE ASSEMBLY

$351.99

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0

7

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

11

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 80088996B

GUARD, FRONT, 3200CE-RD-RED

Note: (S/N: 4001202382 and below)

$

$

Currently unavailable

14

Ferris 5420725B

GUARD, FRONT, 3200-61RDCE - RED

Note: (S/N: 4001202383 and above)

$

$

Currently unavailable

15

Ferris 5108633

SPACER, .52 X .88 X 2.16, CZ

$

$

Currently unavailable

16

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

17

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 4 left!

0

18

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

19

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

Usually ships in 2-12 days

0

20

Ferris 5419824AA

WELD, REAR BAFFLE, 61CE-RD SHRT

Note: (For rear discharge).

$

$

Currently unavailable

21

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5108196

FLAP, STRIPPER, 3200-61RD

$

$

Currently unavailable

24

Ferris 5419731AA

BAR, STRIPER CLAMP, 3200CE-61RD-BLK

$

$

Currently unavailable

25

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5419817AA

WELD, REAR BAFFLE, 61CE-RD TALL - BLK

Note: (For mulching).

$

$

Currently unavailable
