3202 (86470) - Snapper 20" Snow Thrower, 3hp Decals (Part 1) Parts Diagram

20" Snow Thrower, 3hp

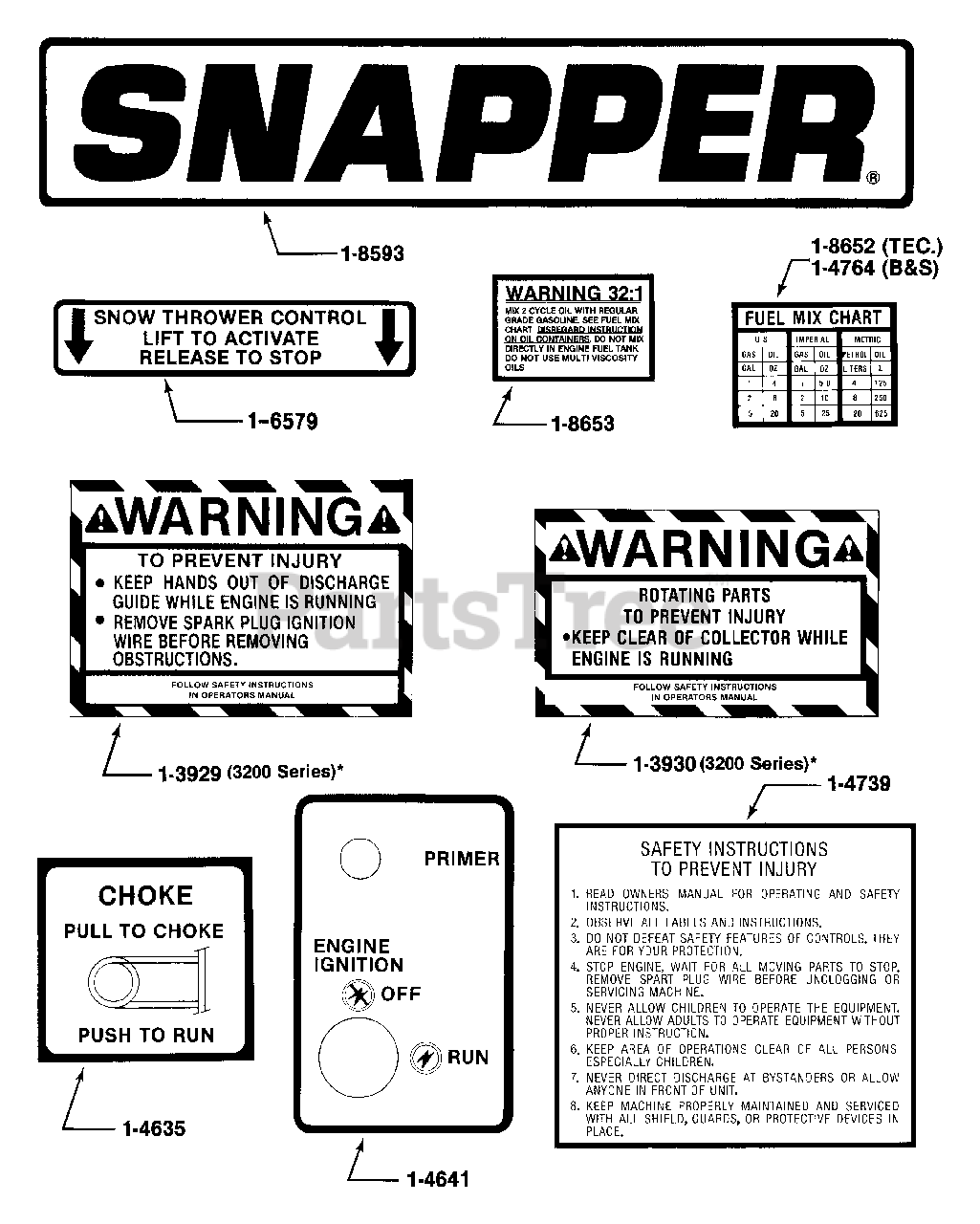

Decals (Part 1) Parts Diagram

  • Title
18593

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

16579

Snapper 7016579

(S) DECAL, CLUTCH CONTROL

$

$

Currently unavailable

18653

Snapper 7018653

(S) DECAL, FUEL MIX

$

$

Not available

13929

Snapper 7013929

(S) DECAL, WARNING

$

$

Not available

14635

Snapper 7014635

(S) DECAL, CHOKE

$

$

Not available

14641

Snapper 7014641

(S) DECAL, IGNITION / PRI

$2.99

$

In Stock, only 1 left!

0

14739

Snapper 7014739

(S) DECAL, INSTRUCTION, S

$

$

Not available

13930

Snapper 7013930

(S) R/B 14929 WARNING DE
(Superseded to 7014929YP)

Note: (3200 Series); See "Decals (Part 2)" illustration and parts list for 3201 Series Decals

$6.49

$

In Stock, only 1 left!

0

14764

Snapper 7014764

(S) DECAL, FUEL MIX

$

$

Currently unavailable

18652

Snapper 7018652

(S) DECAL, MIX CHART

$1.99

$

In Stock, only 1 left!

0
