3205 (14A-685-100) - Cub Cadet Garden Tractor Seat Assembly Parts Diagram

Garden Tractor

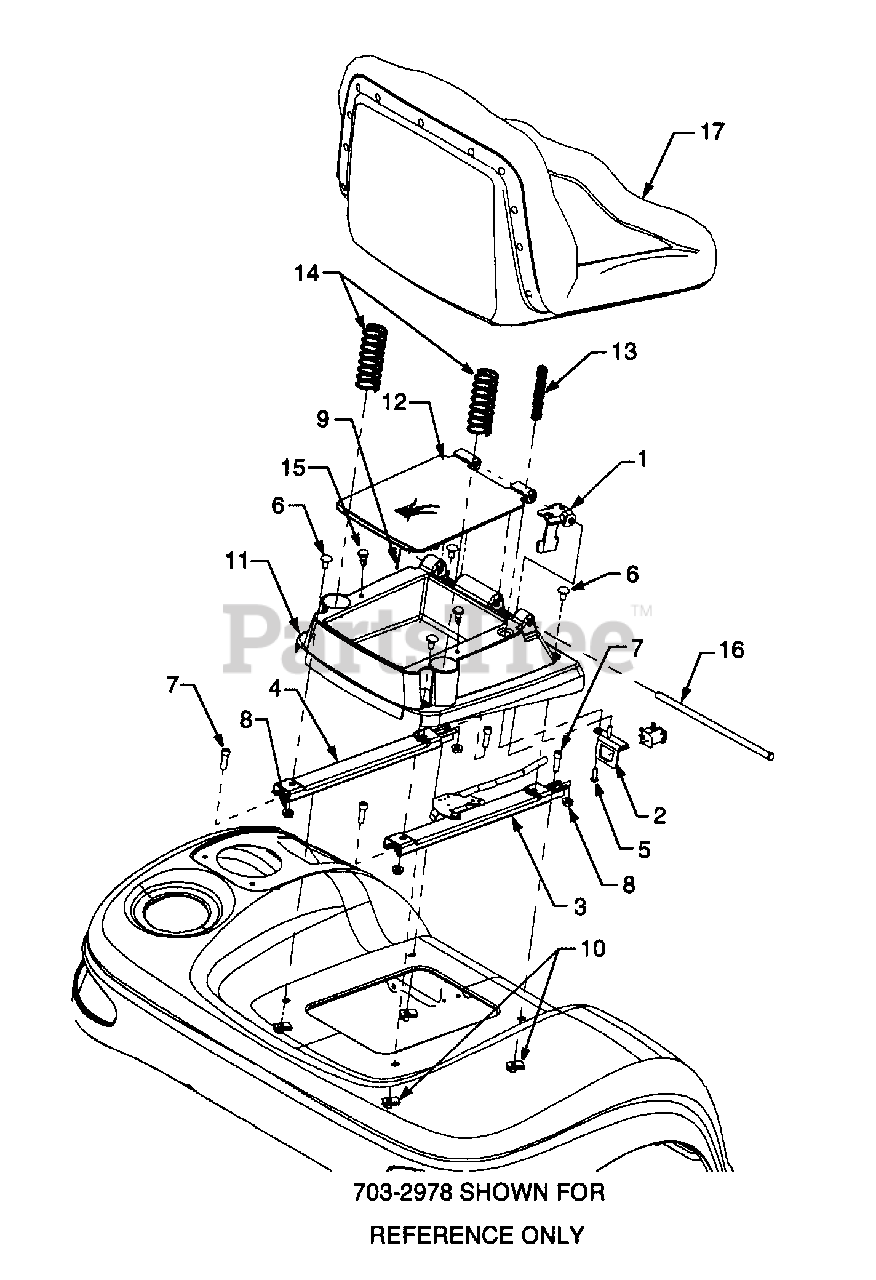

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 703-3166A-0637

Bracket, Seat Switch

$27.99

$

In Stock, only 2 left!

0

2

Cub Cadet 703-3173-0637

Bracket, Switch Mounting

$

$

Not available

3

Cub Cadet 703-3207

Track, Seat, w/Latch
(Superseded to 703-3431)

Note: (Mfg. Date 1H028G & Before)

$

$

Not available

Cub Cadet 703-3431

Track, Seat, w/Latch

Note: (Mfg. Date 1H038G & After; used with 731-3240A seat base)

$

$

Not available

4

Cub Cadet 703-3208

Track, Seat, w/o Latch

$68.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0748

Screw, Pan Torx Hd., #12-14 x .5

$

$

Not available

6

Cub Cadet 710-1636

Carriage Bolt, 5/16-18 x .62

$

$

Not available

7

Cub Cadet 710-1669

Screw, Pan Torx Hd. 5/16-18 x 1.0

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 726-0211

Speed Nut, U-Type, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-3240A

Base, Seat
(Superseded to 731-3240B)

$84.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-3244

Lid, Tlbx

$31.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-0868

Spring, Compression
(Superseded to 732-1001)

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-0869A

Spring, Compression

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-0271

Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, Qty 20+

0

16

Cub Cadet 747-3357A

Rod, Seat Pivot

$

$

Not available

17

Cub Cadet 757-3010A

Seat, High Back
(Superseded to 957-04007)

$

$

Not available

Cub Cadet 777D02200

Graphic, Reflector
(Superseded to 777D06883)

$16.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, USA

$

$

Not available
