321 (314-180-100) - Cub Cadet 21" Snow Thrower Engine (1994) Tec. 3 HP Cylinder Block Ass'y Parts Diagram

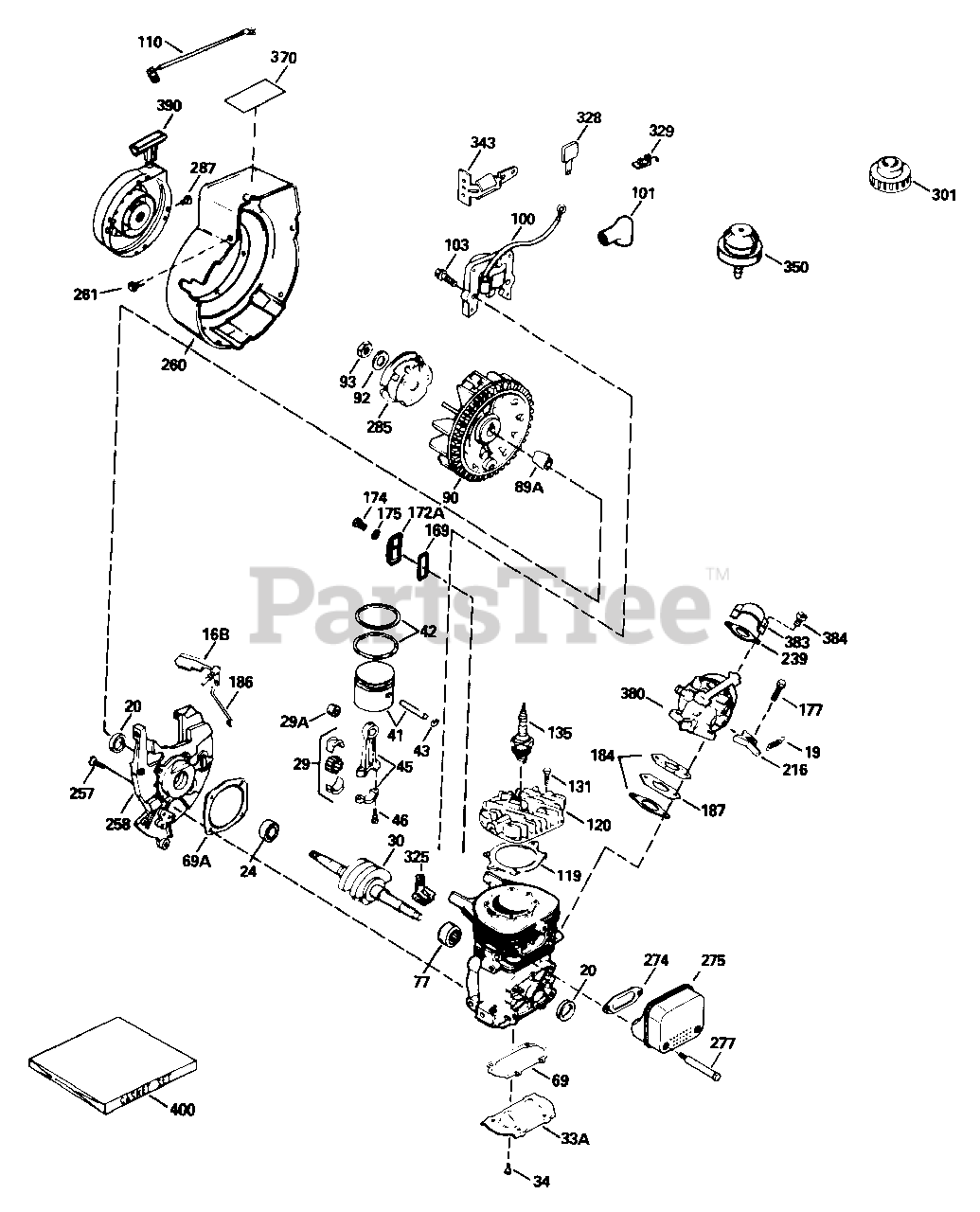

21" Snow Thrower Engine

Tec. 3 HP Cylinder Block Ass'y Parts Diagram

  • Title

?1

Block Ass'y., Cylinder

Note: (Order short block if replacement is required .)

$

$

Not available

16B

Cub Cadet TC-490291A

Vane Ass'y., Air

$3.64

$

Usually ships in 8-14 days

0

19

Cub Cadet TC-570646

Spring, Governor

$1.76

$

In Stock, only 2 left!

0

20

Cub Cadet TC-510319

Seal, Crankshaft

$7.22

$

In Stock, only 1 left!

0

24

Cub Cadet 741-0361

Bearing, Ball (Mag. end)
(Superseded to 941-0361)

$40.40

$

In Stock, only 2 left!

0

29

Cub Cadet TC-530150

Bearing & Liner Set, Needle

$36.70

$

Usually ships in 8-14 days

0

29A

Cub Cadet TC-530104A

Bearing, Cartridge

$15.54

$

In Stock, only 1 left!

0

30

Cub Cadet TC-290609

Crankshaft

$124.94

$

Usually ships in 8-14 days

0

33A

Cub Cadet TC-570644

Plate, Cover

$7.22

$

In Stock, only 1 left!

0

34

Cub Cadet TC-650579

Screw (Cover Mounting) Int. Torx Hd., 10-24 x 1/2

$1.68

$

Usually ships in 8-14 days

0

41

Cub Cadet TC-310283A

Piston

$33.92

$

In Stock, only 2 left!

0

42

Cub Cadet TC-310190

Ring Set, Piston
(Superseded to TC-310289A)

$14.58

$

In Stock, only 2 left!

0

43

Cub Cadet TC-310167

Ring, Piston Pin Retaining

$1.52

$

Usually ships in 8-14 days

0

45

Cub Cadet TC-310235B

Rod Ass'y., Connecting

Note: (Incl. Nos. 29, 29A & 46)

$

$

Not available

46

Cub Cadet TC-650633

Screw, Connecting Rod

$1.68

$

Usually ships in 8-14 days

0

69

Cub Cadet TC-510323A

Gasket, Cover Plate

Note: Indicates items included in Gasket Set, Ref. No. 400.

$1.76

$

In Stock, Qty 5

0

69A

Cub Cadet TC-510292A

Gasket, Housing Base

Note: Indicates items included in Gasket Set, Ref. No. 400.

$3.64

$

In Stock, only 1 left!

0

77

Cub Cadet TC-530105

Bearing, Cartridge (PTO End)

$11.82

$

In Stock, only 1 left!

0

89A

Cub Cadet TC-611032

Sleeve, Keyed Adapter

$8.04

$

Usually ships in 8-14 days

0

90

Cub Cadet TC-611066

Flywheel

$74.42

$

In Stock, only 1 left!

0

92

Cub Cadet TC-650815

Washer, Belleville

$1.76

$

In Stock, Qty 6

0

93

Cub Cadet TC-650390

Nut, Flywheel

$1.76

$

In Stock, only 4 left!

0

100

Cub Cadet TC-34443A

Solid State Ass'y.
(Superseded to TC-34443D)

$44.94

$

In Stock, Qty 20+

0

101

Cub Cadet TC-610118

Cover, Spark Plug

$3.74

$

In Stock, Qty 20+

0

103

Cub Cadet TC-650814

Screw (Solid State) Torx Hex Washer Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.64

$

In Stock, Qty 5

0

110

Cub Cadet TC-611141

Wire, Ground

$

$

Currently unavailable

119

Cub Cadet TC-510274A

Gasket, Cylinder Head

Note: Indicates items included in Gasket Set, Ref. No. 400.

$1.76

$

In Stock, only 2 left!

0

120

Cub Cadet TC-250240B

Head, Cylinder

$35.96

$

In Stock, only 1 left!

0

131

Cub Cadet TC-650477

Screw (Cylinder Head) Torx Pan Hd., 1/4-20 x 3/4

$1.76

$

In Stock, Qty 20+

0

135

Cub Cadet 759-3331

Plug, Spark

$3.90

$

In Stock, Qty 19

0

169

Cub Cadet TC-510325A

Gasket, Cover

Note: Indicates items included in Gasket Set, Ref. No. 400.

$1.68

$

Usually ships in 8-14 days

0

172A

Cub Cadet TC-570647

Cover Ass'y., Compression Release

$5.40

$

In Stock, only 3 left!

0

174

Cub Cadet TC-650579

Screw (Comp. Rel. Cover) Int. Torx Hd., 10-24 x 1/2

$1.68

$

Usually ships in 8-14 days

0

175

Cub Cadet TC-650838

Washer, Flat (Comp. Rel. Cover)

$1.60

$

Usually ships in 8-14 days

0

177

Cub Cadet TC-650959

Screw, 5/32 Hex Socket Button Hd. Cap, 1/4-20 x 1

$1.68

$

In Stock, Qty 6

0

184

Cub Cadet TC-510326A

Gasket, Carburetor

Note: Indicates items included in Gasket Set, Ref. No. 400.

$1.22

$

In Stock, Qty 5

0

186

Cub Cadet TC-490294

Link, Governor

$

$

Currently unavailable

187

Cub Cadet TC-570438A

Spacer (Carburetor)

$3.64

$

In Stock, only 4 left!

0

216

Cub Cadet TC-570645

Lever, Speed Adjusting

$

$

Not available

239

Cub Cadet TC-35815

Gasket, Filter Base

$1.24

$

In Stock, Qty 6

0

257

Cub Cadet TC-650911

Screw (Base Mounting) Torx Pan Hd., 1/4 x 5/8

$1.68

$

Usually ships in 8-14 days

0

258

Cub Cadet TC-350422

Base Ass'y., Blower Housing

Note: (Incl. No. 20)

$50.98

$

Usually ships in 8-14 days

0

260

Cub Cadet TC-350440

Housing, Blower

$

$

Not available

261

Cub Cadet TC-650737

Screw (Blower Housing) Hex Wash. Hd. Taptite, 1/4-20 x 1/2

$1.76

$

In Stock, only 3 left!

0

274

Cub Cadet TC-510207A

Gasket, Muffler

Note: Indicates items included in Gasket Set, Ref. No. 400.

$5.40

$

In Stock, only 2 left!

0

275

Cub Cadet TC-390330

Muffler

$

$

Not available

277

Cub Cadet TC-650869

Screw, Hex Hd., 1/4-20 x 2-3/4

$3.64

$

Usually ships in 8-14 days

0

285

Cub Cadet TC-590551

Cup, Starter

$

$

Not available

287

Cub Cadet TC-650884

Screw, Hex Washer Hd., 8-32 x 1/2
(Superseded to TC-650926)

$1.24

$

In Stock, Qty 20+

0

301

Cub Cadet TC-410240

Cap Ass'y., Fuel

$9.08

$

Usually ships in 8-14 days

0

325

Cub Cadet TC-29443

Clip

$1.76

$

Usually ships in 8-14 days

0

328

Cub Cadet 725-0954

Key
(Superseded to TC-35062)

$3.66

$

In Stock, Qty 8

0

329

Cub Cadet TC-610793

Terminal Ass'y.

$

$

Currently unavailable

343

Cub Cadet TC-35079

Bracket, Key Switch

$

$

Not available

350

Cub Cadet TC-570682

Primer Ass'y.
(Superseded to TC-570682A)

$10.40

$

In Stock, Qty 16

0

370

Cub Cadet TC-35977

Decal, Caution

$2.00

$

In Stock, Qty 9

0

380

Cub Cadet TC-632410B

Carburetor
(Superseded to TC-640092A)

Note: (Incl. No. 184)

$107.80

$

In Stock, only 1 left!

0

383

Cub Cadet TC-570434

Baffle, Air

$7.22

$

In Stock, only 1 left!

0

384

Cub Cadet TC-650229

Screw, Torx Pan Hd. Sems, 10-32 x 3/8

$1.68

$

In Stock, Qty 5

0

390

Cub Cadet TC-590652

Starter, Rewind
(Superseded to TC-590787)

$53.18

$

Usually ships in 8-14 days

0

400

Cub Cadet TC-510324B

Gasket Set

Note: (Incl. Items 69, 69A, 119, 169, 184 & 274)
