321 (316-140-100) - Cub Cadet 21" Snow Thrower Engine (1996) Carburetor 632410B Parts Diagram

21" Snow Thrower Engine

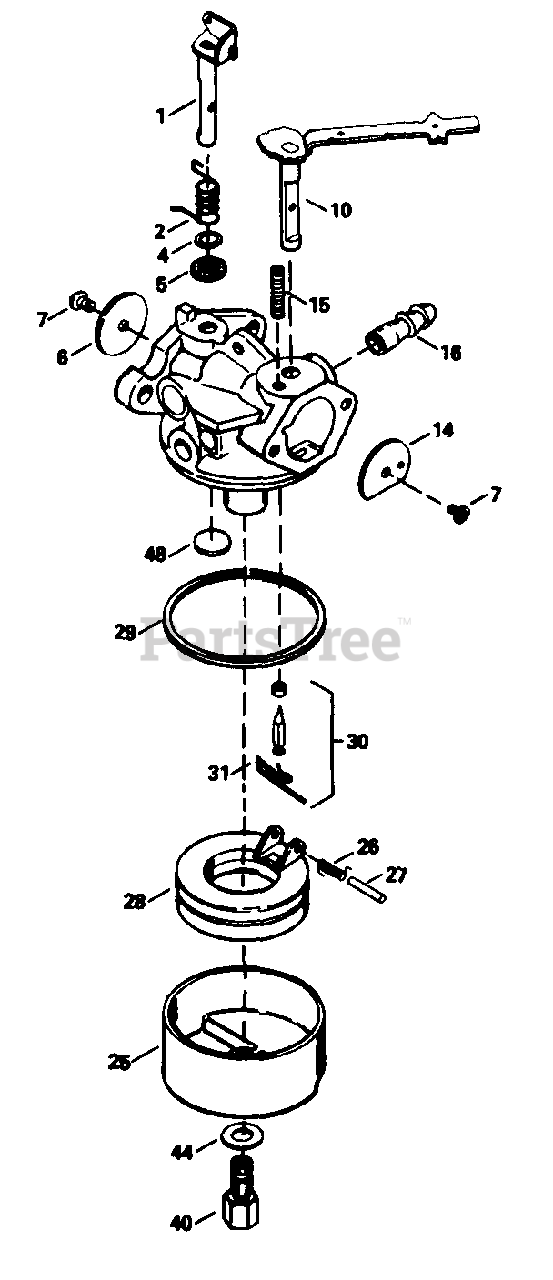

Carburetor 632410B Parts Diagram

  • Title

1

Cub Cadet TC-632166

Throttle Shaft & Lever Ass'y.

$

$

Not available

2

Cub Cadet TC-632169

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

4

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, only 4 left!

0

5

Cub Cadet TC-631183

Dust Seal

$1.99

$

In Stock, only 3 left!

0

6

Cub Cadet TC-631621

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-650506

Throttle and Choke Shutter Screw

$1.49

$

In Stock, only 2 left!

0

10

Cub Cadet TC-31841A

Choke Shaft and Lever Ass'y.

$9.49

$

Usually ships in 3-12 days

0

14

UNKNOWN

$

$

Not available

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, Qty 9

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

25

Cub Cadet TC-631700

Float Bowl

$7.49

$

In Stock, Qty 10

0

26

Cub Cadet TC-632386

Float Dampening Spring

$1.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, only 1 left!

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet TC-631028

O-Ring, Float Bowl to Body
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 20+

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. 31)

$6.99

$

In Stock, Qty 14

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, Qty 5

0

40

Cub Cadet TC-632385

High Speed Bowl Nut

$12.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-631334

Bowl Nut Washer
(Superseded to TC-631334A)

$3.49

$

In Stock, only 2 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, Qty 16

0
