321 R (31A-142-101) - Cub Cadet 21" Snow Thrower (1999) Controls/Shroud Parts Diagram

21" Snow Thrower

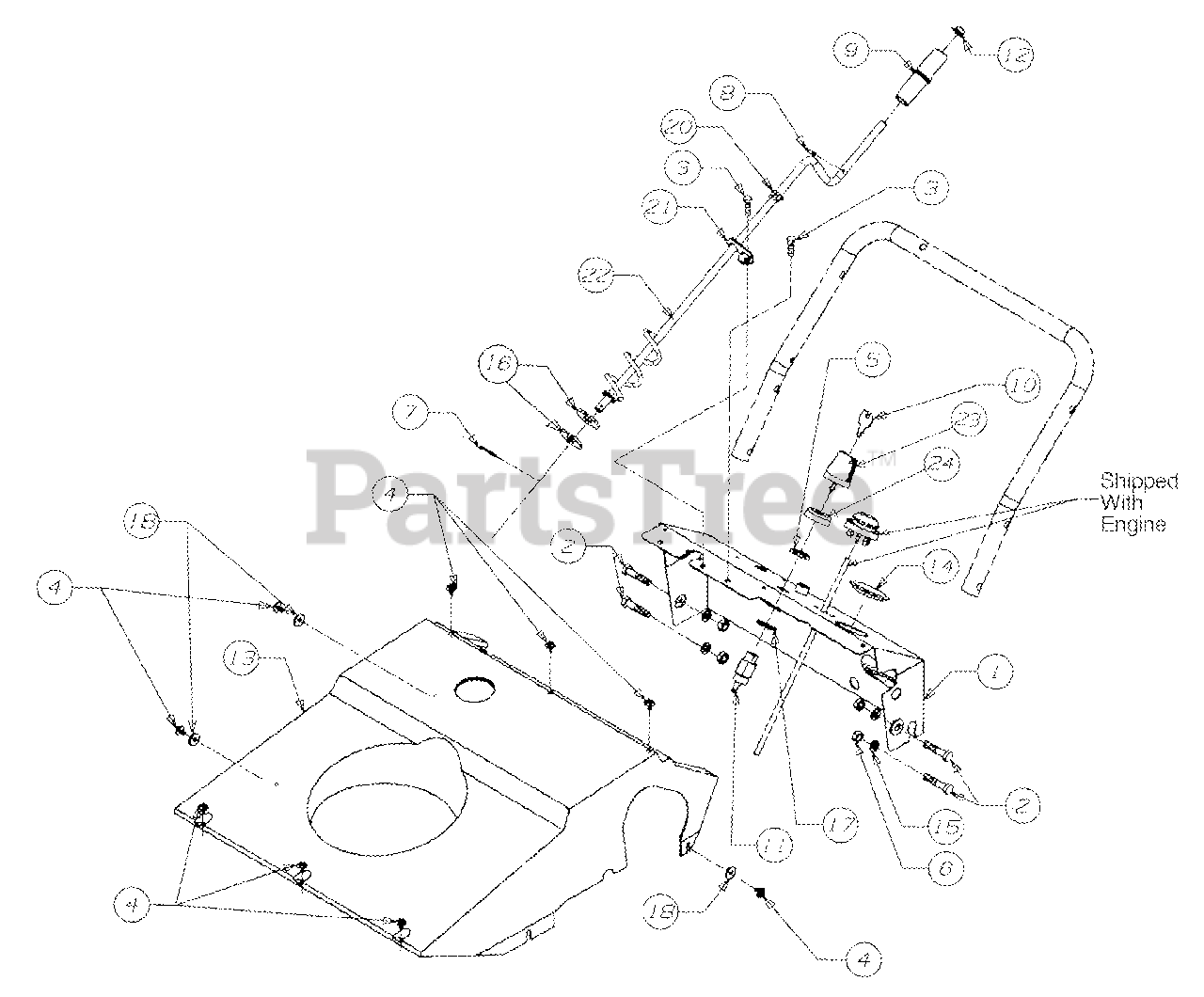

Controls/Shroud Parts Diagram

  • Title

1

Cub Cadet 684-0056-0498

Dash-21"

$

$

Not available

2

Cub Cadet 710-1090

Screw-Hex

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0895

Screw-Hex Tap

$5.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1268

Screw-Hex Tap

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 712-1346

Nut Hex

$

$

Currently unavailable

6

Cub Cadet 712-3010

Nut-Hex

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin-Cotter

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 715-0138

Pin Roll
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 6

0

10

Cub Cadet 725-0201

Key-Ignition - Std.
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

11

Cub Cadet 725-1425

Switch-Key
(Superseded to 925-1425)

$33.99

$

In Stock, only 1 left!

0

12

Cub Cadet 726-0100

Nut Push

$3.99

$

In Stock, Qty 7

0

13

Cub Cadet 731-0852

Shroud -Beige

$

$

Not available

14

Cub Cadet 731-1133A

Plug
(Superseded to 731-1133C)

$

$

Not available

15

Cub Cadet 736-0119

Washer Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0185

Washer

$3.49

$

In Stock, Qty 16

0

17

Cub Cadet 736-0225

Washer Internal Lock

$3.99

$

In Stock, Qty 11

0

18

Cub Cadet 736-0400

Washer Flat

$4.99

$

In Stock, Qty 16

0

20

Cub Cadet 741-0475

Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 784-5178A

Bracket Chute Crank

$

$

Not available

22

Cub Cadet 784-5344

Crank Ass'y. Chute

$

$

Not available

23

Cub Cadet 725-1341B

Key - Ignition w/Bell Cover

$9.99

$

In Stock, only 3 left!

0

24

Cub Cadet 725-1347

Cover - Ignition Switch

$4.49

$

In Stock, only 4 left!

0
