32119 - Gravely 30" Deck for 2-Wheel Tractor, Short Drive ROTARY MOWER 30" Parts Diagram

30" Deck for 2-Wheel Tractor, Short Drive

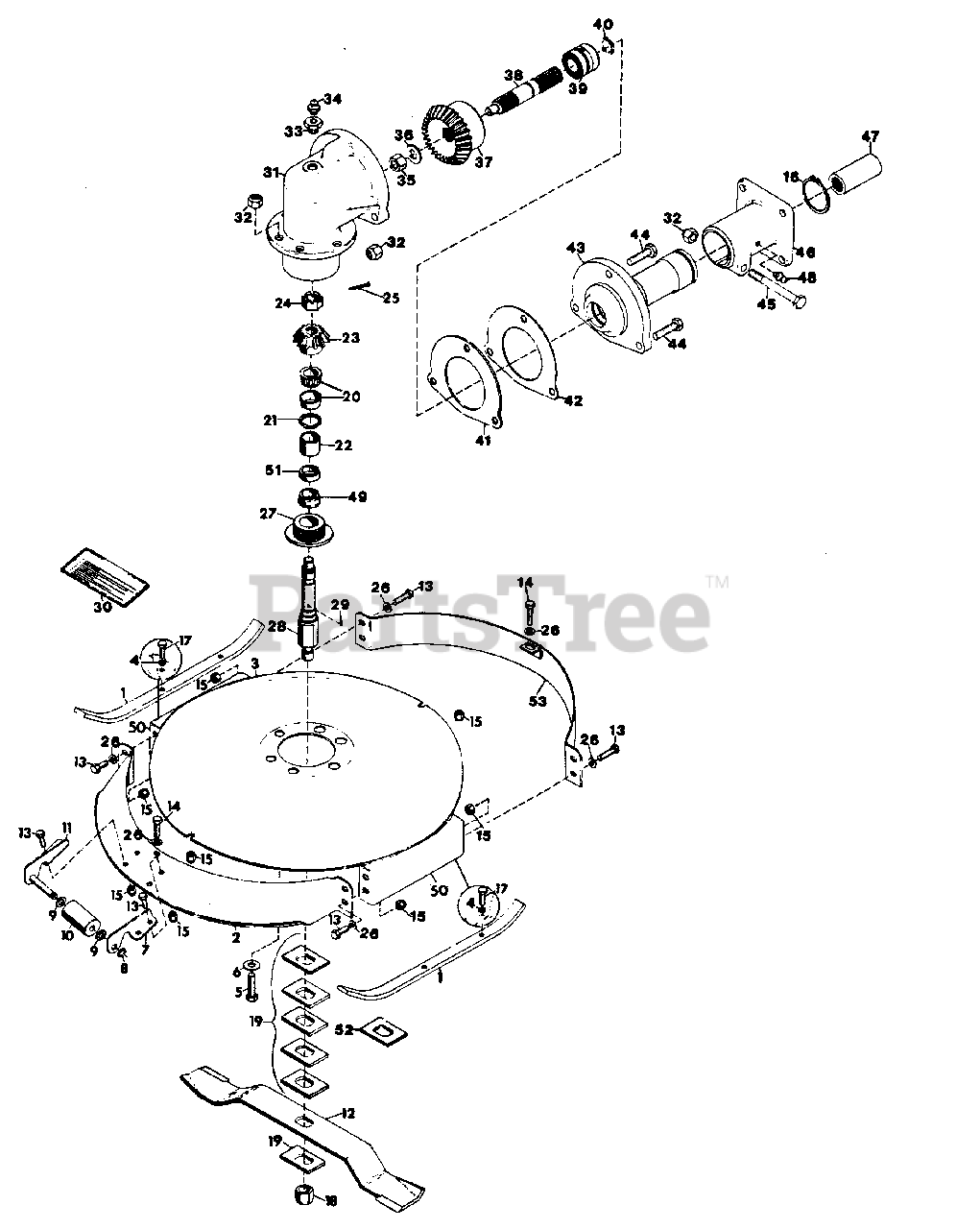

ROTARY MOWER 30" Parts Diagram

  • Title

1

Gravely 021492

SKID, ROTARY MOWER
(Superseded to 08518000)

$68.99

$

Usually ships in 4-12 days

0

2

Gravely 021388

FENDER, FRONT 30" MOWER
(Superseded to 08516700)

$213.99

$

Usually ships in 4-12 days

0

3

Gravely 010110

DECK, WELDMENT 30 IN.
(Superseded to 68507400)

$

$

Not available

4

Gravely 138538

WASHER LOCK 5/16 INT. TOOTH
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 180177

BOLT, HEX 1/2-13 X 1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 120390

WASHER, FLAT 9/16 X 1-3/8 X .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

7

Gravely 021399

BRACKET, WHEEL L-H
(Superseded to 08517100)

$62.99

$

Usually ships in 4-12 days

0

8

Gravely 021396

E-RING
(Superseded to 05708300)

$0.99

$

In Stock, only 4 left!

0

9

Gravely 421879

WASHER, FLAT .656 X 1.250 X .100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 015351

ROLLER, GAGE
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

11

Gravely 021400

WELDMENT, BRACKET
(Superseded to 08517200)

$145.99

$

Usually ships in 4-12 days

0

12

Gravely 022528

ROTARY MOWER BLADE 3/8"
(Superseded to 08526100)

$

$

Not available

13

Gravely 180077

BOLT, HEX 5/16-18 X .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

14

Gravely 180078

BOLT, HEX 5/16-18 X .875
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 419455

NUT, LOCK 5/16-18 WASHER INSERT
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 032120

RING, RETAINING
(Superseded to 05714800)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 181593

BOLT HEX 5/16-24 X 5/8
(Superseded to 05936800)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 017313

NUT LOCK 7/8-9 HEAVY THIN
(Superseded to 06525600)

$9.49

$

Usually ships in 4-12 days

0

19

Gravely 022526

SPACER, CUTTING HEIGHT 1/4"
(Superseded to 08525900)

$25.99

$

In Stock, only 2 left!

0

20

Gravely 038199

ASSEMBLY, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

21

Gravely 022525

RING, RETAINING
(Superseded to 05714200)

$2.99

$

In Stock, Qty 7

0

22

Gravely 022521

SPACER; 1.75 X 1.936 X 1.967
(Superseded to 08525700)

$73.99

$

Usually ships in 4-12 days

0

23

Gravely 022519

PINION BEVEL
(Superseded to 08659800)

$253.99

$

Usually ships in 4-12 days

0

24

Gravely 125267

NUT, HEX 5/8-18 SLOTTED
(Superseded to 06523900)

$3.49

$

In Stock, only 1 left!

0

25

Gravely 119120

PIN COTTER 3/32 X 1-1/4
(Superseded to 06713400)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 120386

WASHER, FLAT .312 X .734 X .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

27

Gravely 022522

SEAL
(Superseded to 08525800)

$

$

Not available

28

Gravely 022520

SHAFT, ROTOR
(Superseded to 08525600)

$293.99

$

In Stock, only 2 left!

0

29

Gravely 271089

KEY, WOODRUFF; .125 X .375
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 018549

DECAL, DANGER
(Superseded to 05200100)

$

$

Not available

31

Gravely 032116

HOUSING, GEAR
(Superseded to 08534700)

$

$

Not available

32

Gravely 435507

NUT, LOCK; 1/2-13 WASHER INSERT
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 144044

BUSHING, 1/2 REDUCING PIPE
(Superseded to 07012200)

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 271434

FITTING, LUBE
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

35

Gravely 416310

NUT, LOCK; 5/8-18 HEX HD. TYPE-N
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

36

Gravely 131016

WASHER, FLAT .656 X 1.312 X .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 022518

GEAR, BEVEL
(Superseded to 08659700)

$385.99

$

Usually ships in 4-12 days

0

38

Gravely 032117

SHAFT, DRIVE
(Superseded to 08534800)

$

$

Not available

39

Gravely 014640

ASSEMBLY, BEARING; 1.000 X 1.980 X 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

40

Gravely 022242

RING, RETAINING; .937 SHAFT
(Superseded to 05714100)

$

$

Not available

41

Gravely 032863

SHIM, .020
(Superseded to 21511700)

$

$

Not available

42

Gravely 032862

SHIM, .005
(Superseded to 08508100)

$21.99

$

Usually ships in 4-12 days

0

43

Gravely 032115

HOUSING, SHAFT
(Superseded to 08534600)

$

$

Not available

44

Gravely 180179

BOLT, HEX 1/2-13 X 1-3/4
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

45

Gravely 180191

BOLT, HEX 1/2-13 X 3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

46

Gravely 032114

CASTING, SWIVEL
(Superseded to 08534500)

$

$

Not available

47

Gravely 032118

COUPLING
(Superseded to 08534900)

$129.99

$

Usually ships in 4-12 days

0

48

Gravely 411027

FITTING, LUBE; 1/4-28
(Superseded to 07012600)

$

$

Not available

49

Gravely 022523

CONE, BEARING
(Superseded to 05414700)

$39.99

$

Usually ships in 4-12 days

0

50

Gravely 012855

PANEL SKID
(Superseded to 08591800)

$82.99

$

In Stock, only 1 left!

0

51

Gravely 022524

CUP, BEARING
(Superseded to 05414600)

$18.99

$

Usually ships in 4-12 days

0

52

Gravely 022527

SPACER, CUTTING HEIGHT 1/8"
(Superseded to 08526000)

$8.49

$

Usually ships in 4-12 days

0

53

Gravely 032448

WELDMENT, REAR FENDER
(Superseded to 08535700)

$129.99

$

In Stock, only 1 left!

0

54

Gravely 037062

SUPPORT, DECK
(Superseded to 08539400)

$12.99

$

Usually ships in 4-12 days

0
