3212 V (990570) - Simplicity Sovereign Garden Tractor REAR WHEELS AND AXLE Parts Diagram

Sovereign Garden Tractor

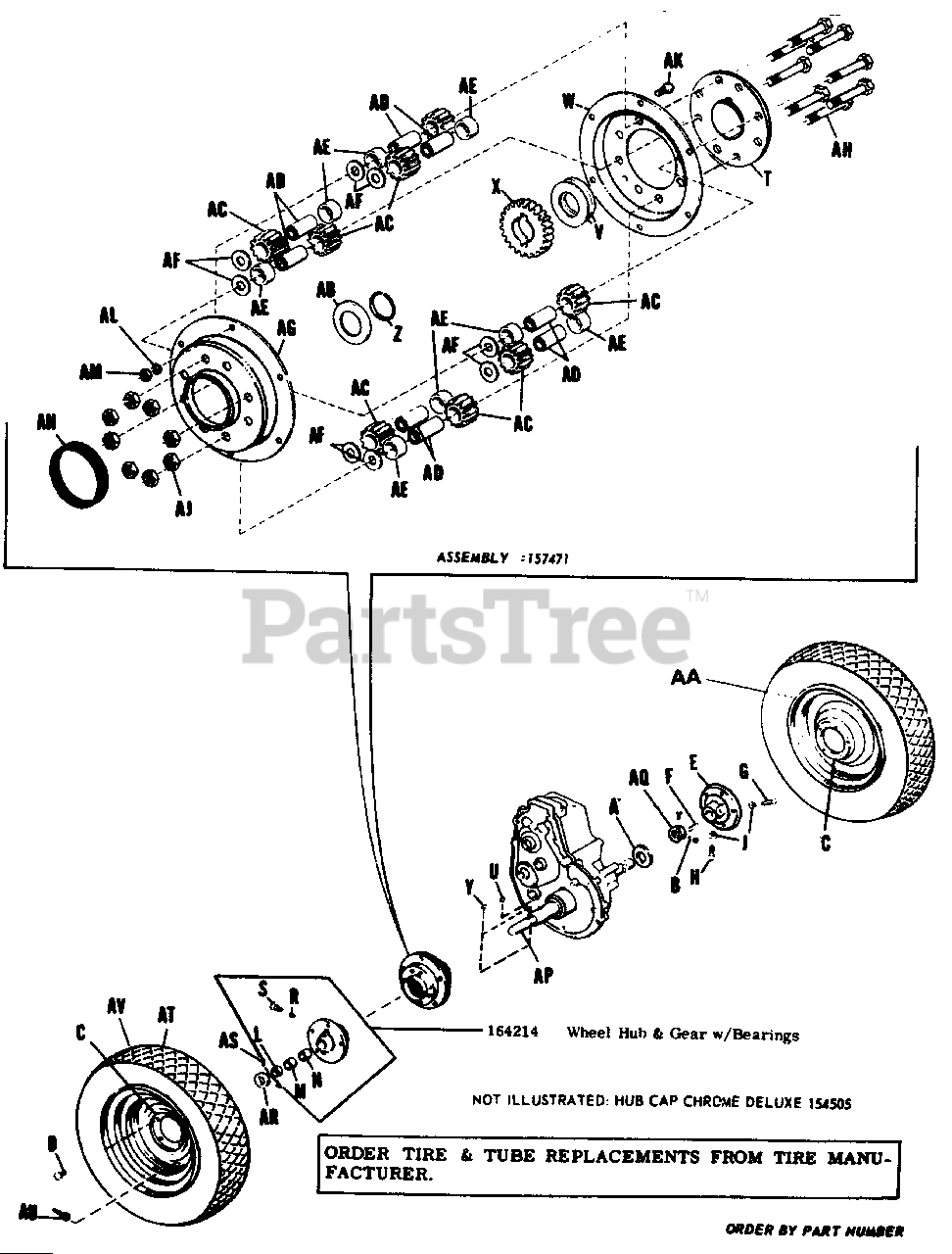

REAR WHEELS AND AXLE Parts Diagram

  • Title

A

Simplicity 2105050

Washer

$

$

Not available

B

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8" Lg.

$

$

Not available

C

Simplicity 2170278

Wheel Drive

$

$

Not available

D

Simplicity 2121138

Hub Bolt

$

$

Not available

E

Simplicity 2154208SM

L.H. Wheel Hub

$237.99

$

In Stock, only 1 left!

0

F

Simplicity 2159129

Key

$

$

Not available

G

Simplicity 2715022

Set Screw, 3/8"-16 x 1 1/2" Lg.

$

$

Not available

H

Simplicity 2713004

Set Screw, 3/8"-16 x 1" Lg.

$

$

Not available

J

Simplicity 2717021

Hex. Jam Nut, 3/8"-16

$

$

Not available

L

Simplicity 2105058SM

Bearing

$

$

Not available

M

Simplicity 152041

Nylon Bearing

$

$

Not available

N

Simplicity 2153068SM

Bearing

$43.99

$

Usually ships in 2-12 days

0

R

Simplicity 152042

Nylon Plug

$

$

Not available

S

Simplicity 713508

Control Traction Bolt, 7/16"-20 x 1/2" Lg.

Note: DO NOT EXCEED 25ft. POUNDS OF TORQUE ON CONTROL TRACTION BOLTS.

$

$

Not available

T

Simplicity 2164217SM

Differential Carrier

$125.99

$

Usually ships in 2-12 days

0

U

Simplicity 2157120SM

Drive Key

$9.99

$

In Stock, only 1 left!

0

V

Simplicity 2154035

Axle Washer

$

$

Not available

W

Simplicity 2164218

Differential Cover

Note: Reference letters "W" and "AG" must be replaced in pairs.

$

$

Not available

X

Simplicity 2164219

Differential Gear

$

$

Not available

Y

Simplicity 2725501

Hi-Pro Key

$

$

Not available

Z

Simplicity 2154291SM

Retaining Ring

$

$

Not available

AA

Simplicity 2157638SM

Tube (For Service Only)

$86.99

$

In Stock, only 2 left!

0

AB

Simplicity 2154277

Axle Washer

$

$

Not available

AC

Simplicity 2121311

Differential Pinion

$

$

Not available

AD

Simplicity 2121083SM

Pinion Differential Spindle

$13.99

$

In Stock, only 1 left!

0

AE

Simplicity 2121084SM

Differential Spacer

$13.99

$

Usually ships in 2-12 days

0

AF

Simplicity 2719002

Plain Washer

$

$

Not available

AG

Simplicity 2164220

Differential Cover

Note: Reference letters "W" and "AG" must be replaced in pairs.

$

$

Not available

AH

Simplicity 2715043

Hex. Cap Screw, 3/8"-16 x 2 1/2"

$

$

Not available

AJ

Simplicity 2717510

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

AK

Simplicity 2705015

Hex. Cap Screw, 1/4 "-20 x 5/8"

$

$

Not available

AL

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AM

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

AN

Simplicity 2121190SM

Differential Cover Seal

$

$

Not available

AP

Simplicity 2164221SM

Rear Axle

$168.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 2154065SM

Axle Collar

$113.99

$

Usually ships in 2-12 days

0

AR

Simplicity 2154065SM

Axle Collar

$113.99

$

Usually ships in 2-12 days

0

AS

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

AT

Simplicity 2157637

Tire 10 1/2" x 12

$

$

Not available

AU

Simplicity 157029

Valve Stem

$

$

Not available

AV

Simplicity 170280

Wheel & Tire Assy.

$

$

Not available
