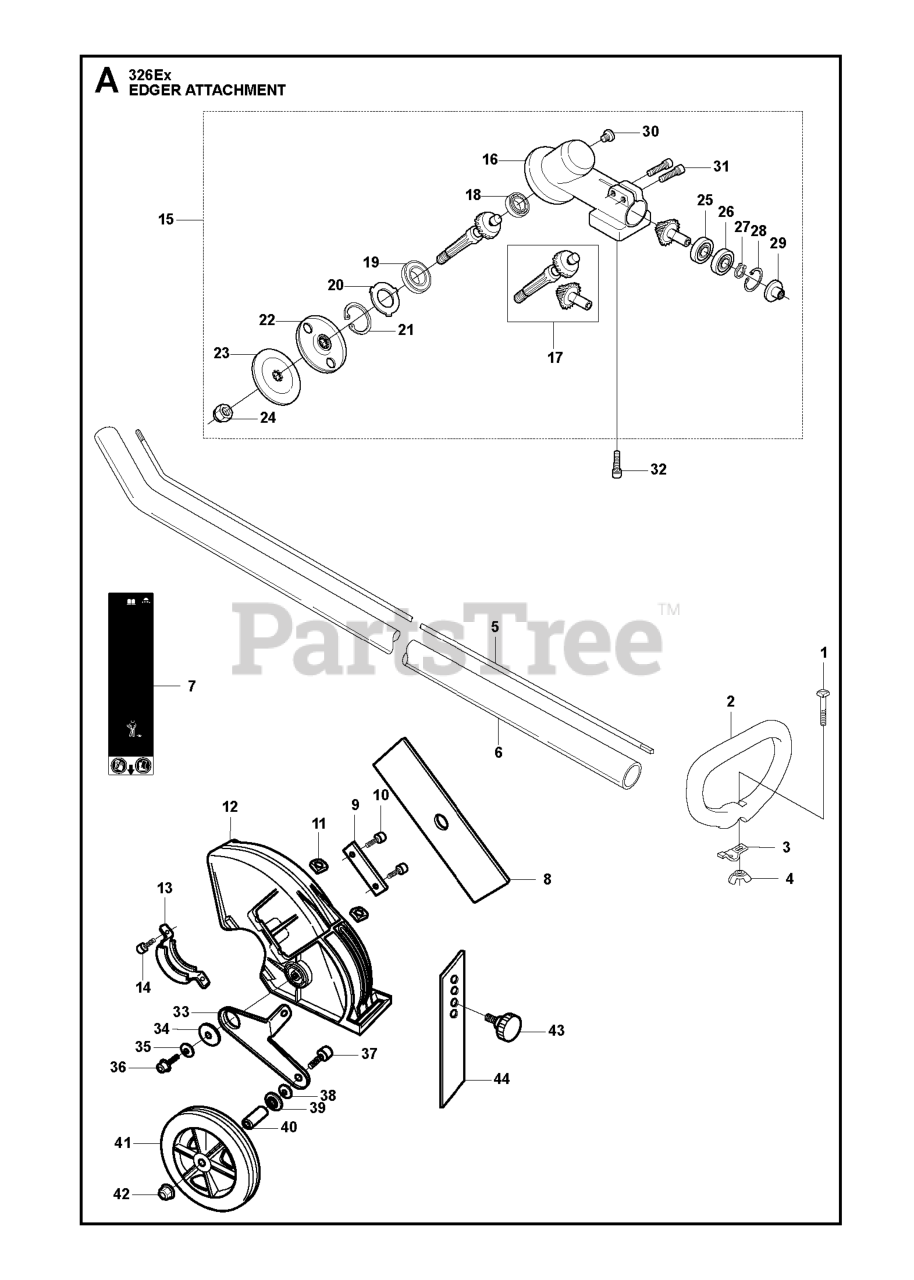

323 EX - Husqvarna Handheld Edger EDGER ATTACHMENT Parts Diagram

Handheld Edger

EDGER ATTACHMENT Parts Diagram

  • Title

1

Husqvarna 503219835

SCREW

$6.49

$

In Stock, Qty 5

0

22

Husqvarna 503895801

FLANGE

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 503210616

SCREW
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

4

Husqvarna 503222601

WING NUT

$7.49

$

In Stock, Qty 5

0

19

Husqvarna 738220119

BALL BEARING 6201-2RS1
(Superseded to 503252301)

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 503234302

WASHER

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 537076802

HANDLE, LOOP
(Superseded to 537076801)

$10.99

$

In Stock, only 1 left!

0

15

Husqvarna 502219206

ANGLE GEAR

$318.99

$

Usually ships in 3-10 days

0

38

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 725546151

SCREW

$7.99

$

In Stock, only 4 left!

0

8

Husqvarna 503848202

BLADE 7.52X2X.125

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 503261501

WASHER

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 503848101

PLATE

$28.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503846501

BLADE PROTECTOR

$79.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503846901

SHAFT
(Superseded to 544844601)

$87.99

$

Usually ships in 3-10 days

0

11

Husqvarna 502197101

NUT

$8.99

$

In Stock, only 2 left!

0

30

Husqvarna 503201501

PLUG

$9.99

$

In Stock, Qty 6

0

17

Husqvarna 503849001

GEAR SET

$318.99

$

Usually ships in 3-10 days

0

26

Husqvarna 738219901

BALL BEARING 609Z

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 735312510

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 503705501

WASHER

$7.99

$

In Stock, only 1 left!

0

27

Husqvarna 735311100

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 503696701

CONNECTOR

$

$

Not available

23

Husqvarna 503702902

FLANGE

$25.99

$

In Stock, only 1 left!

0

41

Husqvarna 503847401

WHEEL, EDGER

$45.99

$

Usually ships in 3-10 days

0

34

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

9

Husqvarna 503847701

PLATE

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537042501

HOLDER
(Superseded to 530038599)

$2.49

$

In Stock, only 3 left!

0

7

Husqvarna 503847801

DECAL, SAFETY

$

$

Not available

31

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

44

Husqvarna 503846801

RUBBER PROTECTOR, EDGER

$28.99

$

In Stock, only 3 left!

0

6

Husqvarna 537038301

PIPE
(Superseded to 537038302)

$121.99

$

Usually ships in 3-10 days

0

42

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 503848001

KNOB

$45.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503853201

GEAR HOUSING

$102.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

10

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 1 left!

0

24

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 5

0

40

Husqvarna 503847301

SPACER

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 1 left!

0

14

Husqvarna 725536856

SCREW

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 503846701

BRACKET

$56.99

$

In Stock, only 1 left!

0
