323 RII - Husqvarna String Trimmer (SN: 20120100001 & Above) SHAFT Parts Diagram

String Trimmer

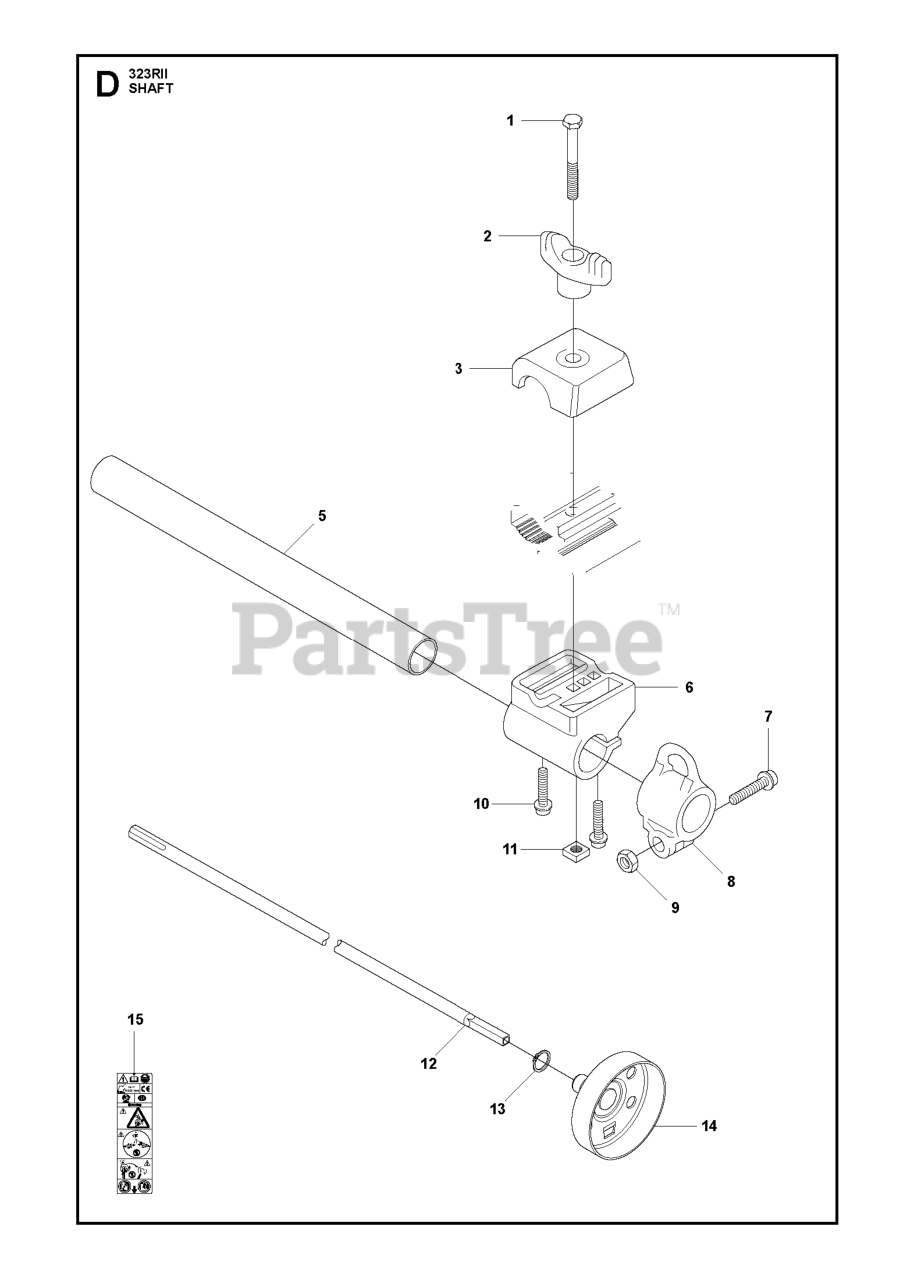

SHAFT Parts Diagram

  • Title

7

Husqvarna 503200716

SCREW
(Superseded to 525755101)

$3.99

$

In Stock, Qty 5

0

15

Husqvarna 589295101

LABEL WARNING TRIMMERS AND BRU

$8.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503722901

BRACKET

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 537237501

CLUTCH DRUM

$45.99

$

In Stock, only 3 left!

0

13

Husqvarna 735311200

RETAINING RING SGA 10

$3.99

$

In Stock, only 1 left!

0

8

Husqvarna 503941001

HARNESS HOLDER

$9.99

$

In Stock, only 2 left!

0

10

Husqvarna 503217525

SCREW

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503879001

KNOB

$7.99

$

In Stock, Qty 8

0

9

Husqvarna 731231401

NUT

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 503888801

DRIVE TUBE ASSEMBLY

$89.99

$

In Stock, only 2 left!

0

6

Husqvarna 503882301

HOLDER

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537234801

DRIVE SHAFT

$31.99

$

In Stock, only 3 left!

0

1

Husqvarna 725238651

SCREW

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 502197101

NUT

$6.49

$

In Stock, Qty 11

0
