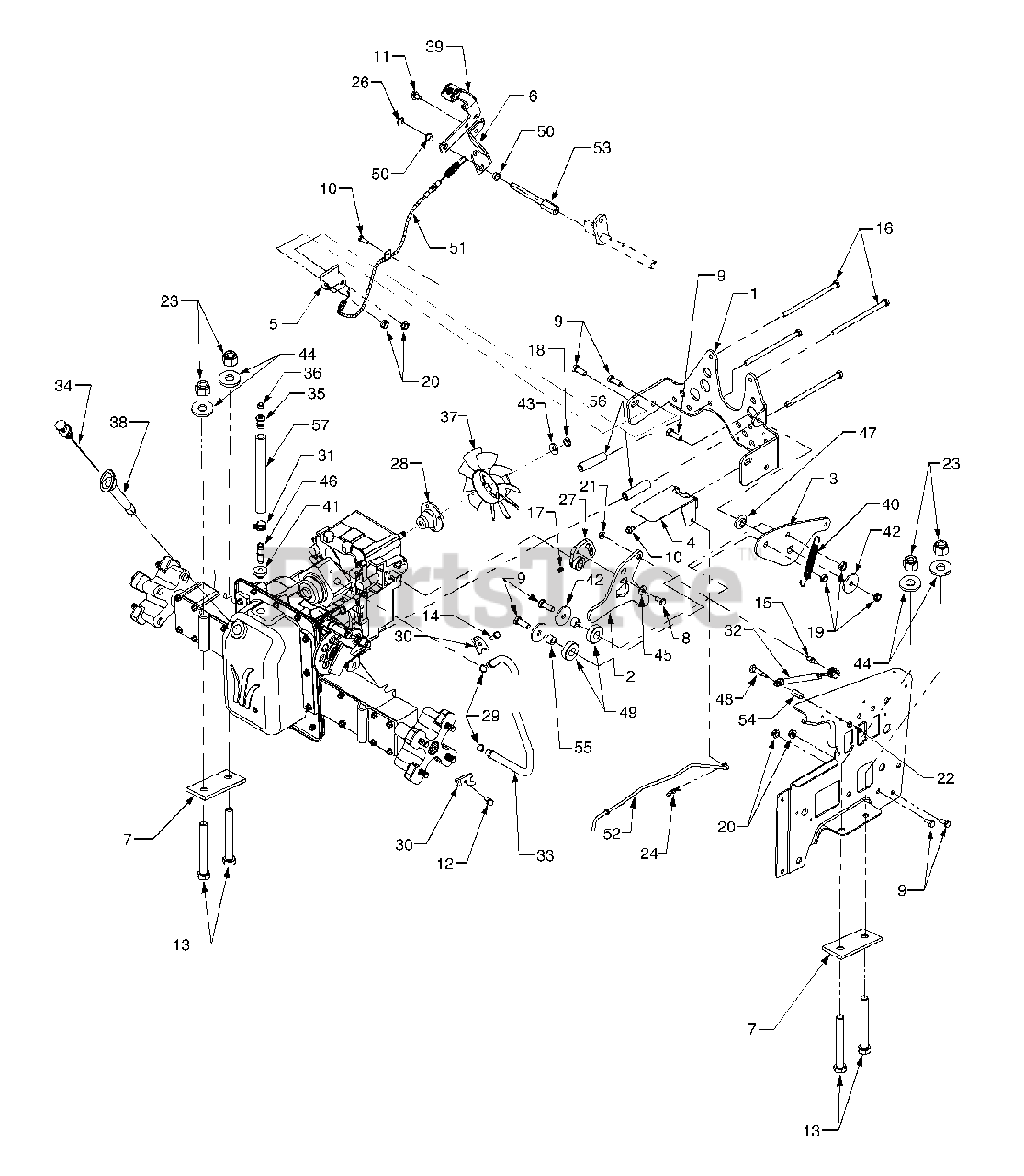

3235 (14A-676-100) - Cub Cadet Garden Tractor (SN: 1J310G & Before) Transmission Mounting And Neutral Linkage Parts Diagram

Garden Tractor

Transmission Mounting And Neutral Linkage Parts Diagram

  • Title

1

Cub Cadet 603-0698

Bracket, Torque

$

$

Not available

2

Cub Cadet 703-3478

Plate, Hydro Neutral Return

$

$

Not available

3

Cub Cadet 703-3477

Link, Neutral Return Bearing

$

$

Not available

4

Cub Cadet 703-3187

Spring Plate, Hydro Bypass
(Superseded to 703-4093-0637)

$30.99

$

In Stock, Qty 6

0

5

Cub Cadet 703-3175

Bracket, Cable Retainer

$

$

Not available

6

Cub Cadet 703-3183

Bracket, Pedal Brace

$

$

Not available

7

Cub Cadet 703-3410

Plate, Bolt Retainer
(Superseded to 703-3410-0637)

Variations

Cub Cadet 703-3410-0637

BOLT PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 710-0433

Screw, Hex Cap, 1/4-20 x .625 GR5 Lock

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0465

Screw, Hex Cap, 1/2-20 x 4.5 GR5

$12.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3170

Ball Screw, 5/16-18 x .56

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-1506

Screw, Hex Wash Hd Tapp 5/16-18 x 5.5 GR5

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3242

Screw, Set, 5/16 x .5

$

$

Not available

18

Cub Cadet 712-0262

Nut, Hex Ctr. Lock Jam, 3/8-24

Note: Used on Tapered Hydro Input Shaft

$4.49

$

In Stock, Qty 17

0

Cub Cadet 712-3059

Nut, Hex Top Lock Jam, 1/2-20

Note: Used on Splined Hydro Input Shaft

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0266

Nut, Hex Ctr. Lock Jam, 3/8-16
(Superseded to 712-0266A)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 12

0

23

Cub Cadet 712-3058

Nut, Hex Insert Lock, 1/2-20
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 18

0

24

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 16

0

26

Cub Cadet 716-0104

E-Ring, .5 Dia Shaft
(Superseded to 916-0104)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 718-3097

Arm, Hydro

$

$

Not available

28

Cub Cadet 748-3099

Adapter, Pump

Note: Used on Tapered Hydro Input Shaft

$

$

Not available

Cub Cadet 748-3093

Adapter, Pump

Note: Used on Splined Hydro Input Shaft

$149.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 721-0459

O-Ring, .426 ID x .566 OD x .070

$8.49

$

In Stock, Qty 6

0

30

Cub Cadet 726-0295

Clamp, Tube

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 726-0324

Clamp, Hose
(Superseded to 926-0324)

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 727-3090

Cylinder, Damper

$100.99

$

In Stock, only 1 left!

0

33

Cub Cadet 727-3139

Tube, Hydro Pickup

$

$

Not available

34

Cub Cadet 727-3148

Dipstick, Transmission

$31.99

$

In Stock, Qty 5

0

35

Cub Cadet 731-1480

Plastic Vent

$16.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 731-1481

Vent Cap

$10.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-3297

Fan, Pump

$40.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-3245

Holder, Dipstick

$34.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 731-3250

Pedal, Diff Lock

$

$

Not available

40

Cub Cadet 732-0429A

Spring, Extension
(Superseded to 932-0429A)

$9.49

$

In Stock, Qty 20+

0

41

Cub Cadet 735-0279

Grommet

$7.99

$

In Stock, only 2 left!

0

42

Cub Cadet 736-0227

Washer, Flat, .390 x 1.5 x .1

$6.99

$

In Stock, Qty 11

0

43

Cub Cadet 736-0105

Washer, Bell, .401 x .87 x .063

Note: Used on Tapered Hydro Input Shaft

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0253

Washer, Bell, .5 x 1.0 x .05

Note: Used on Splined Hydro Input Shaft

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$6.49

$

In Stock, Qty 8

0

45

Cub Cadet 736-3090

Washer, Flat, .26 x .72 x .06

$6.99

$

In Stock, Qty 8

0

46

Cub Cadet 737-3092

Fitting, Tube

$14.99

$

In Stock, only 1 left!

0

47

Cub Cadet 738-0347

Spacer, Shoulder
(Superseded to 938-0347)

$10.99

$

In Stock, Qty 6

0

48

Cub Cadet 738-0572

Shoulder Bolt

$8.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 741-0155

Bearing, Ball
(Superseded to 941-0155)

$25.99

$

In Stock, only 3 left!

0

50

Cub Cadet 741-0491

Bearing, Nylon Flange

$5.49

$

In Stock, Qty 12

0

51

Cub Cadet 746-3081

Cable, Diff Lock
(Superseded to 946-3081)

$58.99

$

In Stock, only 2 left!

0

52

Cub Cadet 747-3424

Rod, Pump Bypass

$60.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 747-3366

Shaft, Diff Lock

$

$

Not available

54

Cub Cadet 750-0434

Spacer, .375 x .5 x 1.02

$7.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 750-0497

Spacer, .375 x .624 x .445

$11.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 750-3212

Spacer, Hydro, .3223 x .60 x 2.44

$

$

Not available

57

Cub Cadet 751-0588-8

Fuel Line 8" Lg

$13.99

$

Usually ships in 3-6 days

0
