3242 A99 - Electrolux/AYP Walk-Behind Mower (1999) POWER PROPELLED LAWN MOWER Parts Diagram

Walk-Behind Mower

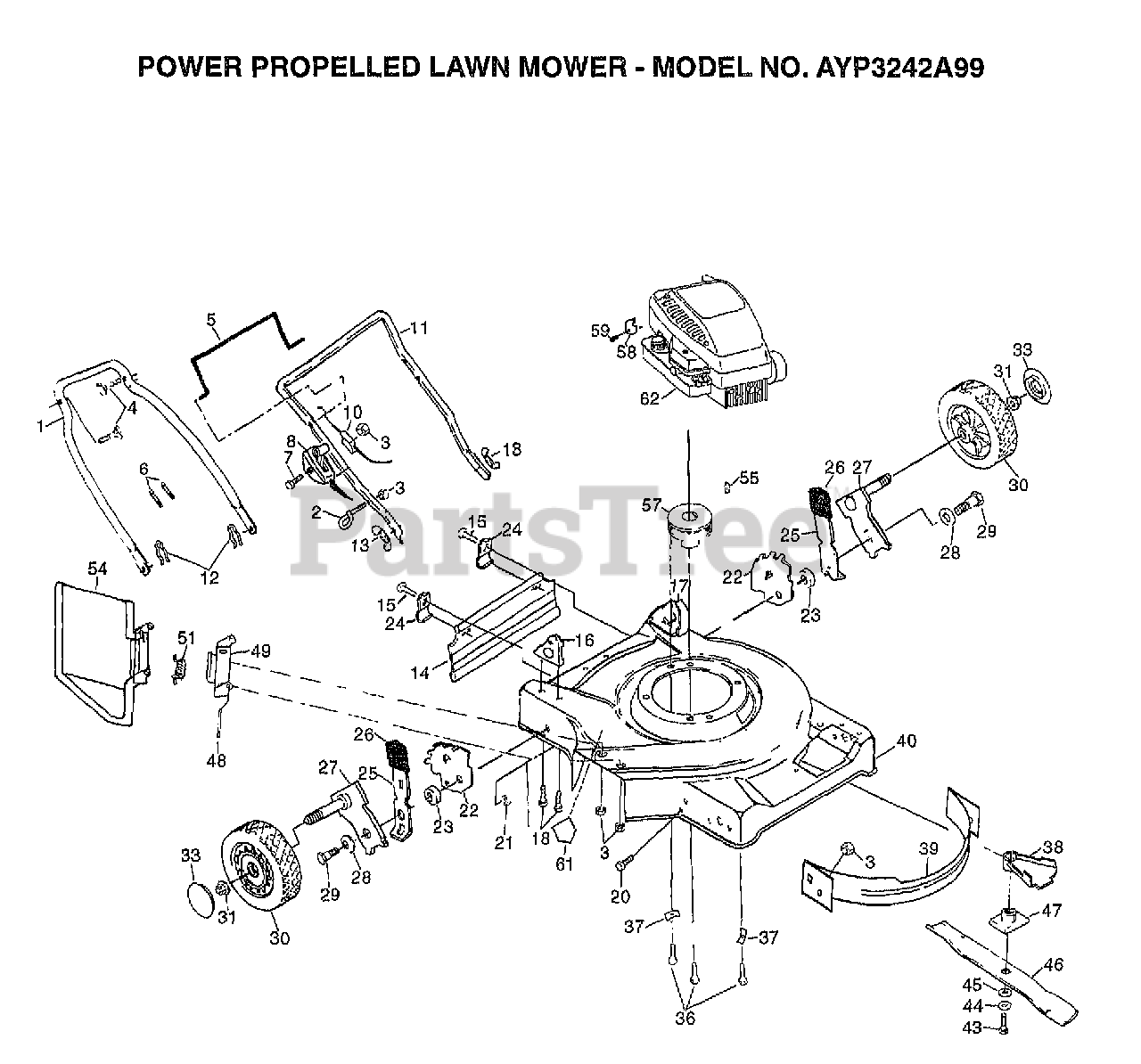

POWER PROPELLED LAWN MOWER Parts Diagram

  • Title

1

Electrolux/AYP 157081X479

HANDLE LOWER
(Superseded to 532157081)

$

$

Not available

2

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 8

0

3

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

4

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

5

Electrolux/AYP 145793

BAIL.CNTRL.STD.BL
(Superseded to 532145793)

$10.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 700644

CONTROL.THL.49.35
(Superseded to 532700644)

$17.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$12.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 165452X479

HANLDE.UPPER.STAND.
(Superseded to 532160223)

$

$

Not available

12

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 10

0

14

Electrolux/AYP 140540

SKIRT.REAR.FGD.22
(Superseded to 532413160)

$12.99

$

In Stock, Qty 8

0

15

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 151665X479

HDLE BRKT ASSY.RH
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 151667X479

HDLE BRKT ASSY LH
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 149741

SCREW 5/16-18X3/4
(Superseded to 532149741)

$7.49

$

In Stock, Qty 6

0

20

Electrolux/AYP 74100412

SCREW
(Superseded to 874100412)

$

$

Not available

21

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 700325X007

BRACKET.ADJ.9POS.
(Superseded to 532700325)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 146630

SPACER.HEIGHT.ADJ
(Superseded to 532401629)

$6.49

$

In Stock, Qty 5

0

24

Electrolux/AYP 87584X004

"BRKT,DEFL PM"
(Superseded to 532192301)

$

$

Not available

25

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

26

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 3 left!

0

27

Electrolux/AYP 145935X004

ARM.AXLE.ASM.BZP.
(Superseded to 532145935)

$

$

Not available

28

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 142748

BOLT SHLD 3/8-16
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

30

Electrolux/AYP 146247

WHEEL.8X2.PR.RAD.
(Superseded to 532151155)

$31.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 83923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

36

Electrolux/AYP 150406

BOLT.ENG.3/8-16
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

37

Electrolux/AYP 851201X004

WASHER

$

$

Not available

38

Electrolux/AYP 134612

SUB= 48283

$

$

Not available

39

Electrolux/AYP 165549

KIT.BAFFLE.FRT.HSG.22SD

$

$

Not available

40

Electrolux/AYP 152712

MOWER HSG KIT

$129.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 141114

"BLADE.MULCH.22"""
(Superseded to 532141114)

$21.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 147286

ROD.HINGE.COMBI-C
(Superseded to 532147286)

$8.99

$

In Stock, Qty 12

0

49

Electrolux/AYP 147775

BRACKET.HINGE.W/F
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 851855

"SPRING,TORSION"

$2.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 851750

SUB= 532851750

$

$

Not available

55

Electrolux/AYP 87677

HI PRO KEY PM
(Superseded to 532087677)

$

$

Not available

57

Electrolux/AYP 84596

ENGINE.PULLEY.FWG
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 111190X

CABLE CLAMP
(Superseded to 532111190)

$

$

Not available

59

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 85463

DECAL-DANGER PM
(Superseded to 582940001)

$4.99

$

In Stock, only 1 left!

0

62

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

62

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

Electrolux/AYP 83976X479

"BAFFLE,REAR"

$

$

Not available

Electrolux/AYP 161058

DECAL.WARNING
(Superseded to 532161058)

$6.49

$

In Stock, only 1 left!

0

Electrolux/AYP 167083

MANUAL.O.3242A99

$3.49

$

Usually ships in 3-10 days

0
