325 (190-325-100) - Cub Cadet 60" Mower Deck att Gauge heels Parts Diagram

60" Mower Deck

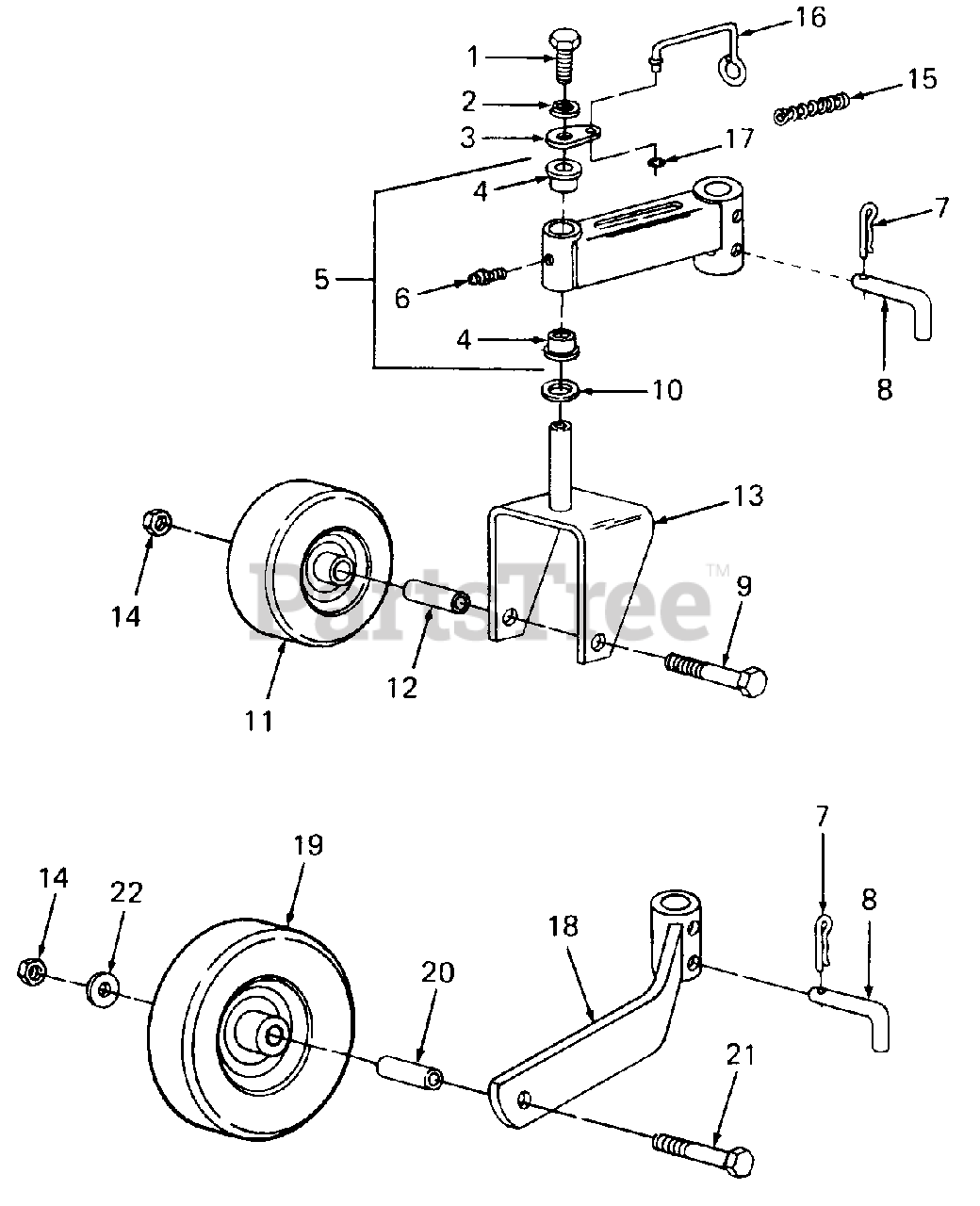

Gauge heels Parts Diagram

  • Title

1

Cub Cadet 710-3000

Screw,Hex Cap, 3/8-16 X .75, Lg
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

2

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet HA-20248

Bracket, Wheel Return

$

$

Not available

4

Cub Cadet HA-12976

Bushing, Flange
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

5

Cub Cadet HA-20239

Mounting Assy, Front Caster & Bushings

$

$

Not available

6

Cub Cadet 737-0146

Fitting, Grease

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$6.49

$

In Stock, only 2 left!

0

8

Cub Cadet HA-5736

Pin, Wheel Axle

$

$

Not available

9

Cub Cadet 710-0382

Screw, Hex Cap, 1/2-13 X 5.0 Lg GR5

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet HA-3396

Washer, Flat, .765 ID X 1.5 OD X .0598 Thk
(Superseded to 936-0445)

$

$

Not available

11

Cub Cadet HA-17866

Wheel, Front Gauge

$

$

Not available

12

Cub Cadet HA-17889

Spacer, Wheel

$21.99

$

In Stock, only 2 left!

0

13

Cub Cadet HA-20244

Bracket, Front Caster

Variations

Cub Cadet HA-20244-0498

BRACKET-FRONT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

14

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet HA-21316

Spring, Compression
(Superseded to 732-0583)

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HA-20247

Rod, Wheel Return

$

$

Not available

17

Cub Cadet HA-20257

Ring, Push-on Retainer, 1/4
(Superseded to 926-0106)

$

$

Not available

18

Cub Cadet HA-20250

Bracket, Rear Gauge Wheel

$

$

Not available

19

Cub Cadet HA-20252

Wheel, Rear Gauge, 8"
(Superseded to IH-474104-R92)

$

$

Not available

20

Cub Cadet HA-15725

Spacer

$

$

Not available

21

Cub Cadet 710-0496

Screw, Hex Cap, 1/2-13 X 4.5 Lg GR5
(Superseded to 710-1807)

$10.99

$

In Stock, only 1 left!

0

22

Cub Cadet HA-GM120390

Washer, Flat, 9/16 X 1-3/8 X .109
(Superseded to 736-3042)

$10.99

$

Usually ships in 3-6 days

0
