325 E - Husqvarna Handheld Edger (SN: 19994000001 - 20010100000) CYLINDER PISTON Parts Diagram

Handheld Edger

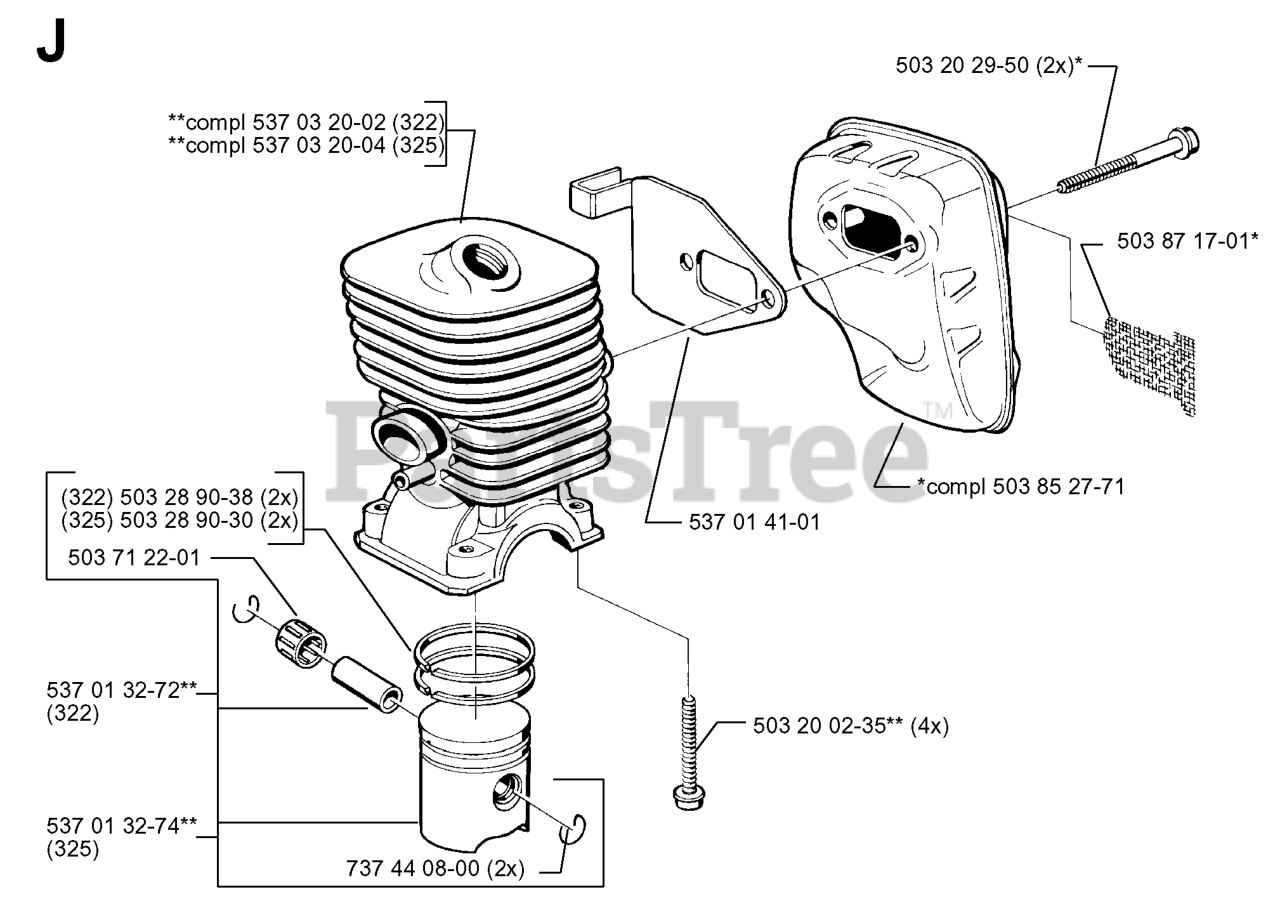

CYLINDER PISTON Parts Diagram

  • Title

503 87 17-01

Husqvarna 503871701

SCREEN

$10.99

$

Usually ships in 3-10 days

0

537 01 32-72

Husqvarna 537013272

PISTON

Note: 322

$

$

Not available

537 01 41-01

Husqvarna 537014101

GASKET

$5.99

$

In Stock, only 3 left!

0

503 28 90-38

Husqvarna 503289038

PISTON RING

Note: 2X 322

$

$

Not available

537 01 32-74

Husqvarna 537013274

PISTON ASSY
(Superseded to 537405902)

Note: 325

$101.99

$

In Stock, only 2 left!

0

503 20 02-35

Husqvarna 503200235

SCREW
(Superseded to 725533755)

Note: 4X

$4.99

$

In Stock, Qty 10

0

503 20 29-50

Husqvarna 503202950

SCREW

Note: 2X

$4.99

$

Usually ships in 3-10 days

0

503 85 27-71

Husqvarna 503852771

MUFFLER
(Superseded to 537039405)

$170.99

$

In Stock, Qty 5

0

737 44 08-00

Husqvarna 737440800

CLIP RING

Note: 2X

$4.99

$

Usually ships in 3-10 days

0

537 03 20-02

Husqvarna 537032002

CYLINDER

Note: 322

$

$

Not available

503 28 90-30

Husqvarna 503289030

PISTON RING
(Superseded to 503289041)

Note: 2X 325

$20.99

$

In Stock, only 2 left!

0

537 03 20-04

Husqvarna 537032004

CYLINDER
(Superseded to 537032008)

Note: 325

$159.99

$

Usually ships in 3-10 days

0

503 71 22-01

Husqvarna 503712201

BEARING

$13.99

$

Usually ships in 3-10 days

0
