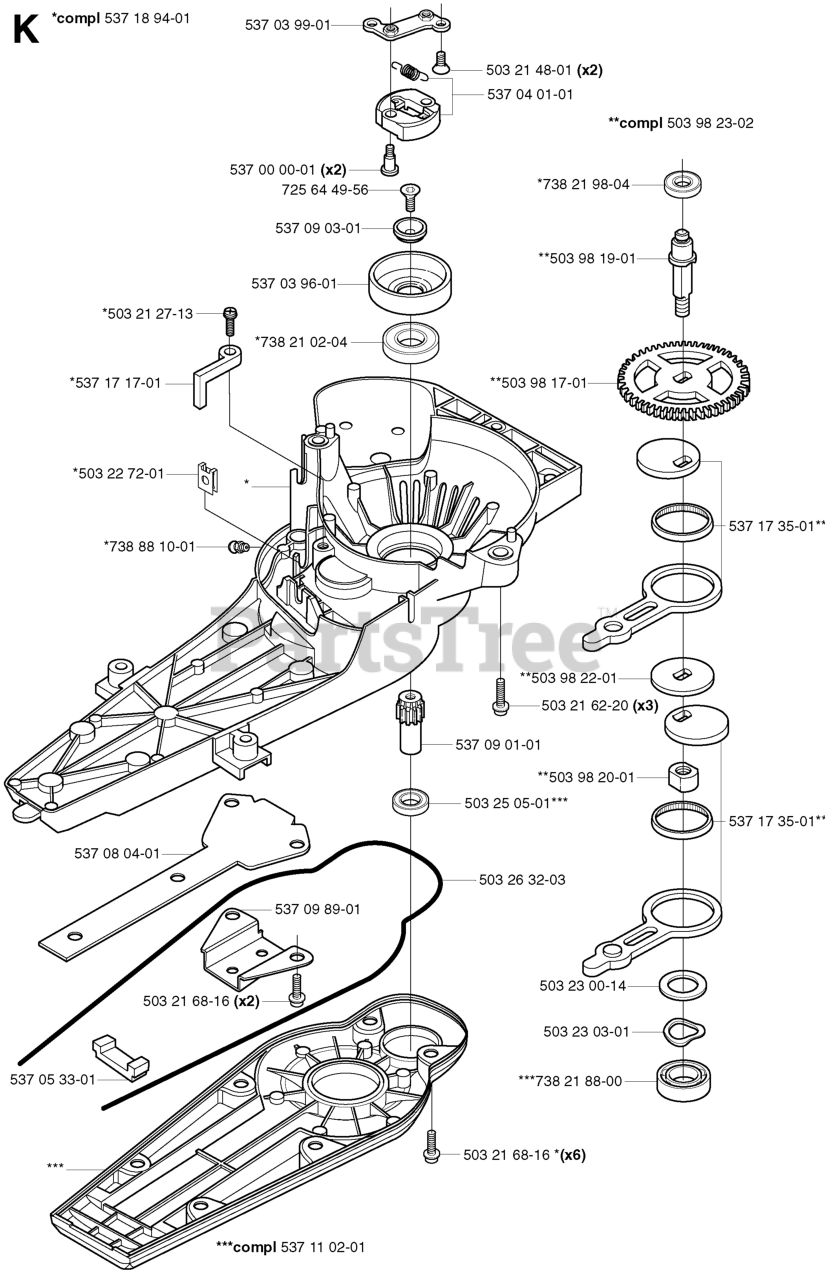

325 HD 60 X - Husqvarna Hedge Trimmer (SN: 20022200001 - 20062300000) GEAR HOUSING Parts Diagram

Hedge Trimmer

GEAR HOUSING Parts Diagram

  • Title

503 21 68-16

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

503 22 72-01

Husqvarna 503227201

NUT

$6.49

$

In Stock, Qty 8

0

503 98 23-02

Husqvarna 503982302

Shaft

$

$

Not available

537 09 01-01

Husqvarna 537090101

SHAFT

$

$

Not available

503 98 17-01

Husqvarna 503981701

GEAR

$68.99

$

Usually ships in 3-10 days

0

503 21 62-20

Husqvarna 503216220

SCREW W/ LOCKING FLUID

$4.99

$

In Stock, Qty 20+

0

537 17 35-01

Husqvarna 537173501

CONNECTING ROD

$

$

Not available

537 17 17-01

Husqvarna 537171701

HOLDER

$

$

Not available

503 23 00-14

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$6.99

$

In Stock, Qty 12

0

503 21 27-13

Husqvarna 503212713

SCREW

$4.99

$

Usually ships in 3-10 days

0

738 21 02-04

Husqvarna 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

503 21 68-16

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

537 03 99-01

Husqvarna 537039901

RP HUB

$

$

Not available

537 18 94-01

Husqvarna 537189401

GEAR HOUSING
(Superseded to 537189404)

$148.99

$

Usually ships in 3-10 days

0

537 08 04-01

Husqvarna 537080401

PLATE

$9.49

$

Usually ships in 3-10 days

0

503 98 19-01

Husqvarna 503981901

SHAFT

$20.99

$

Usually ships in 3-10 days

0

537 09 89-01

Husqvarna 537098901

PLATE

$9.49

$

Usually ships in 3-10 days

0

503 26 32-03

Husqvarna 503263203

GASKET

$5.99

$

Usually ships in 3-10 days

0

503 23 03-01

Husqvarna 503230301

WASHER

$5.99

$

Usually ships in 3-10 days

0

738 21 88-00

Husqvarna 738218800

BEARING

$20.99

$

Usually ships in 3-10 days

0

738 88 10-01

Husqvarna 738881001

GREASE NIPPLE

$10.99

$

Usually ships in 3-10 days

0

503 98 20-01

Husqvarna 503982001

NUT

$6.99

$

Usually ships in 3-10 days

0

537 04 01-01

Husqvarna 537040101

CLUTCH
(Superseded to 544083201)

$74.99

$

Usually ships in 3-10 days

0

537 05 33-01

Husqvarna 537053301

SEALING

$6.99

$

In Stock, only 1 left!

0

537 00 00-01

Husqvarna 537000001

SCREW

$

$

Not available

503 21 48-01

503214801

SCREW

$

$

Not available

537 11 02-01

Husqvarna 537110201

COVER

$102.99

$

Usually ships in 3-10 days

0

725 64 49-56

Husqvarna 725644956

SCREW

$

$

Not available

537 09 03-01

Husqvarna 537090301

WASHER

$

$

Not available

503 25 05-01

Husqvarna 503250501

BEARING

$22.99

$

In Stock, only 1 left!

0

738 21 98-04

Husqvarna 738219804

BALL BEARING

$20.99

$

In Stock, only 1 left!

0

503 98 22-01

Husqvarna 503982201

WASHER

$9.49

$

Usually ships in 3-10 days

0

537 03 96-01

Husqvarna 537039601

CLUTCH DRUM

$31.99

$

Usually ships in 3-10 days

0
