325 HD 60 X - Husqvarna Hedge Trimmer (SN: 20090400001 & Above) GEAR HOUSING Parts Diagram

Hedge Trimmer

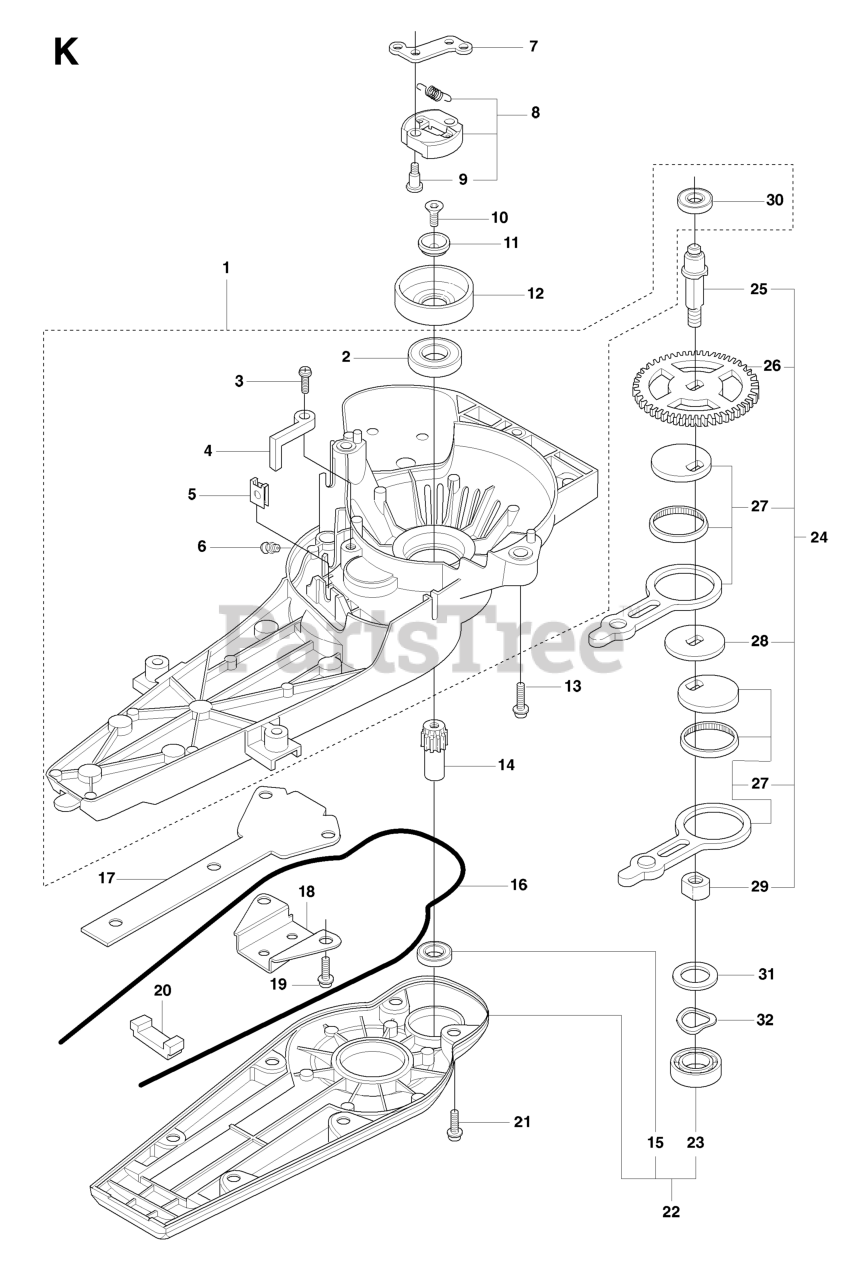

GEAR HOUSING Parts Diagram

  • Title

15

Husqvarna 503250501

BEARING

$22.99

$

In Stock, only 1 left!

0

1

Husqvarna 537189404

GEAR HOUSING

$148.99

$

Usually ships in 3-10 days

0

30

Husqvarna 738219804

BALL BEARING

$20.99

$

In Stock, only 1 left!

0

19

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 537090101

SHAFT

$

$

Not available

4

Husqvarna 537171701

HOLDER

$

$

Not available

20

Husqvarna 537053301

SEALING

$6.99

$

In Stock, only 1 left!

0

16

Husqvarna 503263203

GASKET

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 537110201

COVER

$102.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503227201

NUT

$6.49

$

In Stock, Qty 8

0

13

Husqvarna 503216220

SCREW W/ LOCKING FLUID

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 544083201

CLUTCH CPL

$74.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725644956

SCREW

$

$

Not available

9

Husqvarna 503842902

SCREW

$6.99

$

In Stock, Qty 8

0

21

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 738881001

GREASE NIPPLE

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$6.99

$

In Stock, Qty 12

0

3

Husqvarna 503212713

SCREW

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537039601

CLUTCH DRUM

$31.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503230301

WASHER

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 537098901

PLATE

$9.49

$

Usually ships in 3-10 days

0

27

Husqvarna 537173502

CONNECTING ROD

$62.99

$

In Stock, only 3 left!

0

24

Husqvarna 503982303

SHAFT

$182.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537080401

PLATE

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 503981901

SHAFT

$20.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503982001

NUT

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503981701

GEAR

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537090301

WASHER

$

$

Not available

28

Husqvarna 503982201

WASHER

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 738218800

BEARING

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537242501

CLUTCH YOKE

$

$

Not available
