325 S25 - Husqvarna Backpack Sprayer (2011-05) FUEL TANK Parts Diagram

Backpack Sprayer

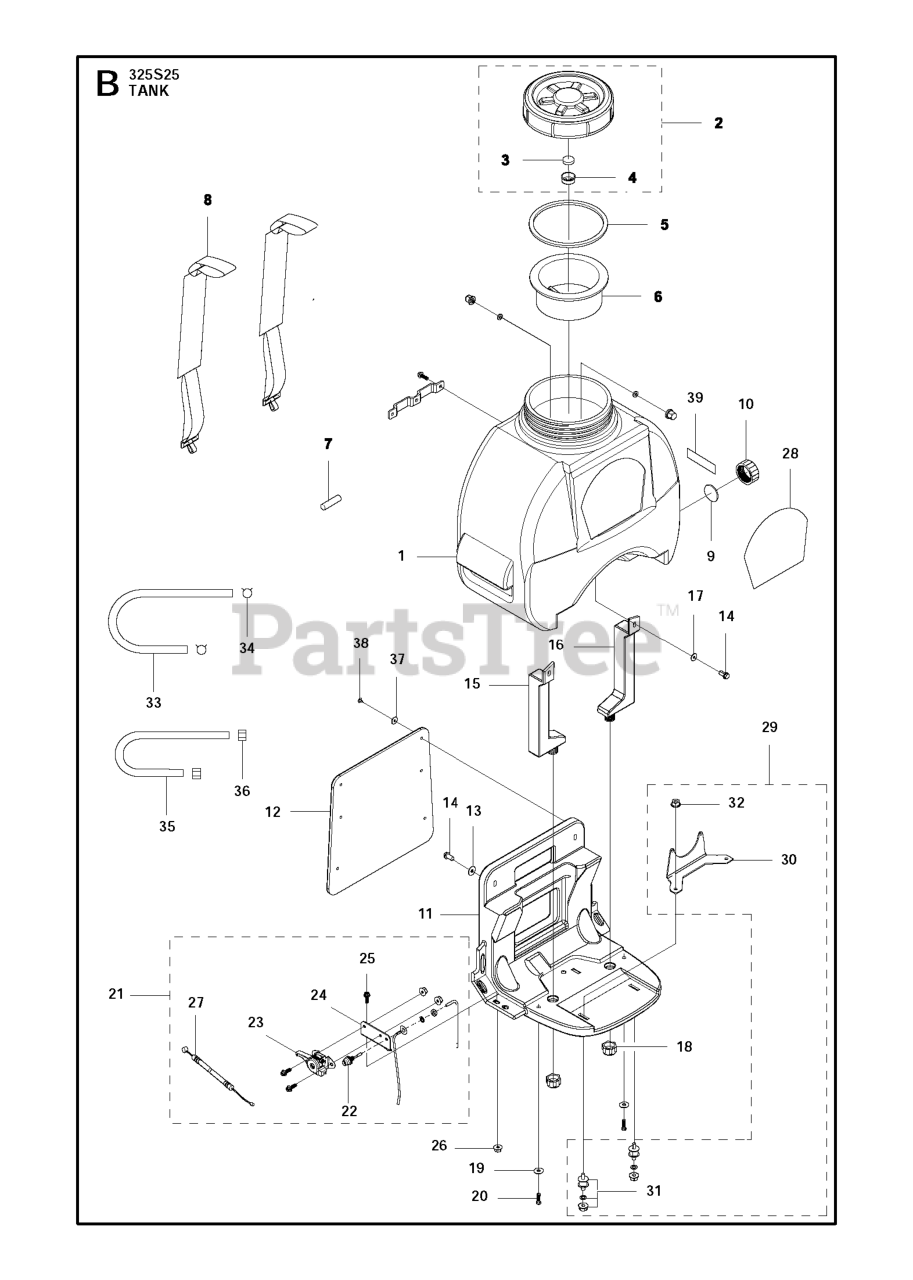

FUEL TANK Parts Diagram

  • Title

28

Husqvarna 574121902

NAME LABEL

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574119801

PACKING

$

$

Not available

13

Husqvarna 574120601

WASHER-S

$

$

Not available

27

Husqvarna 510937301

CABLE COMP

$9.99

$

Usually ships in 3-10 days

0

35

Husqvarna 574122601

BACKWATER PIPE

$

$

Not available

21

Husqvarna 574121401

THROTTLE SET

$

$

Not available

4

Husqvarna 574119701

CAP OF SPONGE

$

$

Not available

32

Husqvarna 574122301

NUT

$

$

Not available

24

Husqvarna 574121601

STAY

$

$

Not available

17

Husqvarna 574121001

WASHER-I

$

$

Not available

25

Husqvarna 574121701

BOLT

$

$

Not available

10

Husqvarna 574120302

CAP

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 574120501

CUSHION PAD

$

$

Not available

2

Husqvarna 574119502

CAP CHEMICAL
(Superseded to 574119501)

$

$

Not available

9

Husqvarna 574120201

CAP OF PACKING

$

$

Not available

3

Husqvarna 574119601

SPONGE

$

$

Not available

8

Husqvarna 574120101

KNAPSACK STRAP

$

$

Not available

30

Husqvarna 574122101

STAY ENGINE

$

$

Not available

15

Husqvarna 574120802

STAY (L)

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 574121501

LEVER

$

$

Not available

39

Husqvarna 574123001

ATTENT LABEL

$

$

Not available

33

Husqvarna 574122401

INHAL PIPE

$

$

Not available

11

Husqvarna 574120402

BASE

$60.99

$

Usually ships in 3-10 days

0

22

Husqvarna 526267601

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 574120902

STAY (R)

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 574122901

BOLT

$

$

Not available

1

Husqvarna 574119401

CHEMICAL TANK 25L (FAT TANK)

$

$

Not available

26

Husqvarna 574121801

NUT

$

$

Not available

31

Husqvarna 574122201

BUFFER

$

$

Not available

14

Husqvarna 574120701

BOLT

$

$

Not available

18

Husqvarna 574121101

NUT

$

$

Not available

19

Husqvarna 574121201

WASHER

$

$

Not available

29

Husqvarna 574122001

STAY ENGINE ASSY

$

$

Not available

6

Husqvarna 574119901

STRAINER

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 574122801

WASHER-I

$

$

Not available

36

Husqvarna 574122701

PIPE CLIP

$

$

Not available

20

Husqvarna 574121301

BOLT

$

$

Not available

34

Husqvarna 574122501

PIPE CLIP

$

$

Not available

7

Husqvarna 574120001

SAFE RING

$

$

Not available
