325 S25 - Husqvarna Backpack Sprayer (2011-05) HYDRAULIC PUMP - MOTOR Parts Diagram

Backpack Sprayer

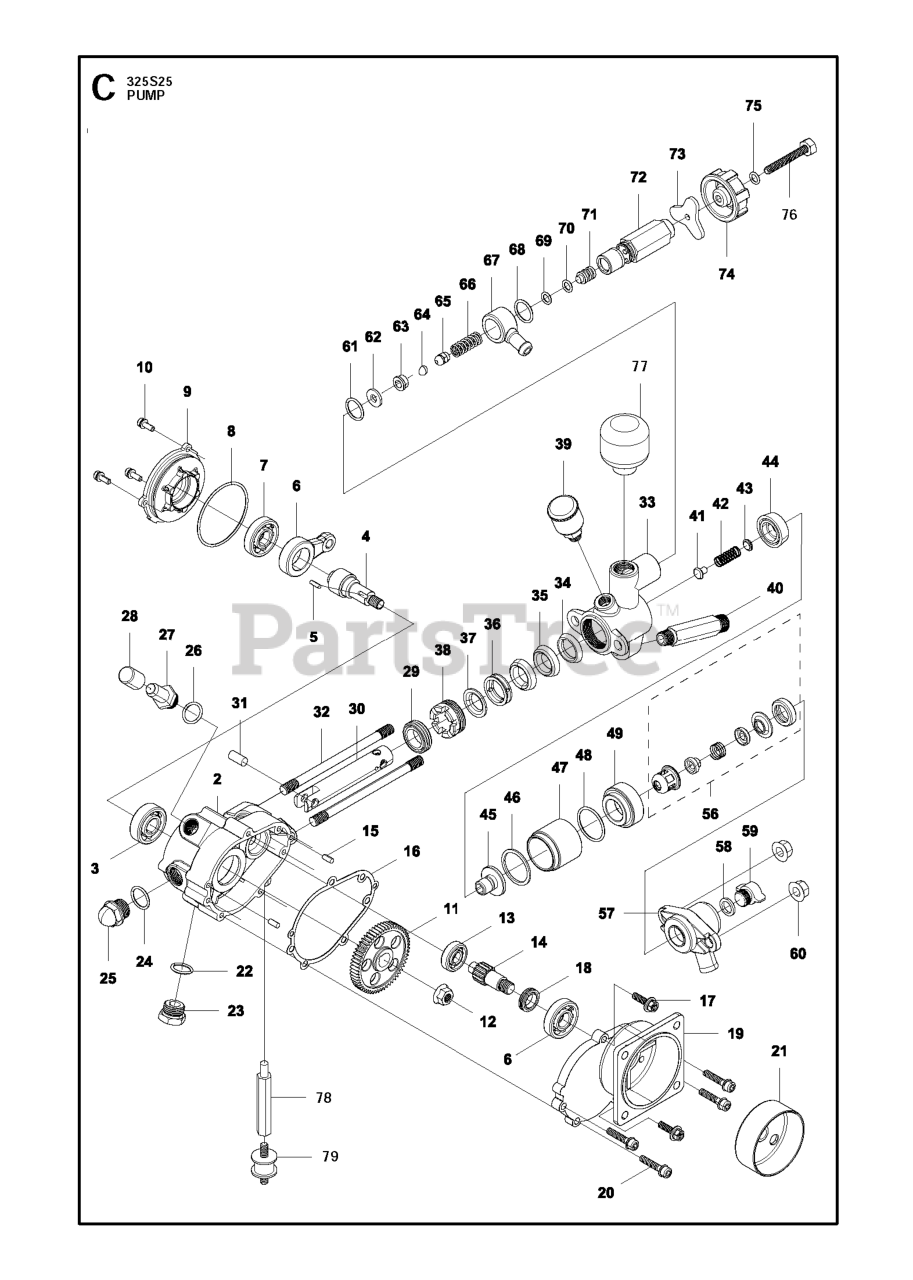

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

42

Husqvarna 574127101

SPRING

$

$

Not available

30

Husqvarna 574125901

PLUNGER (PISTON)

$

$

Not available

68

Husqvarna 574128501

SET RING

$

$

Not available

74

Husqvarna 574128801

PRESSURE PLATE

$

$

Not available

62

Husqvarna 574129201

WASHER

$

$

Not available

19

Husqvarna 574124801

ENGINE COVER

$

$

Not available

79

Husqvarna 574130201

RUBBER CRANKCASE STAND

$

$

Not available

31

Husqvarna 574126001

PISTON PIN

$

$

Not available

58

Husqvarna 574128101

O-RING

$

$

Not available

56

Husqvarna 574127901

VALVE ASSY

$

$

Not available

15

Husqvarna 574124401

PUMP BODY PIN

$

$

Not available

60

Husqvarna 574128301

NUT

$

$

Not available

36

Husqvarna 574126501

GREASE PACKING

$

$

Not available

24

Husqvarna 574125301

O-RING

$

$

Not available

27

Husqvarna 574125601

OIL BOLT

$

$

Not available

35

Husqvarna 574126401

V-PACKING ASSY

$

$

Not available

71

Husqvarna 574129901

REGULATOR SHAFT

$

$

Not available

5

Husqvarna 574123401

KEY

$

$

Not available

73

Husqvarna 574128701

SET PLATE

$

$

Not available

64

Husqvarna 574129501

PRESSURE BALL

$

$

Not available

23

Husqvarna 574125201

SCREW

$

$

Not available

26

Husqvarna 574125501

O-RING

$

$

Not available

77

Husqvarna 574130001

AIR CHAMBER

$

$

Not available

28

Husqvarna 574125701

GROMMET

$

$

Not available

10

Husqvarna 574123901

SCREW

$

$

Not available

44

Husqvarna 574127301

HARD RUBBER

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 574124501

PACKING

$

$

Not available

76

Husqvarna 574129001

SET BOLT

$

$

Not available

9

Husqvarna 574123801

PUMP COVER

$

$

Not available

3

Husqvarna 574123201

BEARING NO.6201

$

$

Not available

59

Husqvarna 574128201

WING NUT

$

$

Not available

72

Husqvarna 574128601

PRESSURE PIPE

$

$

Not available

4

Husqvarna 574123301

CRANKSHAFT

$

$

Not available

61

Husqvarna 574128401

O-RING

$

$

Not available

25

Husqvarna 574125401

OIL MIRROR

$

$

Not available

37

Husqvarna 574126601

U-PACKING

$

$

Not available

21

Husqvarna 574125001

CLUTCH DRUM

$

$

Not available

40

Husqvarna 574126901

OUTLET BOLT

$

$

Not available

63

Husqvarna 574129401

PACKING

$

$

Not available

67

Husqvarna 574129101

OVERFLOW CONNECTOR

$

$

Not available

75

Husqvarna 574128901

SET WASHER (2/set)

$

$

Not available

11

Husqvarna 574124001

REDUCTION GEAR

$

$

Not available

43

Husqvarna 574127201

PLATE

$1.49

$

Usually ships in 3-10 days

0

78

Husqvarna 574130101

STRUT BOLT

$

$

Not available

32

Husqvarna 574126101

BODY SCREW

$

$

Not available

12

Husqvarna 574124101

NUT

$

$

Not available

69

Husqvarna 574129801

O-RING

$

$

Not available

13

Husqvarna 574124201

BEARING NO.609

$

$

Not available

29

Husqvarna 574125801

OIL SEAL

$

$

Not available

70

Husqvarna 574129801

O-RING

$

$

Not available

2

Husqvarna 574123101

PUMP BODY

$

$

Not available

47

Husqvarna 574127601

SLEEVE

$

$

Not available

49

Husqvarna 574127801

VALVE SEAT

$

$

Not available

14

Husqvarna 574124301

PINION SHAFT

$

$

Not available

48

Husqvarna 574127701

O-RING

$

$

Not available

46

Husqvarna 574127501

PACKING

$

$

Not available

41

Husqvarna 574127001

SPRING SEAT

$

$

Not available

17

Husqvarna 574124601

SCREW

$

$

Not available

38

Husqvarna 574126701

ADJUSTING RING

$

$

Not available

20

Husqvarna 574124901

SCREW

$

$

Not available

39

Husqvarna 574126801

GREASE CUP ASSY

$

$

Not available

45

Husqvarna 574127401

PLUNGER SCREW

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574123601

BEARING NO.6001

$

$

Not available

6

Husqvarna 574123501

CONNECTING

$

$

Not available

18

Husqvarna 574124701

OIL SEAL

$

$

Not available

65

Husqvarna 574129601

SPRING SEAT

$

$

Not available

57

Husqvarna 574128001

SUCTION CHAMBER

$

$

Not available

66

Husqvarna 574129701

PRESSURE SPRING

$

$

Not available

22

Husqvarna 574125101

O-RING

$

$

Not available

34

Husqvarna 574126301

V-PACKING

$

$

Not available

8

Husqvarna 574123701

O-RING

$

$

Not available

33

Husqvarna 574126201

CYLINDER

$

$

Not available
