326 C - Husqvarna String Trimmer (SN: 20041000001 - 20061400000) CYLINDER PISTON Parts Diagram

String Trimmer

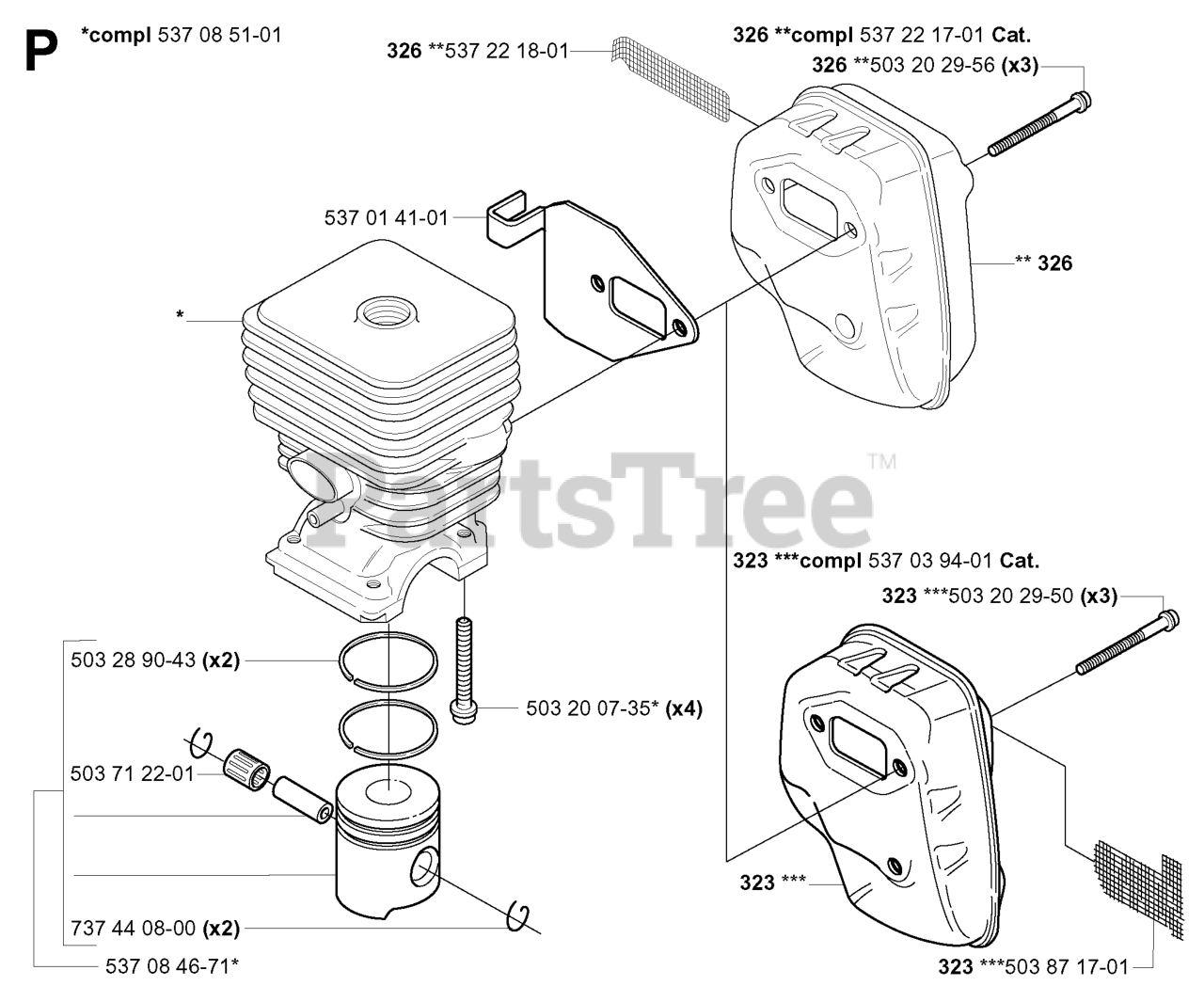

CYLINDER PISTON Parts Diagram

  • Title

503 71 22-01

Husqvarna 503712201

BEARING

$13.99

$

Usually ships in 3-10 days

0

537 22 17-01

Husqvarna 537221701

MUFFLER
(Superseded to 537221703)

Note: 326 CAT.

$

$

Not available

503 20 29-56

Husqvarna 503202956

SCREW

Note: 326

$5.99

$

In Stock, only 2 left!

0

537 01 41-01

Husqvarna 537014101

GASKET

$5.99

$

In Stock, only 3 left!

0

503 87 17-01

Husqvarna 503871701

SCREEN

Note: 323

$10.99

$

Usually ships in 3-10 days

0

503 20 29-50

Husqvarna 503202950

SCREW

Note: 323

$4.99

$

Usually ships in 3-10 days

0

537 08 51-01

Husqvarna 537085101

CYLINDER
(Superseded to 537085103)

$239.99

$

Usually ships in 3-10 days

0

503 28 90-43

Husqvarna 503289043

PISTON RING

$15.99

$

In Stock, only 2 left!

0

537 22 18-01

Husqvarna 537221801

SPARK ARRESTOR SCREEN

Note: 326

$8.49

$

Usually ships in 3-10 days

0

537 08 46-71

Husqvarna 537084671

PISTON
(Superseded to 537405902)

$101.99

$

In Stock, only 2 left!

0

737 44 08-00

Husqvarna 737440800

CLIP RING

$4.99

$

Usually ships in 3-10 days

0

537 03 94-01

Husqvarna 537039401

MUFFLER
(Superseded to 537039405)

Note: 323 CAT.

$170.99

$

In Stock, Qty 5

0

503 20 07-35

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$4.99

$

In Stock, only 2 left!

0
