326 ES - Husqvarna Handheld Edger (2008-04) Gearbox / Handle / Drive Shaft Parts Diagram

Handheld Edger

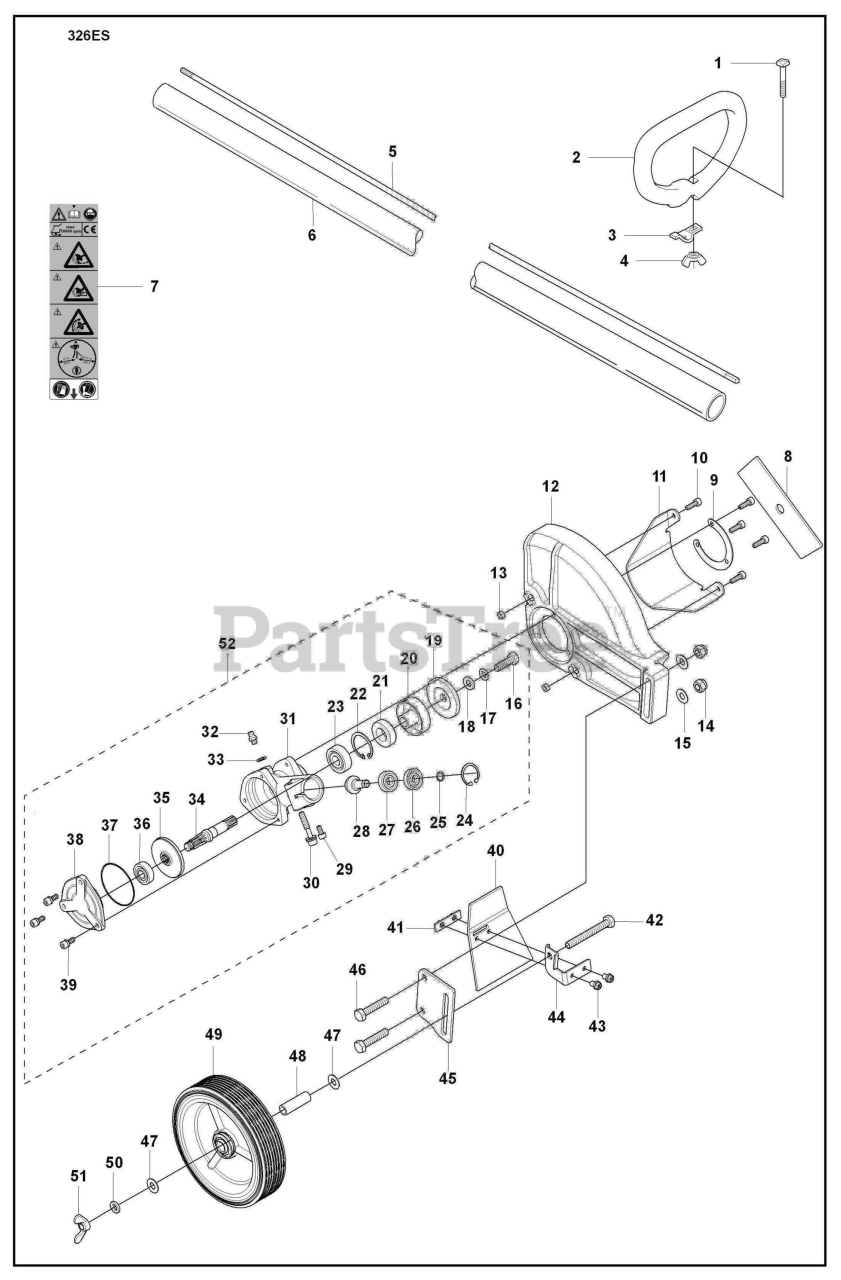

Gearbox / Handle / Drive Shaft Parts Diagram

  • Title

1

Husqvarna 503219835

SCREW

$6.49

$

In Stock, Qty 5

0

2

Husqvarna 537076802

HANDLE, LOOP
(Superseded to 537076801)

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537042501

HOLDER
(Superseded to 530038599)

$2.49

$

In Stock, only 3 left!

0

4

Husqvarna 503222601

WING NUT

$7.49

$

In Stock, Qty 5

0

5

Husqvarna 537234801

DRIVE SHAFT

$87.99

$

In Stock, only 3 left!

0

6

Husqvarna 503888801

DRIVE TUBE ASSEMBLY

$37.99

$

In Stock, Qty 10

0

7

Husqvarna 503847801

DECAL, SAFETY

$

$

Not available

8

Husqvarna 503848202

Blade, 7.52 X 2 X .125

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 505171901

PLATE

$10.99

$

In Stock, only 4 left!

0

10

Husqvarna 505171801

BOLT M5 X L16 ALLEN

$7.49

$

In Stock, Qty 10

0

11

Husqvarna 505172001

PLATE, PROTECTOR

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505171701

GUARD

$60.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 505174801

NUT
(Superseded to 532184362)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 505175001

RP_WASHER

$

$

Not available

16

Husqvarna 505169601

BOLT M8 X L25 L/H

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 505169701

WASHER

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 505169801

WASHER

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 505171401

HOLDER (B)

$12.99

$

In Stock, Qty 6

0

20

Husqvarna 505171201

HOLDER (A)

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 505168701

OIL SEAL

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 505168801

RING

$

$

Not available

23

Husqvarna 505168601

BEARING

$

$

Not available

24

Husqvarna 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 505169501

RING

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

27

Husqvarna 505169201

BEARING

$10.99

$

In Stock, only 3 left!

0

28

Husqvarna 505169101

PINION

$36.99

$

In Stock, only 3 left!

0

29

Husqvarna 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 505173901)

$4.99

$

In Stock, only 3 left!

0

30

Husqvarna 505170001

BOLT M6 X L35 ALLEN

$

$

Not available

31

Husqvarna 505168401

GEARCASE

$91.99

$

In Stock, only 3 left!

0

32

Husqvarna 505171501

FITTING

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 505168901

SHAFT

$36.99

$

Usually ships in 3-10 days

0

35

Husqvarna 505169001

GEAR

$

$

Not available

36

Husqvarna 505170201

BEARING

$9.99

$

In Stock, only 4 left!

0

37

Husqvarna 505168501

O-RING

$

$

Not available

38

Husqvarna 505170101

COVER

$14.99

$

In Stock, only 2 left!

0

39

Husqvarna 505170601

BOLT M5 X L14 ALLEN
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 505173701

RUBBER

$15.99

$

In Stock, Qty 20+

0

41

Husqvarna 505173601

PLATE

$7.49

$

In Stock, Qty 17

0

42

Husqvarna 505172601

BOLT M8 X L65

$4.99

$

In Stock, only 4 left!

0

43

Husqvarna 505173901

BOLT M5 X L10

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 505173501

BRACKET

$8.99

$

In Stock, Qty 20+

0

45

Husqvarna 505174601

MAIN BRACKET

$10.99

$

In Stock, only 1 left!

0

46

Husqvarna 505174701

BOLT M8 X L40

$4.99

$

In Stock, Qty 5

0

47

Husqvarna 505173001

WASHER

$4.99

$

In Stock, Qty 10

0

48

Husqvarna 505173301

SLEEVE

$12.99

$

In Stock, Qty 6

0

49

Husqvarna 505172501

WHEEL

$42.99

$

In Stock, only 2 left!

0

50

Husqvarna 505172901

WASHER

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 505173101

RP_NUT
(Superseded to 527068601)

$15.99

$

In Stock, only 1 left!

0

52

Husqvarna 505168301

GEARCASE ASSY
(Superseded to 588163001)

$241.99

$

Usually ships in 3-10 days
