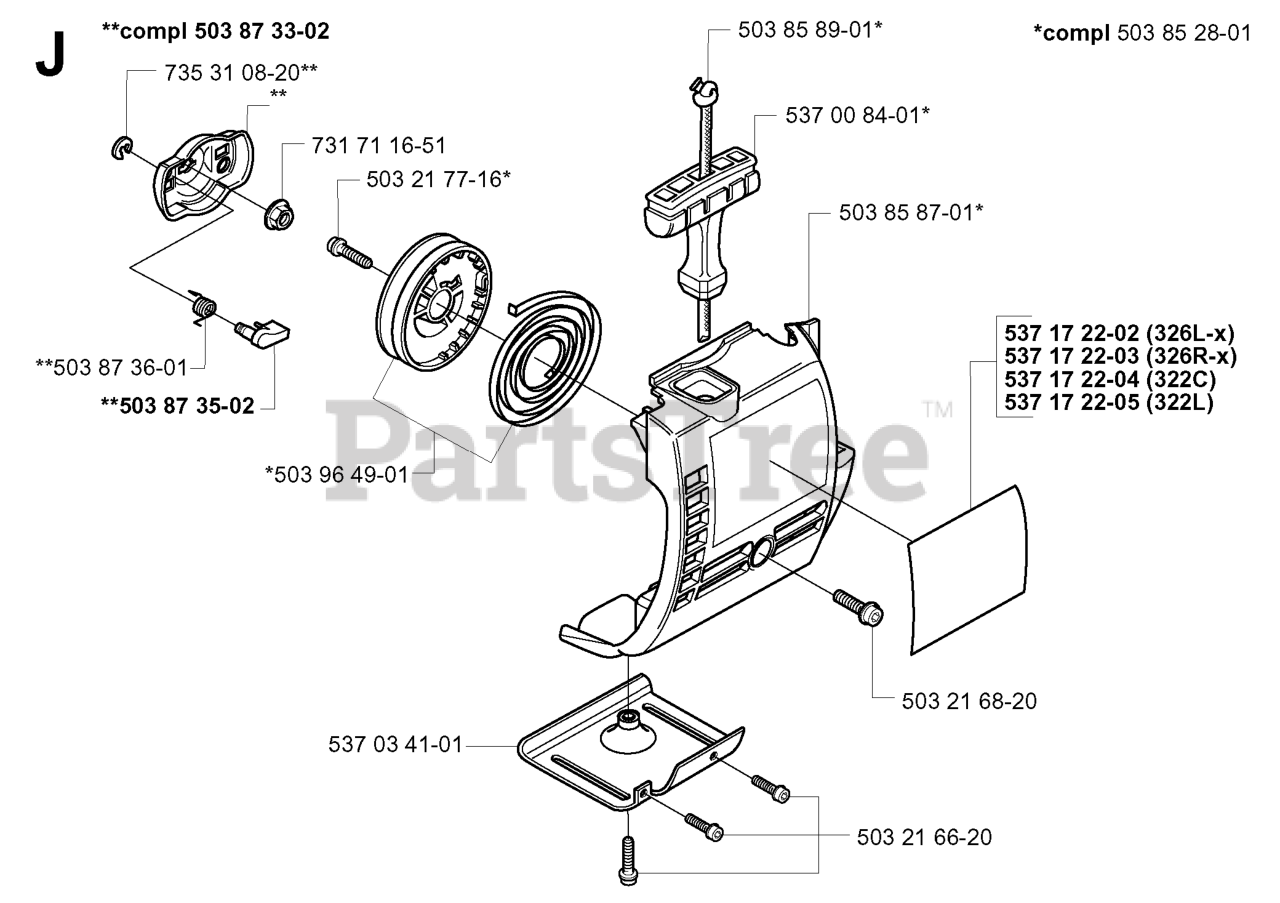

326 L - Husqvarna String Trimmer (SN: 20010900001 - 20020500000) STARTER Parts Diagram

String Trimmer

STARTER Parts Diagram

  • Title

503 87 35-02

Husqvarna 503873502

STARTER PAWL
(Superseded to 544011401)

$13.99

$

In Stock, Qty 12

0

537 03 41-01

Husqvarna 537034101

PLATE

$22.99

$

In Stock, only 2 left!

0

537 00 84-01

Husqvarna 537008401

STARTER HANDLE

$15.99

$

In Stock, only 2 left!

0

503 85 89-01

Husqvarna 503858901

STARTER ROPE

$14.99

$

In Stock, only 2 left!

0

503 85 87-01

Husqvarna 503858701

STARTER HOUSING
(Superseded to 503852807)

$85.99

$

In Stock, only 2 left!

0

537 17 22-04

Husqvarna 537172204

DECAL STARTER HOUSING
(Superseded to 537353429)

Note: 322C

$

$

Not available

503 87 33-02

Husqvarna 503873302

PAWL ASSY COMPLETE
(Superseded to 503873305)

$29.99

$

In Stock, Qty 20+

0

731 71 16-51

Husqvarna 731711651

FLANGE NUT

$4.99

$

In Stock, only 2 left!

0

537 17 22-03

Husqvarna 537172203

DECAL
(Superseded to 537353433)

Note: 326R-X

$

$

Not available

503 21 66-20

Husqvarna 503216620

SCREW
(Superseded to 503216618)

$4.99

$

In Stock, only 2 left!

0

503 87 36-01

Husqvarna 503873601

SPRING

$3.49

$

In Stock, Qty 7

0

503 21 77-16

Husqvarna 503217716

SCREW

$4.99

$

In Stock, only 2 left!

0

503 85 28-01

Husqvarna 503852801

STARTER ASSY
(Superseded to 503852807)

$85.99

$

In Stock, only 2 left!

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$3.99

$

In Stock, Qty 5

0

503 96 49-01

Husqvarna 503964901

STARTER PULLEY ASSY.

$21.99

$

Usually ships in 3-10 days

0

537 17 22-02

Husqvarna 537172202

DECAL STARTER HOUSING
(Superseded to 537353431)

Note: 326L-X

$

$

Not available

503 21 68-20

Husqvarna 503216820

SCREW
(Superseded to 503216220)

$4.99

$

In Stock, Qty 20+

0

537 17 22-05

Husqvarna 537172205

DECAL STARTER 326L
(Superseded to 537353428)

Note: 322L

$

$

Not available
