326 L - Husqvarna String Trimmer (SN: 20041000001 - 20061400000) THROTTLE CONTROLS Parts Diagram

String Trimmer

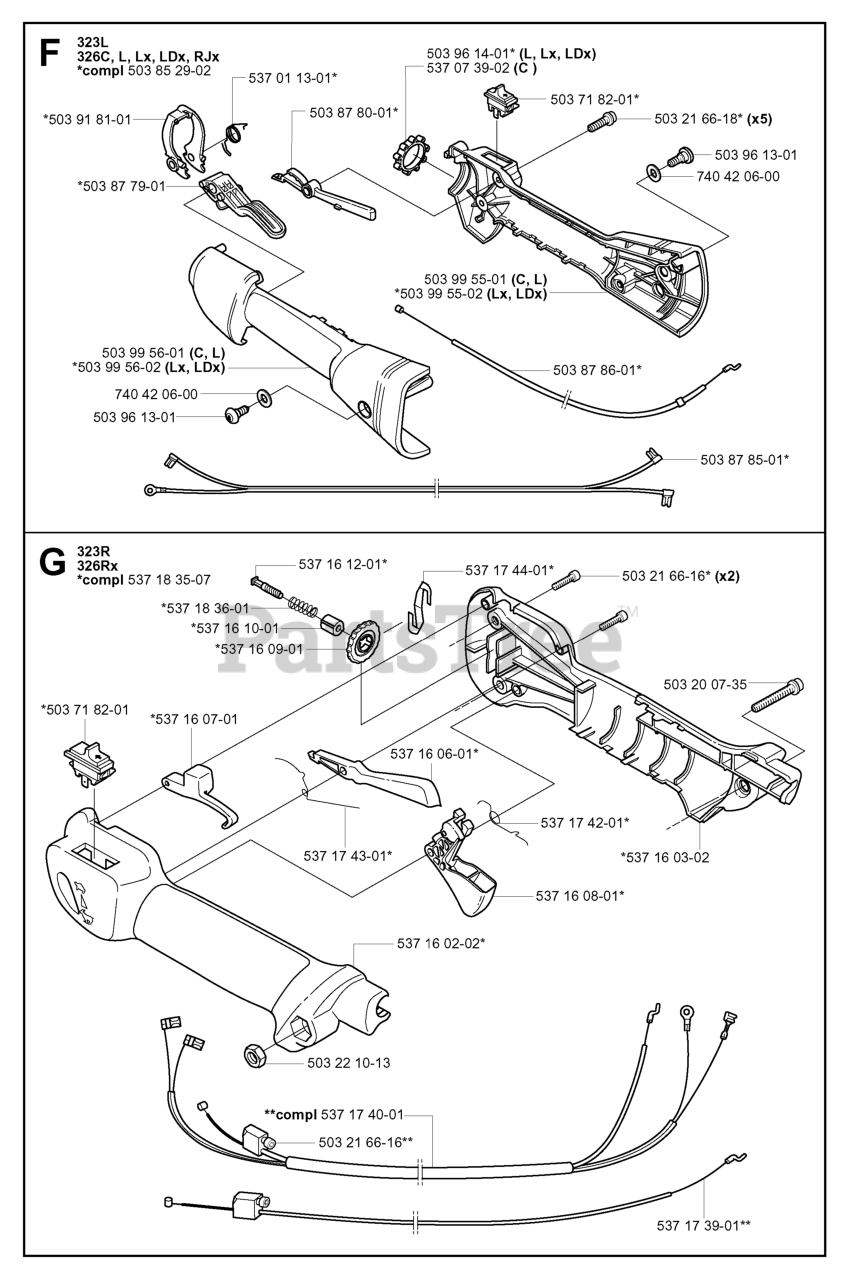

THROTTLE CONTROLS Parts Diagram

  • Title

537 16 12-01

Husqvarna 537161201

SCREW

$4.99

$

Usually ships in 3-10 days

0

740 42 06-00

Husqvarna 740420600

O-RING 8X1.6

$3.49

$

In Stock, only 2 left!

0

503 87 80-01

Husqvarna 503878001

THROTTLE LOCK

$5.99

$

In Stock, only 4 left!

0

503 96 13-01

Husqvarna 503961301

SCREW MT5X11

$4.99

$

In Stock, Qty 10

0

503 85 29-02

Husqvarna 503852902

HANDLE

$68.99

$

In Stock, only 2 left!

0

537 16 07-01

Husqvarna 537160701

LOCKOUT STARTER THROTTLE
(Superseded to 537160703)

$8.49

$

In Stock, only 1 left!

0

537 17 42-01

Husqvarna 537174001

CABLE ASSY

$

$

Not available

503 99 55-02

Husqvarna 503995502

HANDLE

Note: LX, LDX

$33.99

$

In Stock, only 2 left!

0

503 21 66-16

Husqvarna 503216616

SCREW
(Superseded to 503216618)

$4.99

$

In Stock, only 2 left!

0

537 16 03-02

Husqvarna 537160302

HANDLE

$29.99

$

In Stock, only 2 left!

0

537 18 35-07

Husqvarna 537183507

HANDLE

$

$

Not available

537 16 08-01

Husqvarna 537160801

THROTTLE TRIGGER
(Superseded to 506497701)

$7.99

$

In Stock, only 4 left!

0

503 96 14-01

Husqvarna 503961401

VIBRATION DAMPER

Note: L, LX, LDX

$5.99

$

In Stock, only 2 left!

0

503 99 55-01

Husqvarna 503995501

HSG THROTTLE RH

Note: C, L

$14.99

$

In Stock, Qty 5

0

503 99 56-02

Husqvarna 503995602

HANDLE

Note: LX, LDX

$33.99

$

Usually ships in 3-10 days

0

537 16 06-01

Husqvarna 537160601

THROTTLE LOCK
(Superseded to 506497701)

$7.99

$

In Stock, only 4 left!

0

503 87 86-01

Husqvarna 503878601

WIRE
(Superseded to 544171701)

$21.99

$

In Stock, Qty 12

0

503 71 82-01

Husqvarna 503718201

START/STOP SWITCH

$14.99

$

In Stock, Qty 7

0

537 18 36-01

Husqvarna 537183601

SPRING

$

$

Not available

537 16 09-01

Husqvarna 537160901

STEERING WHEEL

$4.99

$

Usually ships in 3-10 days

0

503 87 79-01

Husqvarna 503877901

THROTTLE TRIGGER
(Superseded to 503877903)

$10.99

$

In Stock, Qty 16

0

537 01 13-01

Husqvarna 537011301

SPRING

$5.99

$

In Stock, Qty 13

0

503 22 10-13

Husqvarna 503221013

NUT

$4.99

$

In Stock, Qty 18

0

537 17 44-01

Husqvarna 537174401

PLATE

$13.99

$

Usually ships in 3-10 days

0

537 16 02-02

Husqvarna 537160202

HANDLE
(Superseded to 537160209)

$29.99

$

In Stock, only 2 left!

0

503 99 56-01

Husqvarna 503995601

HANDLE HALF HSG LH

Note: C, L

$14.99

$

In Stock, Qty 5

0

537 16 10-01

Husqvarna 537161001

HUB

$

$

Not available

503 21 66-18

Husqvarna 503216618

SCREW

$4.99

$

In Stock, only 2 left!

0

537 17 43-01

Husqvarna 537174301

SPRING

$3.49

$

In Stock, only 1 left!

0

537 17 40-01

Husqvarna 537174001

CABLE ASSY

$

$

Not available

537 17 39-01

Husqvarna 537173901

THROTTLE WIRE

$45.99

$

In Stock, only 3 left!

0

503 91 81-01

Husqvarna 503918101

LEVER

$7.49

$

In Stock, Qty 19

0

503 20 07-35

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$4.99

$

In Stock, only 2 left!

0

537 07 39-02

Husqvarna 537073902

VIBRATION ABSORBER

Note: C

$7.99

$

Usually ships in 3-10 days

0

503 87 85-01

Husqvarna 503878501

WIRE

$20.99

$

In Stock, only 1 left!

0
