326 LS - Husqvarna String Trimmer (2009-05) Starter Parts Diagram

String Trimmer

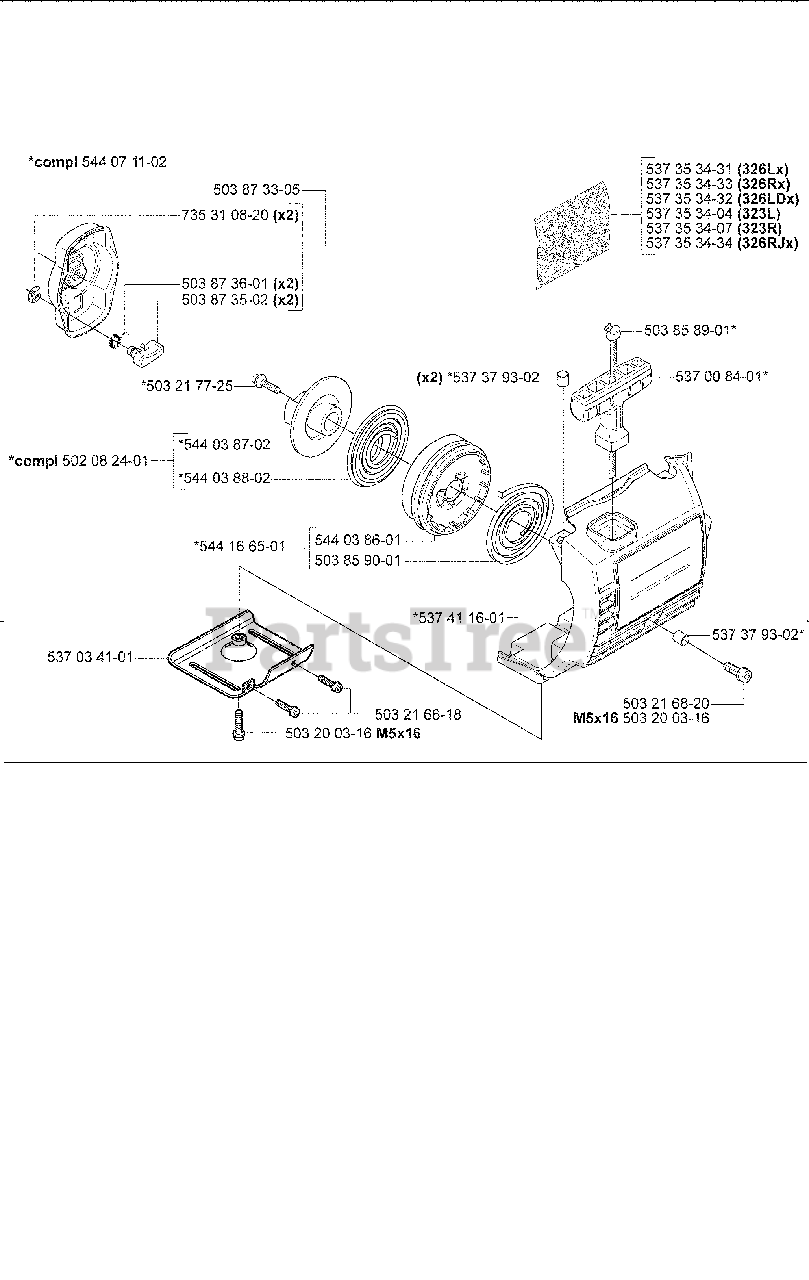

Starter Parts Diagram

  • Title

503216820

Husqvarna 503216820

Screw with Locking Fluid
(Superseded to 503216220)

$4.99

$

In Stock, Qty 20+

0

503200316

Husqvarna 503200316

Screw

$6.49

$

In Stock, Qty 20+

0

537353431

Husqvarna 537353431

DECAL STARTER HOUSING

$

$

Not available

537353433

Husqvarna 537353433

Decal, Device

$4.99

$

Usually ships in 3-10 days

0

537353432

Husqvarna 537353432

DECAL DEVICE

$

$

Not available

537353404

Husqvarna 537353404

Decal

$3.49

$

Usually ships in 3-10 days

0

537353407

Husqvarna 537353407

DECAL STARTER HOUSING

$

$

Not available

537353434

Husqvarna 537353434

DECAL, STARTER HOUSING

$

$

Not available

537034101

Husqvarna 537034101

Plate

$15.99

$

In Stock, Qty 11

0

503216618

Husqvarna 503216618

Screw

$7.49

$

In Stock, Qty 5

0

544071102

Husqvarna 544071102

Starter Assembly
(Superseded to 544071103)

$93.99

$

In Stock, Qty 6

0

537008401

Husqvarna 537008401

Starter Handle

$11.99

$

In Stock, only 3 left!

0

503858901

Husqvarna 503858901

Starter Rope

$9.49

$

In Stock, only 2 left!

0

544038802

Husqvarna 544038802

Driver Spring

$7.49

$

In Stock, Qty 10

0

537379302

Husqvarna 537379302

Spacing Sleeve

$8.99

$

In Stock, only 1 left!

0

544038702

Husqvarna 544038702

Pulley Driver
(Superseded to 579366201)

$4.99

$

In Stock, only 4 left!

0

537379302

Husqvarna 537379302

Spacing Sleeve

$8.99

$

In Stock, only 1 left!

0

544038601

Husqvarna 544038601

Starter Pulley

$12.99

$

In Stock, Qty 7

0

503859001

Husqvarna 503859001

Spring

$24.99

$

In Stock, Qty 7

0

544166501

Husqvarna 544166501

Starter Pulley Assembly

$34.99

$

In Stock, Qty 20+

0

537411601

Husqvarna 537411601

Starter Housing
(Superseded to 537411602)

$36.99

$

In Stock, only 3 left!

0

503873502

Husqvarna 503873502

Starter Pawl
(Superseded to 544011401)

$7.49

$

In Stock, Qty 17

0

735310820

Husqvarna 735310820

Bar Retainer

$4.99

$

In Stock, Qty 20+

0

503873601

Husqvarna 503873601

Spring

$7.49

$

In Stock, Qty 19

0

503873305

Husqvarna 503873305

Starter Pawl Bridge

$26.99

$

In Stock, Qty 20+

0

503217725

Husqvarna 503217725

Screw

$4.99

$

In Stock, Qty 14

0

503200316

Husqvarna 503200316

Screw

$6.49

$

In Stock, Qty 20+

0

502082401

Husqvarna 502082401

Driver

$12.99

$

In Stock, Qty 20+

0
