326 RX - Husqvarna String Trimmer (SN: 20023100001 - 20041000000) THROTTLE CONTROLS Parts Diagram

String Trimmer

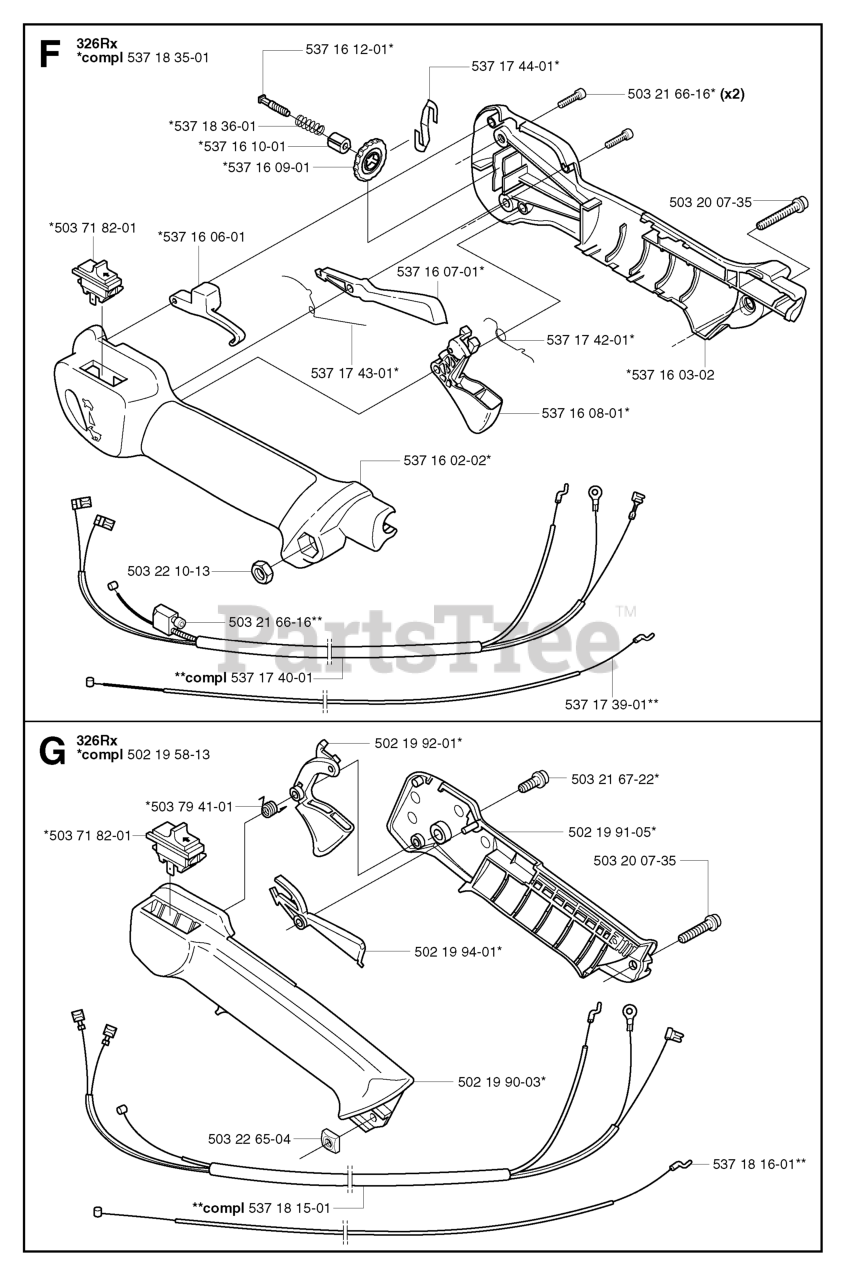

THROTTLE CONTROLS Parts Diagram

  • Title

537 16 02-09

Husqvarna 537160209

HANDLE HALF LEFT

Note: Without hole for Steering wheel assy

$22.99

$

In Stock, only 2 left!

0

502 19 94-01

Husqvarna 502199401

THROTTLE CATCH

$6.99

$

In Stock, Qty 6

0

503 20 07-35

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$4.99

$

In Stock, only 2 left!

0

537 17 40-01

Husqvarna 537174001

CABLE ASSY

$

$

Not available

503 21 66-16

Husqvarna 503216616

SCREW
(Superseded to 503216618)

$7.49

$

In Stock, Qty 20+

0

537 17 44-01

Husqvarna 537174401

PLATE

Note: Does not fit with HANDLE HALF 537 16 02-09

$13.99

$

Usually ships in 3-10 days

0

502 19 92-01

Husqvarna 502199201

THROTTLE CONTROL

$12.99

$

In Stock, only 2 left!

0

537 16 03-02

Husqvarna 537160302

HANDLE

$22.99

$

In Stock, only 2 left!

0

537 17 39-01

Husqvarna 537173901

THROTTLE WIRE

$34.99

$

In Stock, only 3 left!

0

503 71 82-01

Husqvarna 503718201

START/STOP SWITCH

$14.99

$

In Stock, Qty 20+

0

503 22 10-13

Husqvarna 503221013

NUT

$7.49

$

In Stock, Qty 18

0

537 16 07-01

Husqvarna 537160701

LOCKOUT STARTER THROTTLE
(Superseded to 537160703)

$5.99

$

In Stock, only 2 left!

0

537 18 15-01

Husqvarna 537181501

CABLE ASSY

$78.99

$

Usually ships in 3-10 days

0

502 19 58-13

Husqvarna 502195813

THROTTLE HANDLE

$

$

Not available

537 18 16-01

Husqvarna 537181601

THROTTLE WIRE

$31.99

$

In Stock, only 1 left!

0

537 16 10-01

Husqvarna 537161001

HUB

Note: Does not fit with HANDLE HALF 537 16 02-09

$

$

Not available

537 16 02-02

Husqvarna 537160202

HANDLE
(Superseded to 537160209)

Note: Replaced by 537 18 35-07 HANDLE SYSTEM cpl

$22.99

$

In Stock, only 2 left!

0

537 18 35-01

Husqvarna 537183501

THROTTLE HANDLE
(Superseded to 537183507)

$

$

Not available

503 21 67-22

Husqvarna 503216722

SCREW

$6.49

$

In Stock, Qty 10

0

537 16 08-01

Husqvarna 537160801

THROTTLE TRIGGER
(Superseded to 506497701)

$12.99

$

In Stock, only 2 left!

0

537 17 43-01

Husqvarna 537174301

SPRING

$7.49

$

In Stock, Qty 10

0

537 16 06-01

Husqvarna 537160601

THROTTLE LOCK
(Superseded to 506497701)

$12.99

$

In Stock, only 2 left!

0

502 19 90-03

Husqvarna 502199003

HANDLE

$20.76

$

Usually ships in 3-10 days

0

503 79 41-01

Husqvarna 503794101

SPRING

$4.99

$

In Stock, only 3 left!

0

537 17 42-01

Husqvarna 537174201

SPRING

$6.49

$

In Stock, Qty 20+

0

503 22 65-04

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 20+

0

502 19 91-05

Husqvarna 502199105

HANDLE

$20.11

$

Usually ships in 3-10 days

0

537 16 12-01

Husqvarna 537161201

SCREW

Note: Does not fit with HANDLE HALF 537 16 02-09

$4.99

$

Usually ships in 3-10 days

0

537 16 09-01

Husqvarna 537160901

STEERING WHEEL

Note: Does not fit with HANDLE HALF 537 16 02-09

$4.99

$

Usually ships in 3-10 days

0

537 18 36-01

Husqvarna 537183601

SPRING

Note: Does not fit with HANDLE HALF 537 16 02-09

$

$

Not available

503 21 66-16

Husqvarna 503216616

SCREW
(Superseded to 503216618)

$7.49

$

In Stock, Qty 20+

0
