326431-3637-08 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

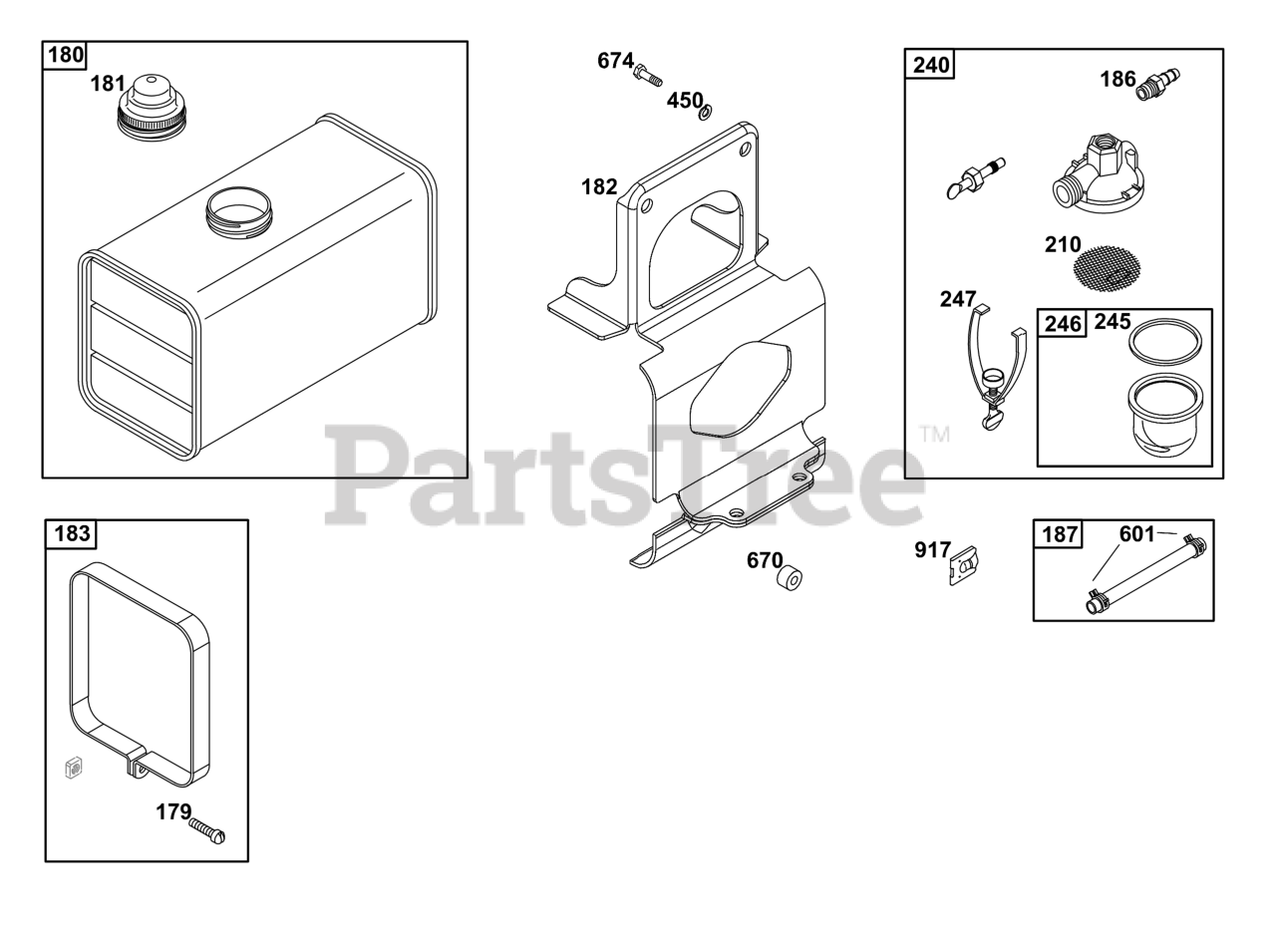

Fuel Supply Group Parts Diagram

  • Title

179

Briggs & Stratton 690280

SCREW

Note: (Fuel Tank Strap)

$3.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291488

TANK, Fuel

$128.99

$

In Stock, only 3 left!

0

181

Briggs & Stratton 791545

CAP, Fuel Tank

Note: (Metal)

$11.99

$

In Stock, only 3 left!

0

182

Briggs & Stratton 695587

BRACKET, Fuel Tank

$47.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 691937

STRAP, Fuel Tank

$33.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 691764

CONNECTOR, Hose

$14.99

$

In Stock, Qty 5

0

186

Briggs & Stratton 691764

CONNECTOR, Hose

$14.99

$

In Stock, Qty 5

0

187

Briggs & Stratton 791745

LINE, Fuel

$10.99

$

In Stock, Qty 5

0

210

Briggs & Stratton 691962

STRAINER, Fuel

$4.99

$

In Stock, Qty 5

0

240

Briggs & Stratton 690612

VALVE, Fuel Shut Off

$

$

Not available

245

Briggs & Stratton 692190

GASKET, Fuel Bowl

$4.99

$

In Stock, Qty 7

0

246

Briggs & Stratton 298683

BOWL, Fuel Filter

$14.99

$

In Stock, only 1 left!

0

247

Briggs & Stratton 691700

YOKE, Bowl

Note: (No Longer Available)

$22.99

$

Usually ships in 2-12 days

0

450

Briggs & Stratton 691075

WASHER

Note: (Fuel Tank Bracket)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

670

Briggs & Stratton 690505

SPACER, Fuel Tank

$8.99

$

Usually ships in 2-12 days

0

674

Briggs & Stratton 690303

SCREW

Note: (Fuel Tank Bracket)

$4.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 691737

VALVE, Handle Shutoff

$7.49

$

In Stock, only 1 left!

0
