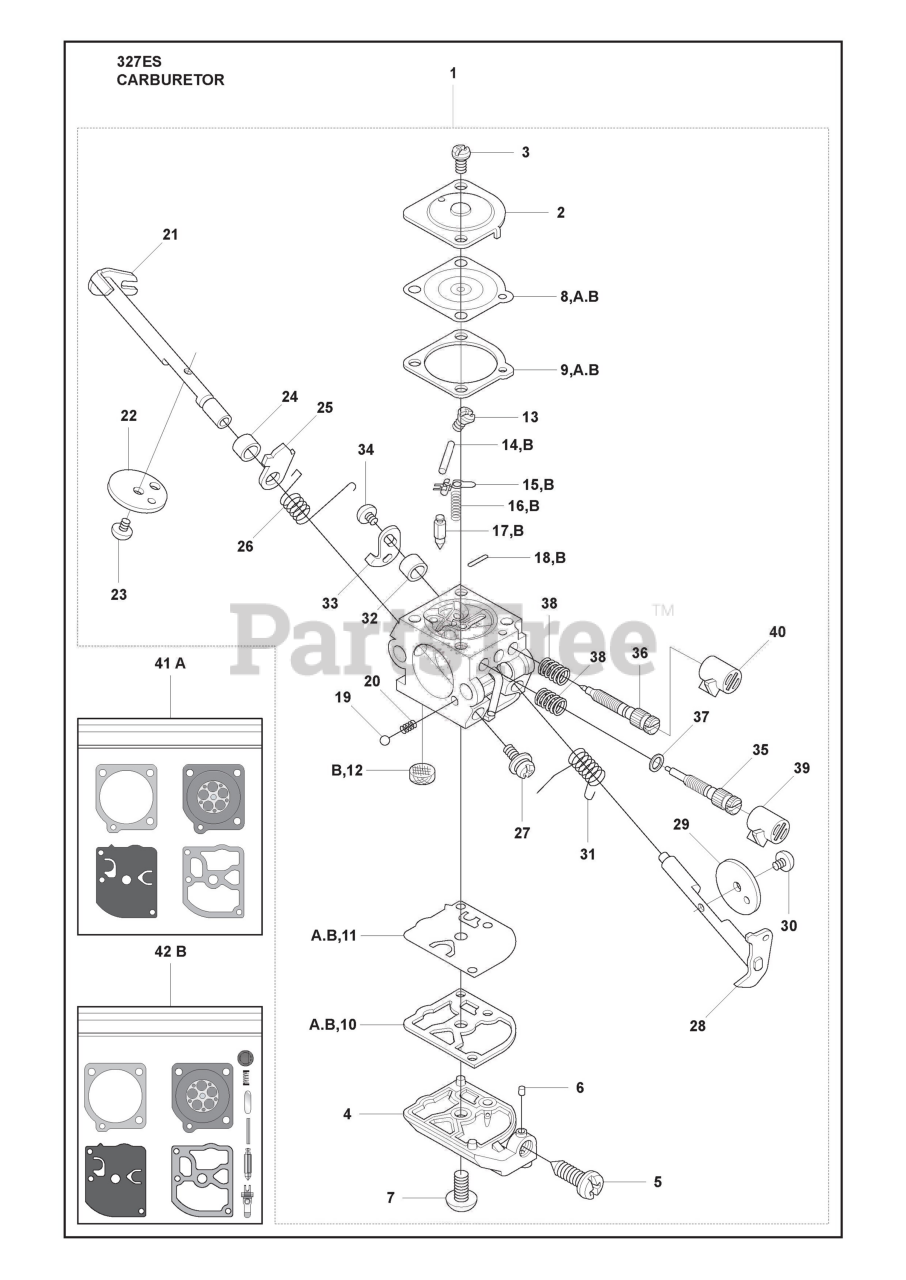

327 ES - Husqvarna Handheld Edger (2010-05) Carburetor Parts Diagram

Handheld Edger

Carburetor Parts Diagram

  • Title

1

Husqvarna 503283401

CARBURETOR
(Superseded to 588171156)

Note: Zama C1Q-EL24

$37.99

$

In Stock, Qty 20+

0

2

Husqvarna 503974301

COVER

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537020201

COVER

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537020701

SCREW

$14.99

$

In Stock, only 1 left!

0

6

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 537048901

DIAPHRAGM

$9.99

$

In Stock, Qty 20+

0

9

Husqvarna 537020401

GASKET

$4.99

$

In Stock, Qty 10

0

10

Husqvarna 537020101

GASKET

$4.99

$

In Stock, Qty 15

0

11

Husqvarna 537020001

PUMP DIAPHRAGM

$7.49

$

In Stock, Qty 5

0

12

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503480001

PIN FULCRUM
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 503665901

LEVER

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 537020301

SPRING
(Superseded to 537273401)

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503479701

INLET NEEDLE

$8.99

$

In Stock, only 2 left!

0

18

Husqvarna 537020801

PIN

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

20

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

21

Husqvarna 537020901

CHOKE SHAFT

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 537370301

CHOKE CAP

$11.99

$

In Stock, only 3 left!

0

23

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

24

Husqvarna 503481901

BUSHING

$9.99

$

In Stock, only 4 left!

0

25

Husqvarna 537049001

LEVER

$2.23

$

Usually ships in 3-10 days

0

26

Husqvarna 537021001

SPRING

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

28

Husqvarna 537019601

SHAFT

$6.91

$

Usually ships in 3-10 days

0

29

Husqvarna 537019901

THROTTLE FLAP

$3.34

$

In Stock, only 2 left!

0

30

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

31

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 503478901

SPACER

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 537019801

LEVER

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

35

Husqvarna 537020601

NEEDLE HIGH SPEED

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 537127801

LOW SPEED NEEDLE

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 503974001

WASHER

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 537021601

CAP

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 537021601

CAP

$3.49

$

In Stock, Qty 20+

0

41,A

Husqvarna 531004552

GASKET KIT (ZAMA GND39)

$10.99

$

Usually ships in 3-10 days

0

42,B

Husqvarna 531004553

CARBURETOR KIT (ZAMA RB69)

$25.99

$

In Stock, only 3 left!

0
