327 ES - Husqvarna Handheld Edger (2010-05) Ignition & Clutch Parts Diagram

Handheld Edger

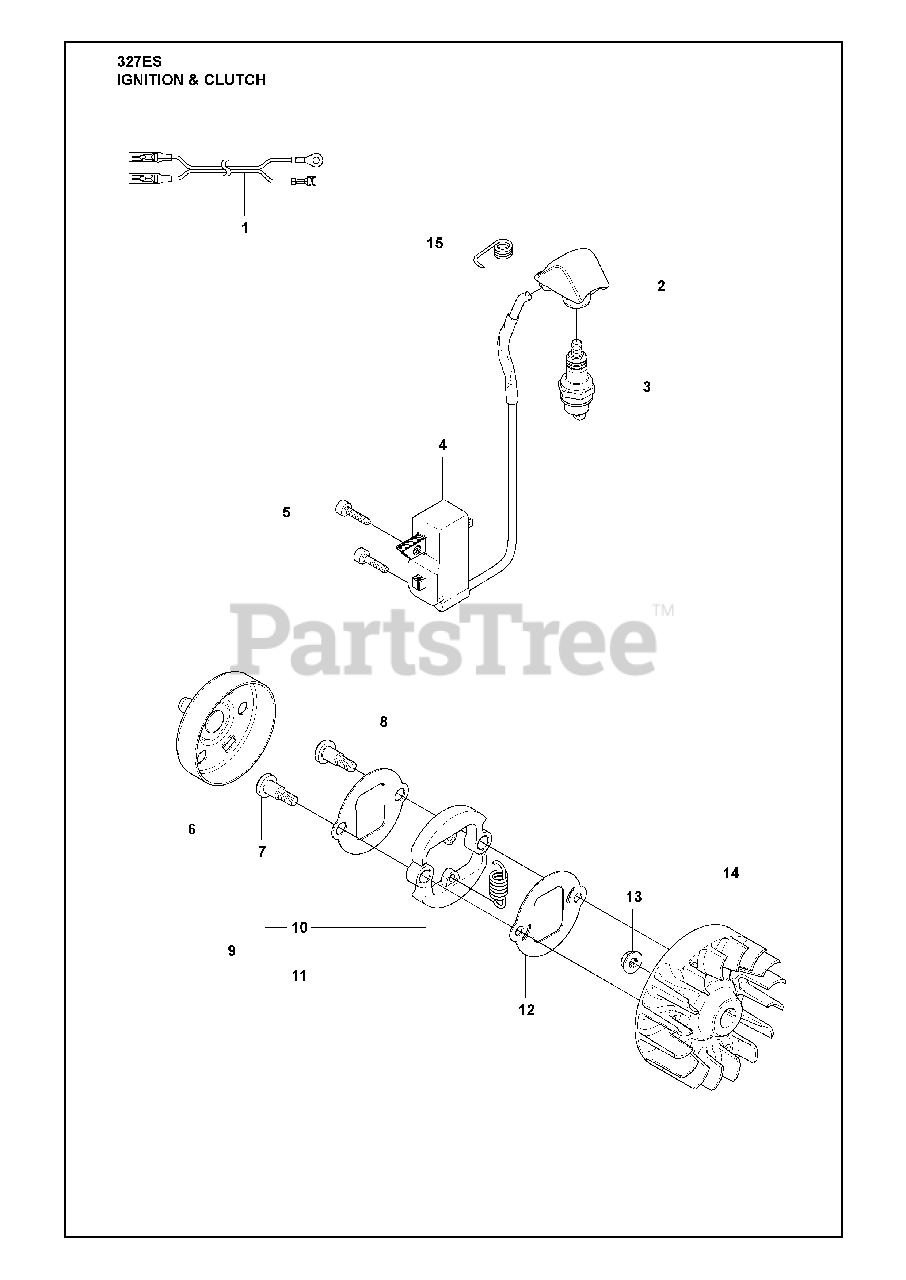

Ignition & Clutch Parts Diagram

  • Title

1

Husqvarna 502493601

SHORT CIRCUIT CABLE

$

$

Not available

2

Husqvarna 537434301

SPARK PLUG CAP
(Superseded to 590056201)

$18.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503235109

Spark Plug, RCJ6Y
(Superseded to 952030164)

Note: Champion RCJ 6Y

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 544127001

IGNITION MODULE OPS
(Superseded to 544127002)

$182.99

$

In Stock, only 1 left!

0

5

Husqvarna 503216618

SCREW

$7.49

$

In Stock, Qty 6

0

6

Husqvarna 537237501

CLUTCH DRUM

$47.99

$

In Stock, only 1 left!

0

7

Husqvarna 503842902

SCREW

$6.99

$

In Stock, Qty 8

0

8

Husqvarna 537046702

WASHER, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 537032201

CLUTCH

$66.99

$

In Stock, only 1 left!

0

10

Husqvarna 503842801

CLUTCH

$26.99

$

In Stock, only 1 left!

0

11

Husqvarna 503816001

SPRING

$9.49

$

In Stock, Qty 12

0

12

Husqvarna 537046802

WASHER

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 731711651

FLANGE NUT

$7.49

$

In Stock, Qty 5

0

14

Husqvarna 537249602

FLYWHEEL

$87.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501485601

SPRING
(Superseded to 501485402)

$12.99

$

In Stock, Qty 20+

0
