327 LS - Husqvarna String Trimmer (SN: 20120100001 & Above) SHAFT & HANDLE Parts Diagram

String Trimmer

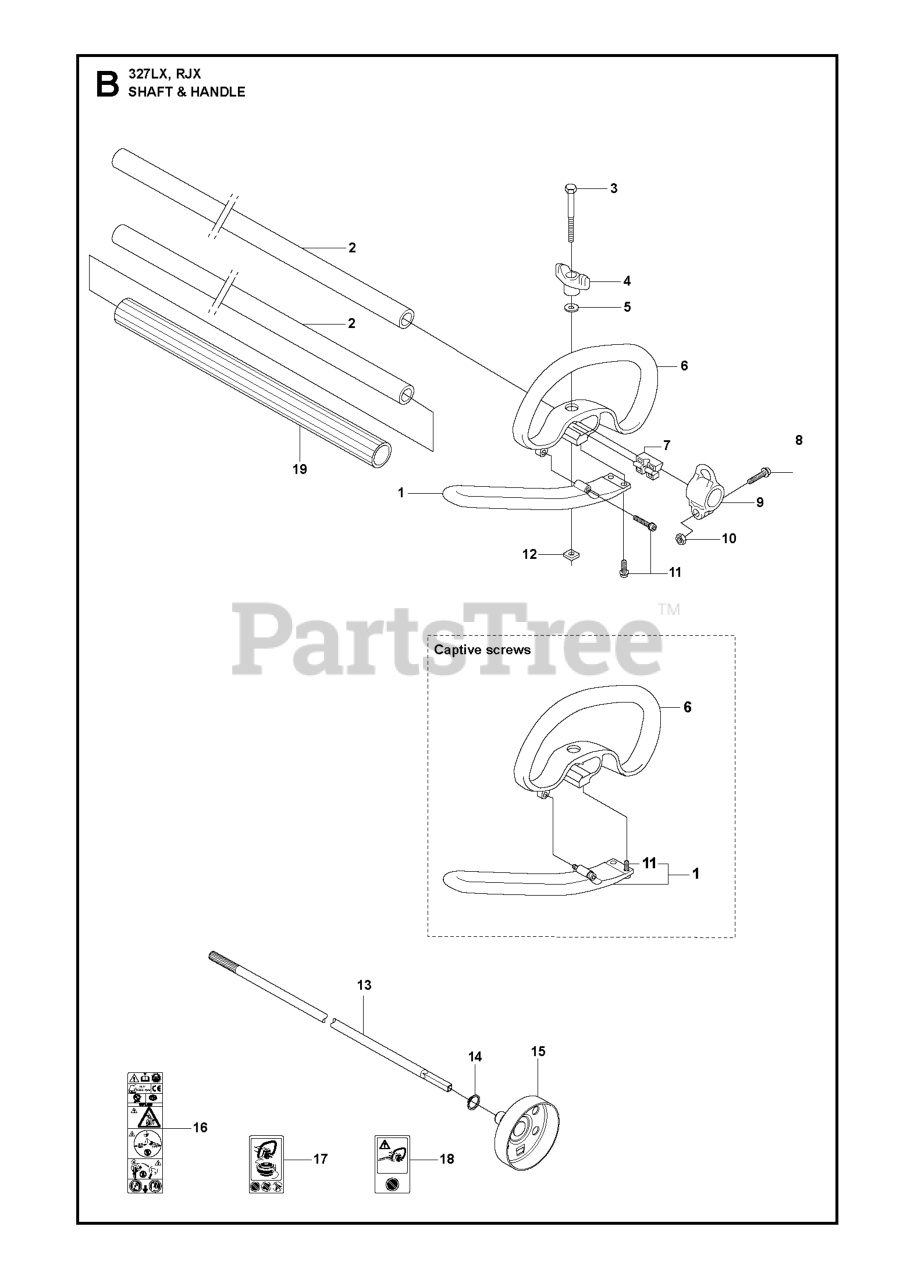

SHAFT & HANDLE Parts Diagram

  • Title

11

Husqvarna 503216816

SCREW

Note: RJx

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537085501

GRIP

Note: France

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537237501

CLUTCH DRUM

$45.99

$

In Stock, only 3 left!

0

16

Husqvarna 537294801

RP WARNING DECAL
(Superseded to 589295101)

$8.49

$

Usually ships in 3-10 days

0

3

Husqvarna 725237851

SCREW

Note: L, LS. M6X40

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 731231401

NUT

Note: RJx

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 503200716

SCREW
(Superseded to 525755101)

Note: RJx

$3.99

$

In Stock, Qty 5

0

1

Husqvarna 503997804

HANDLE

Note: Captive screws

$21.99

$

In Stock, only 2 left!

0

7

Husqvarna 503940301

SPACER PLASTIC

$3.49

$

In Stock, Qty 9

0

4

Husqvarna 503879001

KNOB

Note: Lx

$7.99

$

In Stock, Qty 8

0

9

Husqvarna 503941001

HARNESS HOLDER

Note: RJx

$9.99

$

In Stock, only 2 left!

0

14

Husqvarna 735311200

RETAINING RING SGA 10

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503888801

DRIVE TUBE ASSEMBLY

Note: L=1483mm Ø=24mm

$89.99

$

In Stock, only 2 left!

0

12

Husqvarna 502197101

NUT

$6.49

$

In Stock, Qty 12

0

13

Husqvarna 537234801

DRIVE SHAFT

Note: L=1525mm Ø=7mm

$31.99

$

In Stock, only 3 left!

0

11

Husqvarna 574181501

SCREW IHSCFTO

Note: Captive screws

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 725238051

SCREW M6X50

Note: Lx, RJxM6X50

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 540053801

TUBE DRIVESHAFT ASSY

Note: RJx L=1483mm Ø=24mm France

$95.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503871903

HANDLE, LOOP
(Superseded to 503871908)

$59.99

$

In Stock, only 4 left!

0

17

Husqvarna 503795601

DECAL WARNING "NO BLADES"

$0.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503230061

WASHER

Note: L, LS

$2.49

$

In Stock, Qty 11

0

18

Husqvarna 537101001

DECAL

Note: RJx

$

$

Not available

1

Husqvarna 503997801

HANDLE EXTENSION
(Superseded to 503997804)

Note: RJx

$21.99

$

In Stock, only 2 left!

0

6

Husqvarna 503871908

HANDLE

Note: Captive screws

$59.99

$

In Stock, only 4 left!

0
