327 PT5S - Husqvarna Pole Saw (2011-06) CARBURETOR Parts Diagram

Pole Saw

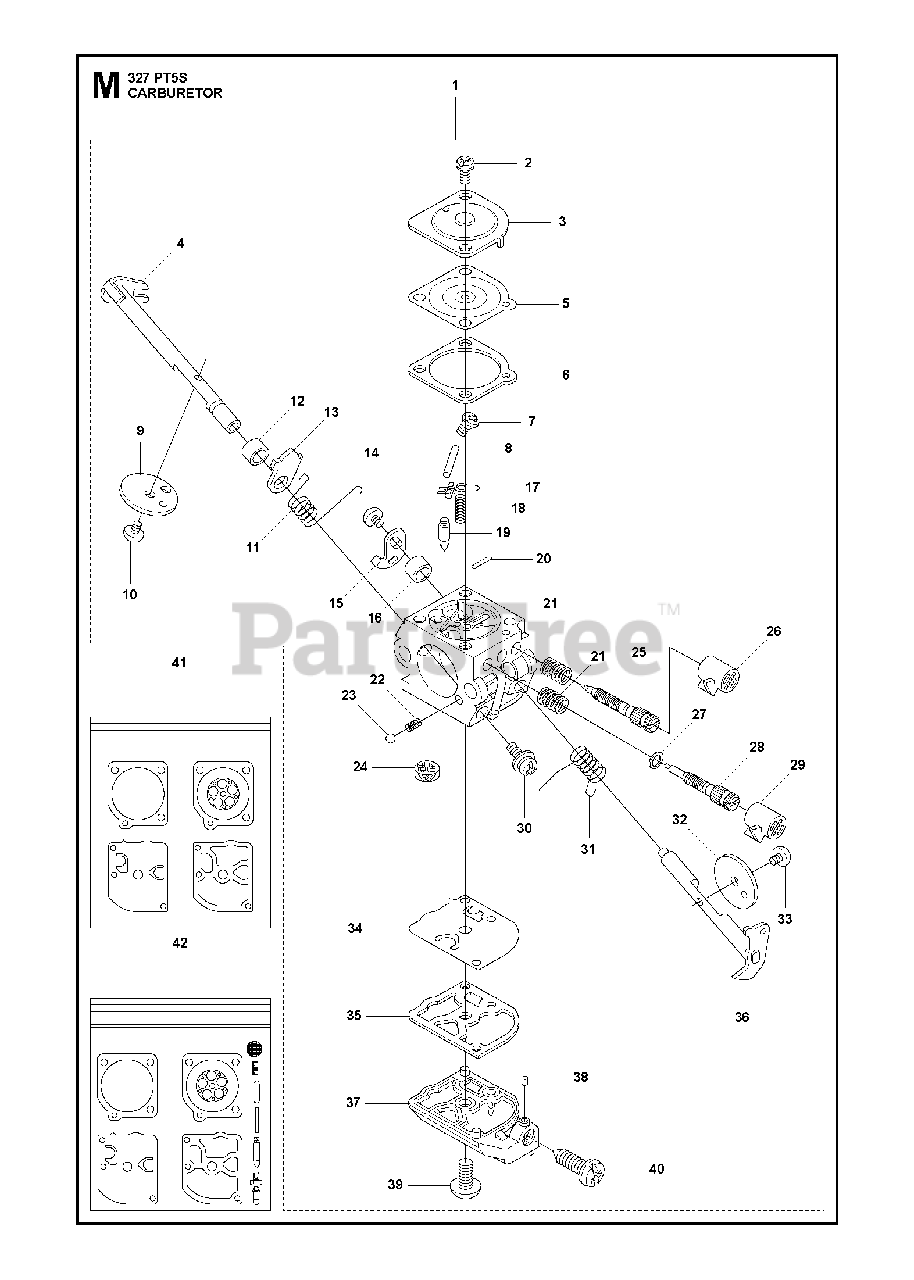

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 503283401

CARBURETOR
(Superseded to 588171156)

Note: Zama C1Q-EL24

$37.99

$

In Stock, Qty 20+

0

2

Husqvarna 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503974301

COVER

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 537020901

CHOKE SHAFT

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537048901

DIAPHRAGM

Note: . 1

$9.99

$

In Stock, Qty 20+

0

6

Husqvarna 537020401

GASKET

Note: . 1

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 537370301

CHOKE CAP

Note: . 1

$11.99

$

In Stock, only 3 left!

0

10

Husqvarna 503481801

SCREW

Note: . 1

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 537021001

SPRING

Note: . 1

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 503481901

BUSHING

Note: . 1

$9.99

$

In Stock, only 4 left!

0

13

Husqvarna 537049001

LEVER

Note: . 1

$2.23

$

Usually ships in 3-10 days

0

14

Husqvarna 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 11

0

15

Husqvarna 537019801

LEVER

Note: . 1

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 503478901

SPACER

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 503665901

LEVER

Note: . 1

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 537020301

SPRING
(Superseded to 537273401)

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 503479701

INLET NEEDLE

Note: . 1

$8.99

$

In Stock, only 2 left!

0

20

Husqvarna 537020801

PIN

Note: . 1

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 503480801

SPRING
(Superseded to 503994301)

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 537012601

SPRING

Note: . 1

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 537012501

BALL

Note: . 1

$3.99

$

In Stock, Qty 7

0

24

Husqvarna 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 4 left!

0

25

Husqvarna 537127801

LOW SPEED NEEDLE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537021601

CAP

Note: . 1

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 503974001

WASHER

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 537020601

NEEDLE HIGH SPEED

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 537021601

CAP

Note: . 1

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 503755301

SCREW *

Note: . 1

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 537019701

SPRING THROTTLE

Note: . 1

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 537019901

THROTTLE FLAP

Note: . 1

$3.34

$

In Stock, only 2 left!

0

33

Husqvarna 503479201

SCREW

Note: . 1

$3.99

$

In Stock, only 2 left!

0

34

Husqvarna 537020001

PUMP DIAPHRAGM

Note: . 1

$7.49

$

In Stock, Qty 5

0

35

Husqvarna 537020101

GASKET

Note: . 1

$4.99

$

In Stock, Qty 15

0

36

Husqvarna 537019601

SHAFT

Note: . 1

$6.91

$

Usually ships in 3-10 days

0

37

Husqvarna 537020201

COVER

Note: . 1

$34.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

40

Husqvarna 537020701

SCREW

Note: . 1

$14.99

$

In Stock, only 1 left!

0

41

Husqvarna 531004552

GASKET KIT (ZAMA GND39)

$10.99

$

Usually ships in 3-10 days

0

42

Husqvarna 531004553

CARBURETOR KIT (ZAMA RB69)

$25.99

$

In Stock, only 3 left!

0
