327 PT5S - Husqvarna Pole Saw (2011-06) COVERS Parts Diagram

Pole Saw

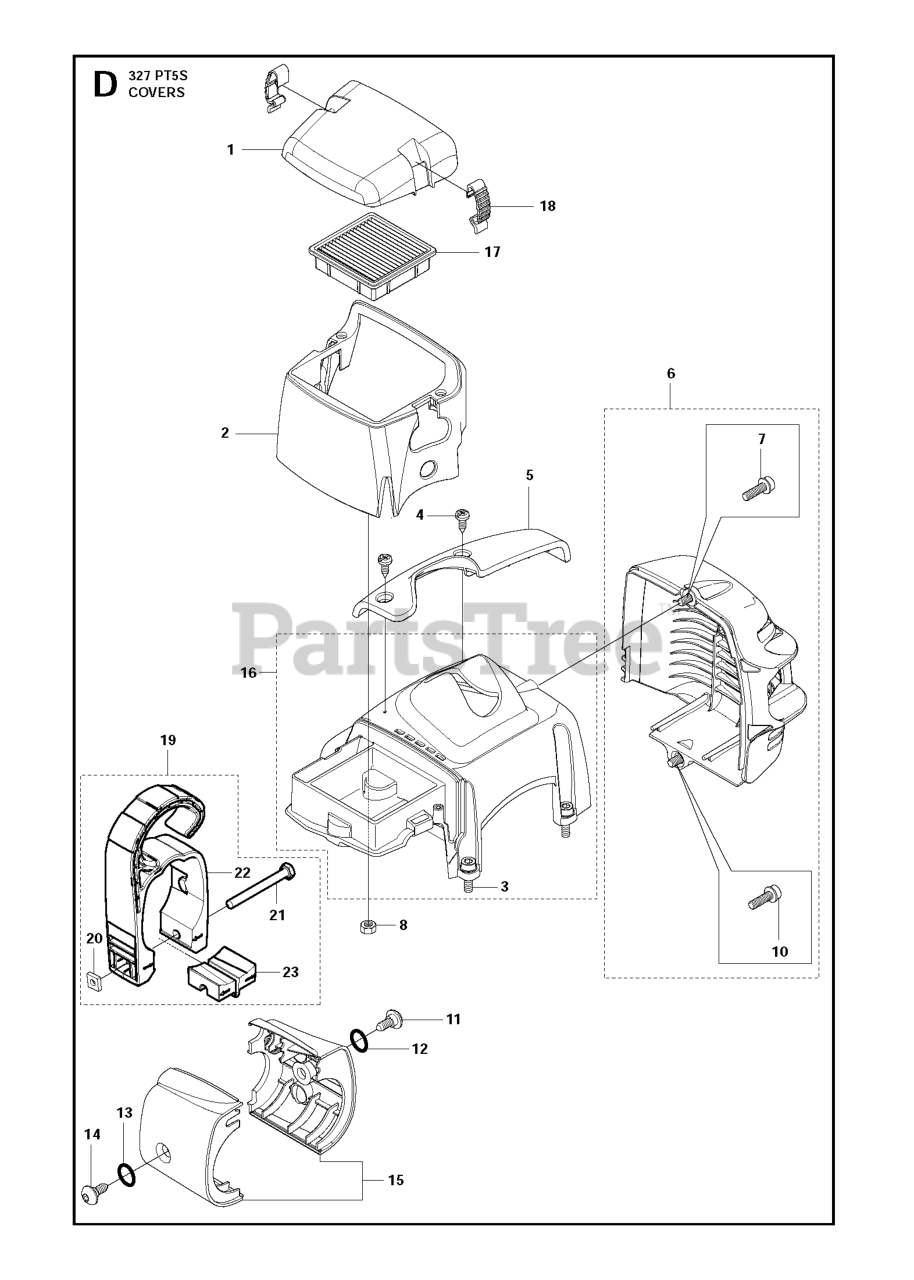

COVERS Parts Diagram

  • Title

1

Husqvarna 505142001

FILTER COVER

$

$

Not available

2

Husqvarna 505142201

COVER

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws. 16

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 503213512

SCREW

$4.99

$

In Stock, Qty 5

0

5

Husqvarna 502481601

ARM PROTECTION

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544848102

HEAT PROTECTOR

Note: Captive screws

$35.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574181501

SCREW IHSCFTO

Note: Captive screws. 6

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503222401

NUT

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws. 6

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 503961301

SCREW MT5X11

$4.99

$

In Stock, Qty 8

0

12

Husqvarna 740420600

O-RING 8X1.6

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 740420600

O-RING 8X1.6

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503961301

SCREW MT5X11

$4.99

$

In Stock, Qty 8

0

15

Husqvarna 502481501

COVER

$29.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505141802

CYLINDER COVER ASSY

Note: Captive screws

$47.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505271001

FILTER

$17.99

$

In Stock, only 4 left!

0

18

Husqvarna 537387201

BUCKLE

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 579264101

LOOP

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 502197101

NUT

Note: . 19

$6.49

$

In Stock, Qty 11

0

21

Husqvarna 725238151

SCREW M6X55

Note: . 19

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574412201

LOOP

Note: . 19

$

$

Not available

23

Husqvarna 574412101

SPACING BLOCK

Note: . 19

$

$

Not available
