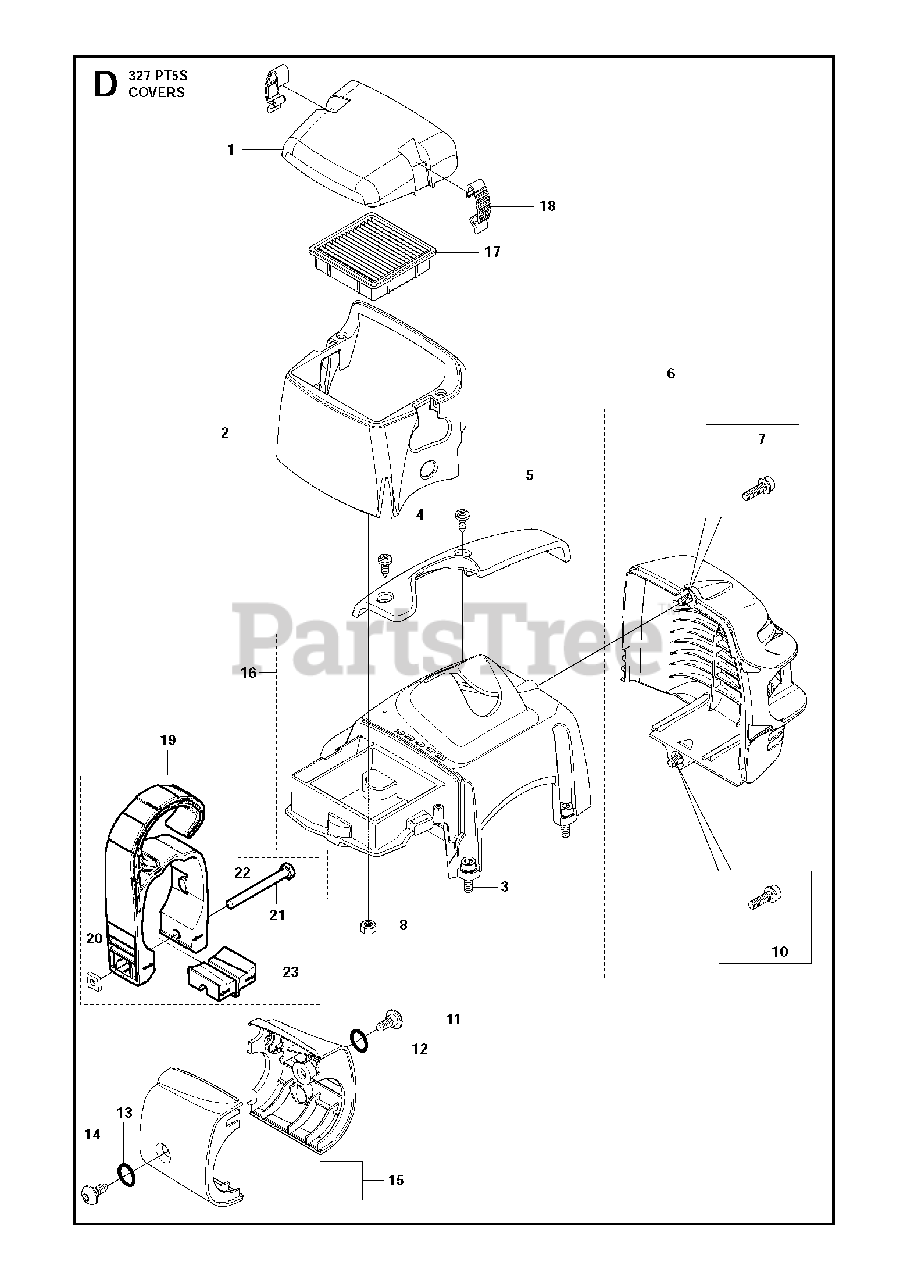

327 PT5S - Husqvarna Pole Saw (2011-06) COVERS Parts Diagram

Pole Saw

COVERS Parts Diagram

  • Title

1

Husqvarna 505142001

FILTER COVER

$

$

Not available

2

Husqvarna 505142201

COVER

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws. 16

$3.49

$

In Stock, only 1 left!

0

4

Husqvarna 503213512

SCREW

$3.49

$

In Stock, only 3 left!

0

5

Husqvarna 502481601

ARM PROTECTION

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 544848102

HEAT PROTECTOR

Note: Captive screws

$28.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574181501

SCREW IHSCFTO

Note: Captive screws. 6

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 10

0

10

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws. 6

$3.49

$

In Stock, only 1 left!

0

11

Husqvarna 503961301

SCREW MT5X11

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 740420600

O-RING 8X1.6

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 740420600

O-RING 8X1.6

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 503961301

SCREW MT5X11

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 502481501

COVER

$22.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505141802

CYLINDER COVER ASSY

Note: Captive screws

$37.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505271001

FILTER

$20.99

$

In Stock, only 3 left!

0

18

Husqvarna 537387201

BUCKLE

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 579264101

LOOP

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 502197101

NUT

Note: . 19

$6.49

$

In Stock, Qty 16

0

21

Husqvarna 725238151

SCREW M6X55

Note: . 19

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 574412201

LOOP

Note: . 19

$

$

Not available

23

Husqvarna 574412101

SPACING BLOCK

Note: . 19

$

$

Not available
