327431-0131-01 - Briggs & Stratton Horizontal Engine Carburetor Overhaul Kit, Engine Gasket Set Parts Diagram

Horizontal Engine

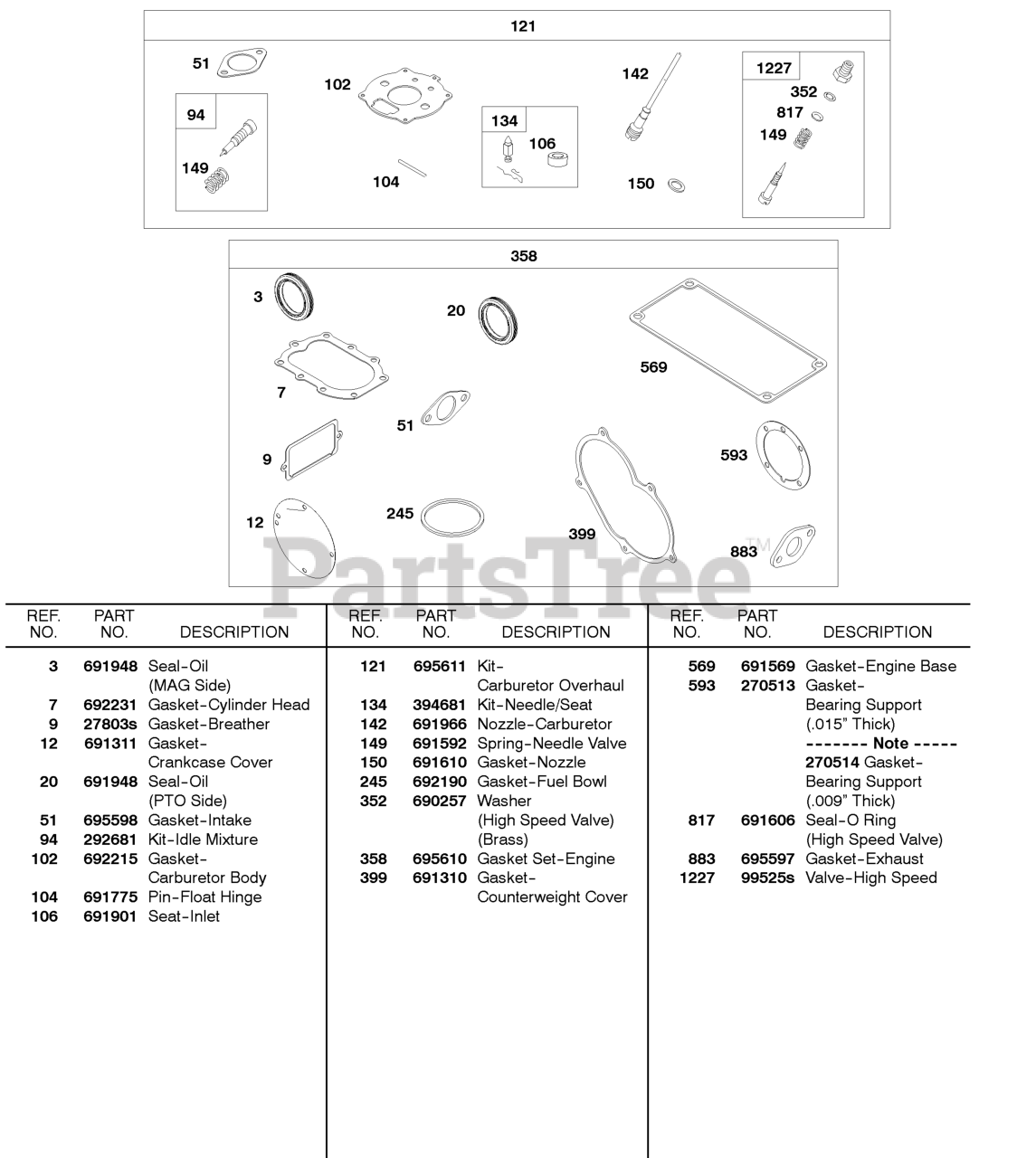

Carburetor Overhaul Kit, Engine Gasket Set Parts Diagram

  • Title

3

Briggs & Stratton 691948

Seal-Oil

Note: (Magneto Side)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 692231

Gasket-Cylinder Head

$11.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 691311

Gasket-Crankcase

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 691948

Seal-Oil

Note: (PTO Side)

$12.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 695598

Gasket-Intake

$3.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Kit-Idle Mixture

$11.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692215

Gasket-Carburetor Body

$5.49

$

In Stock, Qty 5

0

104

Briggs & Stratton 691775

Pin-Float Hinge

$3.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 691901

Seat-Inlet

$8.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 695611

Kit-Carb Overhaul

$50.99

$

Usually ships in 2-12 days

0

134

Briggs & Stratton 394681

Kit-Needle/Seat

$7.99

$

In Stock, Qty 16

0

142

Briggs & Stratton 691966

Nozzle-Carburetor

Note: (Standard)

$21.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 691592

Spring-Needle Valve

$3.99

$

In Stock, Qty 7

0

150

Briggs & Stratton 691610

Gasket-Nozzle

$6.49

$

In Stock, Qty 11

0

245

Briggs & Stratton 692190

Gasket-Fuel Bowl

$4.99

$

In Stock, Qty 7

0

352

Briggs & Stratton 690257

Washer

Note: (High Speed Valve) (Brass)

$4.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 695610

Gasket Set-Engine

$73.99

$

Usually ships in 2-12 days

0

399

Briggs & Stratton 691310

Gasket-Counterweight Cover

$15.99

$

In Stock, only 1 left!

0

569

Briggs & Stratton 691569

Gasket-Engine Base

$11.99

$

In Stock, only 3 left!

0

593

Briggs & Stratton 270515

Gasket-Bearing Support

Note: (.006" Thick)

$7.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270514

Gasket-Bearing Support

Note: (.009" Thick)

$8.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270513

Gasket-Bearing Support

Note: (.015" Thick)

$7.99

$

Usually ships in 2-12 days

0

817

Briggs & Stratton 691606

Seal-O Ring

Note: (High Speed Valve)

$5.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 695597

Gasket-Exhaust

$7.49

$

Usually ships in 2-12 days

0

1227

Briggs & Stratton 99525S

Valve-High Speed

$12.99

$

In Stock, only 3 left!

0
