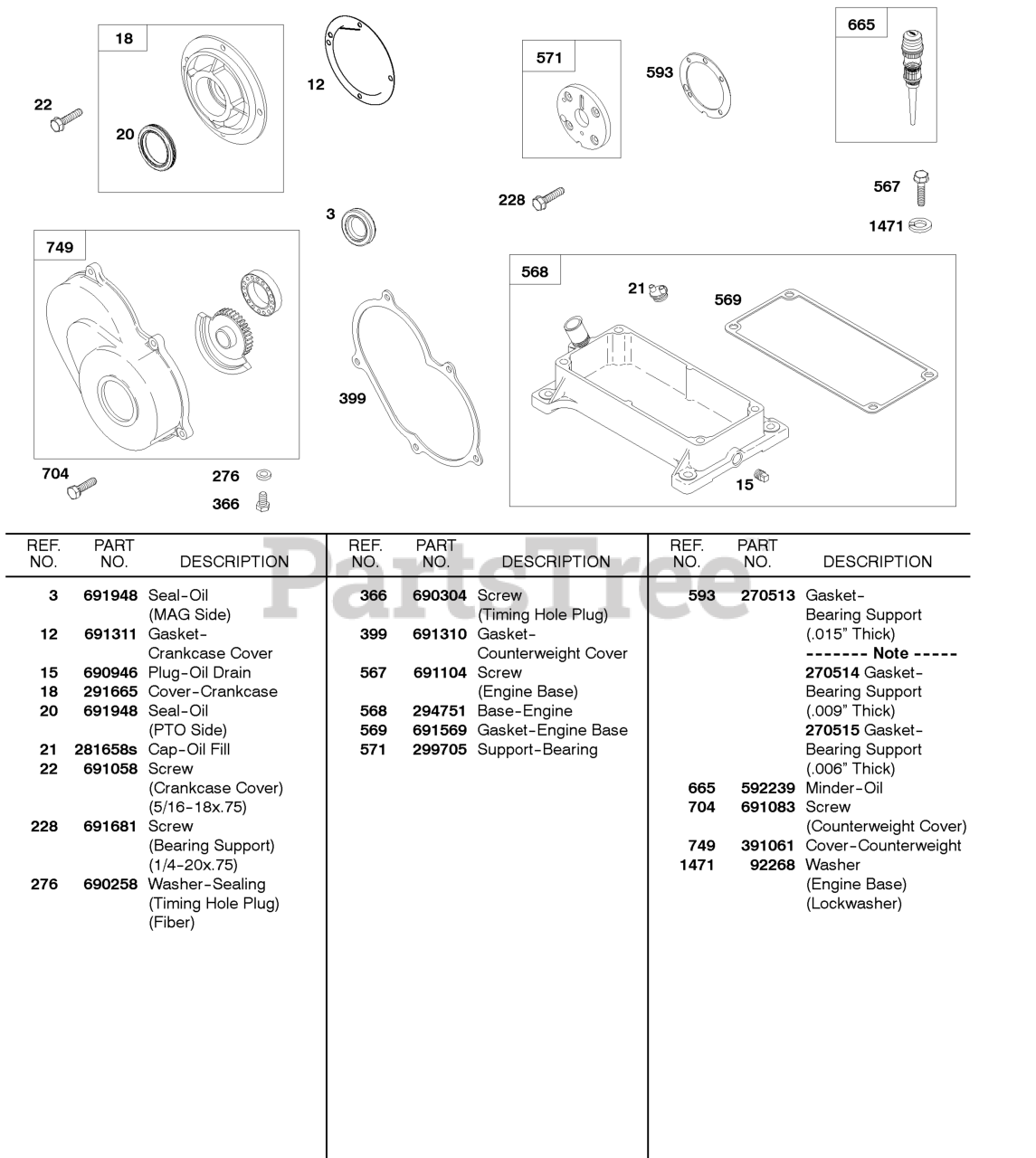

327431-0131-01 - Briggs & Stratton Horizontal Engine Counterweight, Engine Base Parts Diagram

Horizontal Engine

Counterweight, Engine Base Parts Diagram

  • Title

3

Briggs & Stratton 691948

Seal-Oil

Note: (Magneto Side)

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 691311

Gasket-Crankcase

$12.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 17

0

18

Briggs & Stratton 291665

Cover-Crankcase

$68.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 691948

Seal-Oil

Note: (PTO Side)

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 691058

Screw

Note: (Crankcase Cover/Sump) (5/16-18x.75)

$5.99

$

In Stock, Qty 12

0

228

Briggs & Stratton 691681

SCREW

Note: (Bearing Support) (1/4-20x.75)

$8.49

$

In Stock, only 1 left!

0

276

Briggs & Stratton 690258

Washer-Sealing

Note: (Timing Hole Plug)

$6.99

$

In Stock, only 1 left!

0

366

Briggs & Stratton 690304

Screw

Note: (Timing Hole Plug)

$3.99

$

In Stock, only 1 left!

0

399

Briggs & Stratton 691310

Gasket-Counterweight Cover

$15.99

$

In Stock, only 1 left!

0

567

Briggs & Stratton 691104

Screw

Note: (Engine Base)

$4.49

$

In Stock, only 2 left!

0

568

Briggs & Stratton 294751

Base-Engine

$288.99

$

Usually ships in 2-12 days

0

569

Briggs & Stratton 691569

Gasket-Engine Base

$11.99

$

In Stock, only 3 left!

0

571

Briggs & Stratton 299705

Support-Bearing

$45.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270513

Gasket-Bearing Support

Note: (.015" Thick)

$7.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270514

Gasket-Bearing Support

Note: (.009" Thick)

$8.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 270515

Gasket-Bearing Support

Note: (.006" Thick)

$7.99

$

Usually ships in 2-12 days

0

665

Briggs & Stratton 592239

Minder-Oil

$35.99

$

Usually ships in 2-12 days

0

704

Briggs & Stratton 691083

Screw

Note: (Counterweight Cover)

$5.99

$

Usually ships in 2-12 days

0

749

Briggs & Stratton 391061

Cover-Counterweight

$264.99

$

Usually ships in 2-12 days

0

1471

Briggs & Stratton 92268

Washer

Note: (Engine Base) (Lockwasher)

$4.49

$

Usually ships in 2-12 days

0
