329 (190-329-100) - Cub Cadet 46" Mower Rear Bagger Adapter Rear Bagger Adapter Package Parts Diagram

46" Mower Rear Bagger Adapter

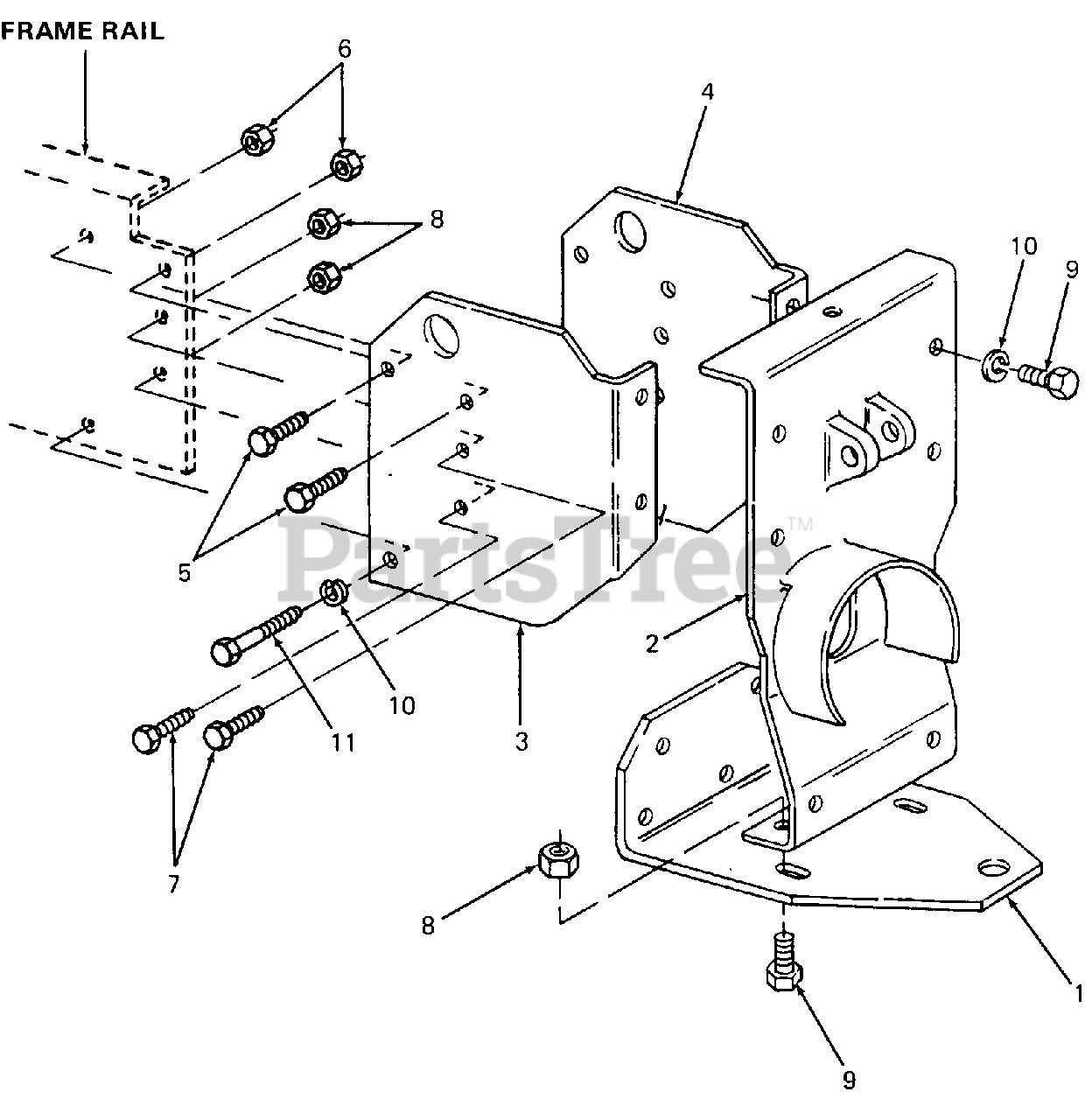

Rear Bagger Adapter Package Parts Diagram

  • Title

1

Cub Cadet 703-0869

Tow Plate

$

$

Not available

2

Cub Cadet 703-0445

Drawbar Support Plate Assy

$

$

Not available

3

Cub Cadet 703-1790

Support Plate Assy - LH

Variations

Cub Cadet 703-1790-0637

SUPPORT PLATE (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-1791

Support Plate Assy - RH

$

$

Not available

5

Cub Cadet 710-3030

Screw, Hex Cap, 7/16-14 X .75 Lg GR5

$

$

Not available

6

Cub Cadet 712-0290

Nut, Hex Center Lock, 7/16-14

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 710-3063

Screw, Hex Cap, 3/8-16 X .75 Lg GR8
(Superseded to 710-3119)

$6.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3121

Bolt, Hex Patch, 3/8-16 X 3.25 Lg GR8

$

$

Not available
