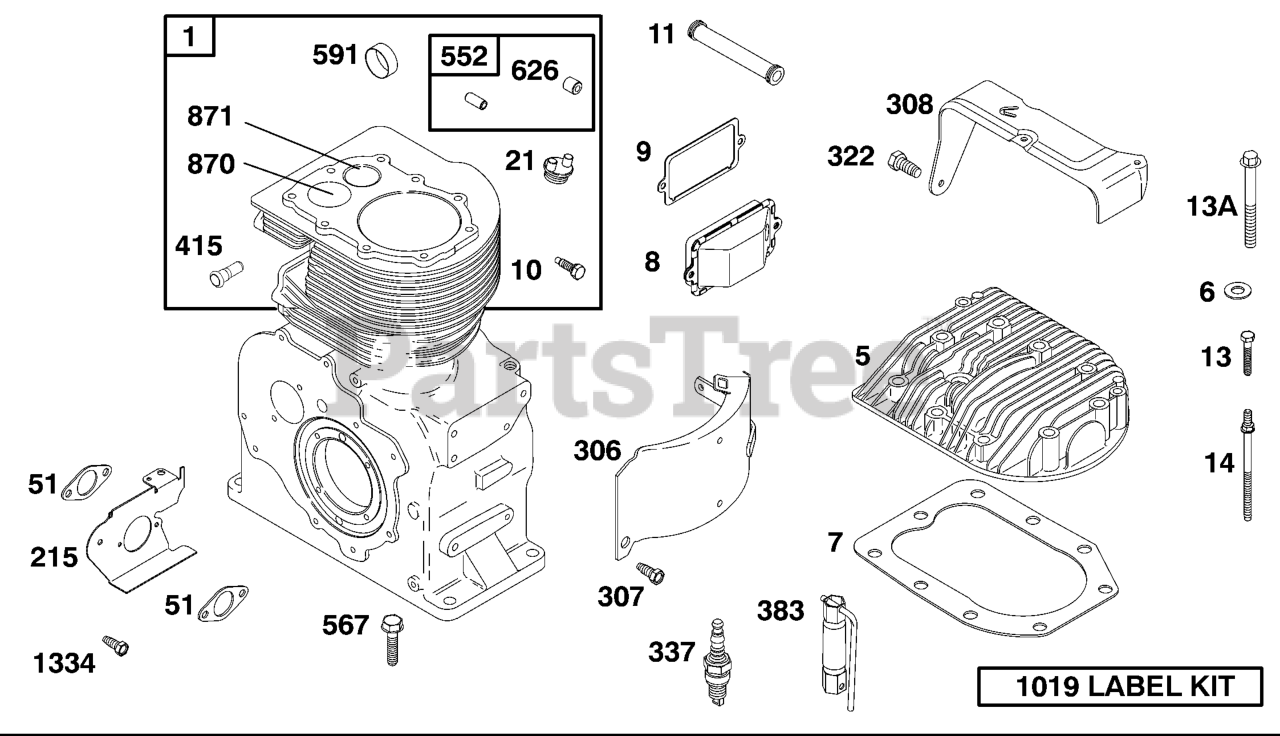

32K437-0112-01 - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 395663

Cylinder Assembly

$744.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 691712

Head-Cylinder

$166.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 691261

WASHER

Note: (Cylinder Head)

$3.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 692231

Gasket-Cylinder Head

$11.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 495738

Breather Assembly

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 690294

Screw

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 691512

Tube-Breather

$

$

Not available

13

Briggs & Stratton 691640

Screw

Note: (Cylinder Head) (2 1/16" Long)

$3.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 691614

Screw

Note: (Cylinder Head) (1 3/4" Long)

$6.99

$

Usually ships in 2-12 days

0

13A

Briggs & Stratton 691441

Screw

Note: (Cylinder Head) (2 7/16" Long)

$7.49

$

In Stock, Qty 5

0

14

Briggs & Stratton 691690

Stud

Note: (Cylinder Head)

$

$

Not available

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 27381S

Gasket-Intake

$4.99

$

In Stock, only 1 left!

0

215

Briggs & Stratton 291871

Guide-Air

$14.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 299536

Shield-Cylinder

$15.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690294

Screw

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 691731

Cover-Cylinder Head

$21.99

$

Usually ships in 2-12 days

0

322

Briggs & Stratton 692198

Screw

Note: (Cylinder Head Cover)

$5.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592S

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, Qty 5

0

415

Briggs & Stratton 692882

Plug

$6.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 393666

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

567

Briggs & Stratton 691104

Screw

Note: (Engine Base)

$4.49

$

In Stock, only 2 left!

0

591

Briggs & Stratton 691746

Plug-Camshaft

$7.49

$

In Stock, only 1 left!

0

626

Briggs & Stratton 690512

Spacer-Governor Crank

$5.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 691583

Seat-Valve

Note: (Exhaust)

$49.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

Bushing-Valve Guide

$14.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 491258

Kit-Label

$37.99

$

Usually ships in 2-12 days

0

1334

Briggs & Stratton 692198

Screw

$5.99

$

Usually ships in 2-12 days

0
