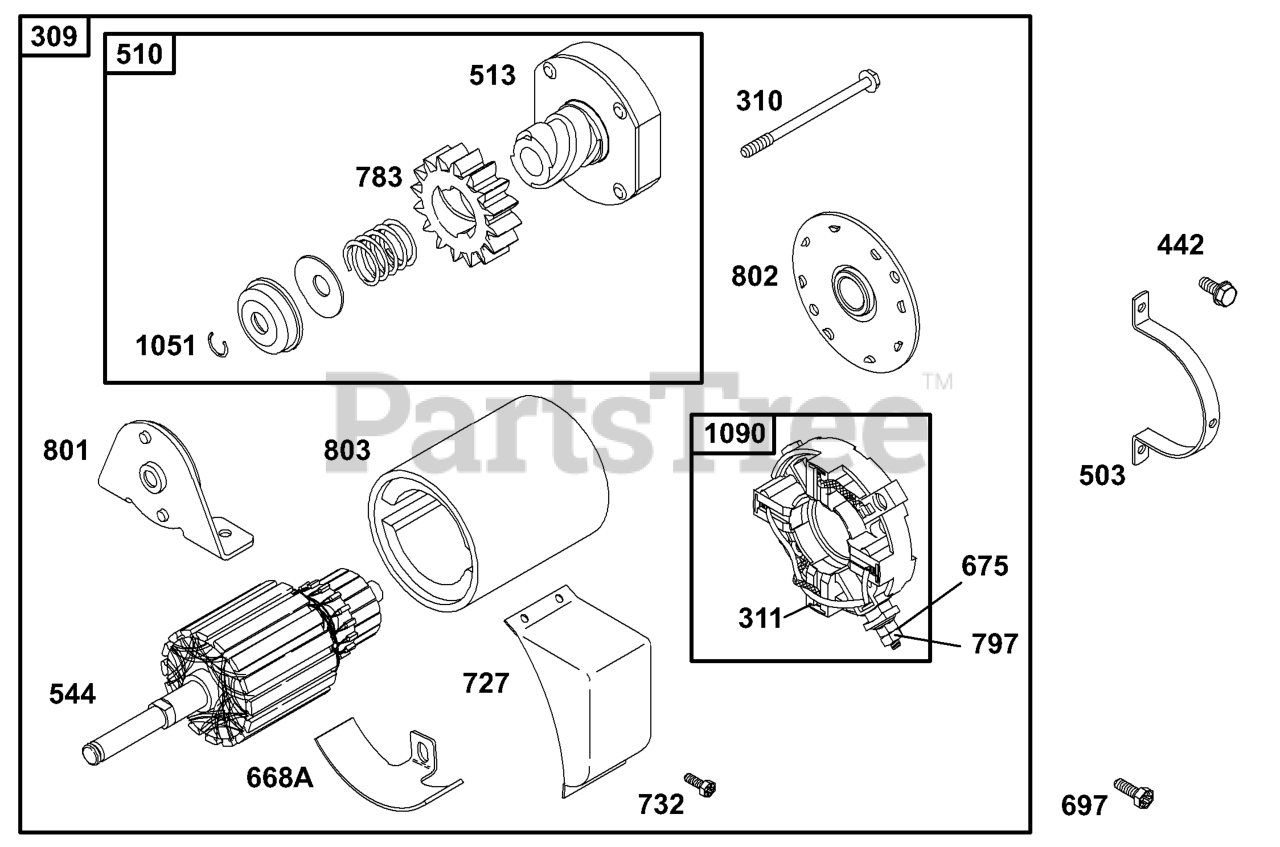

32K437-0112-01 - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 396306

Motor-Starter

$218.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 690329

Screw

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

442

Briggs & Stratton 691693

SCREW

Note: (Starter Strap)

$3.99

$

In Stock, only 1 left!

0

503

Briggs & Stratton 690406

Strap-Starter

$17.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

$90.99

$

In Stock, only 1 left!

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 490309

Armature-Starter

$74.99

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 396515

Spacer

$8.99

$

Usually ships in 2-12 days

0

675

Briggs & Stratton 691261

WASHER

Note: (Brush Retainer)

$3.99

$

In Stock, only 4 left!

0

697

Briggs & Stratton 691058

Screw

Note: (Drive Cap)

$5.99

$

In Stock, Qty 12

0

727

Briggs & Stratton 692338

Cover-Starter Drive

$60.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 93410

Screw

Note: (Starter Drive Cover)

$7.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 695708

Gear-Pinion

$6.99

$

In Stock, Qty 20+

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394802

Cap-Drive

$32.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter

Note: (Service With 396306 Starter Motor Only)

$

$

Not available

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 6

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
