33-08B501 (108-5) - Toro Rear-Engine Riding Mower (1985) Sheet Metal Parts Diagram

Rear-Engine Riding Mower

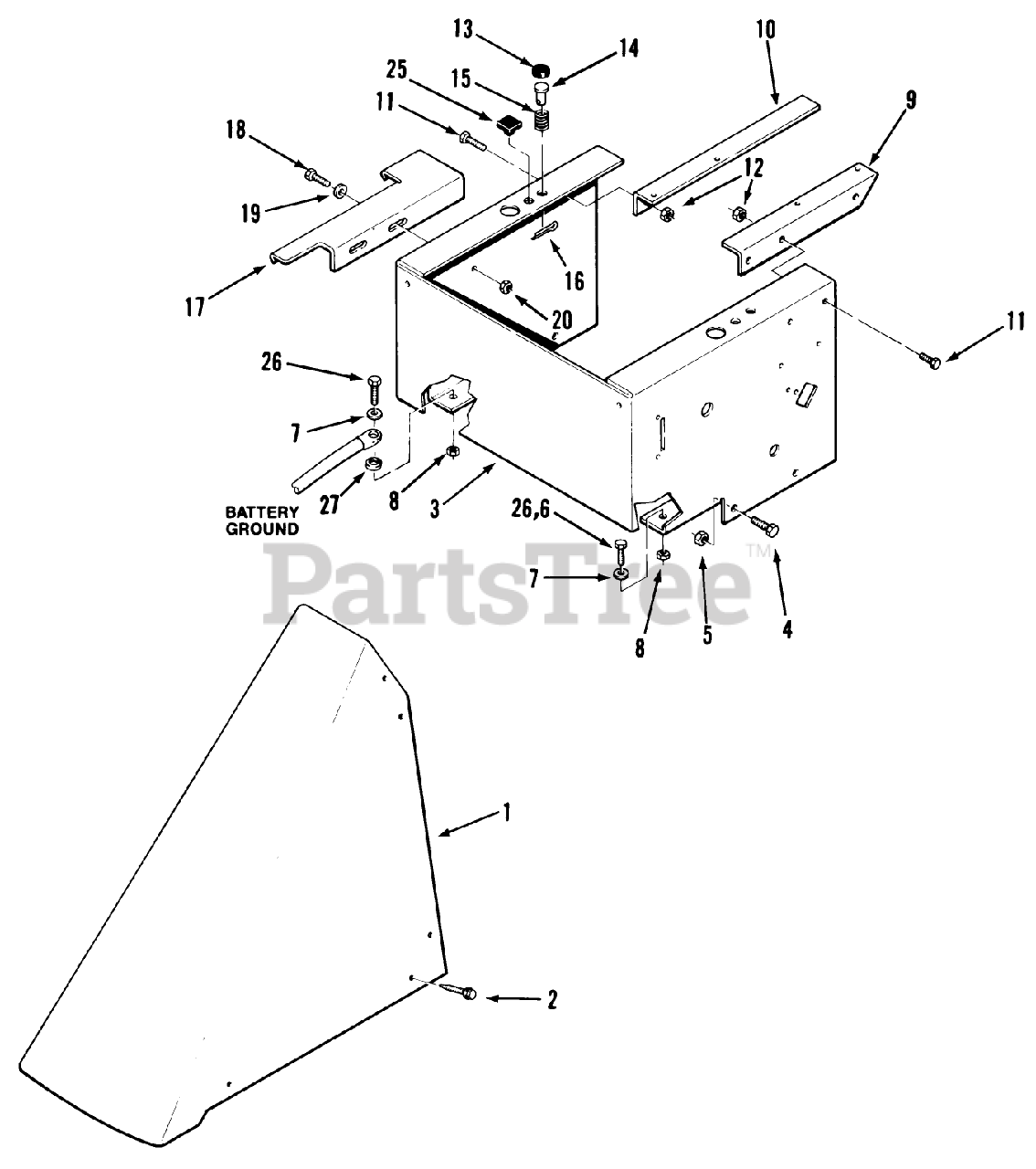

Sheet Metal Parts Diagram

  • Title

1

Toro 110323

DISCONTINUED

$

$

Not available

2

Toro 110430

HEX WASHER STS

$

$

Not available

3

Toro 111065

DISCONTINUED

$

$

Not available

4

Toro 913182

Bolt 3/8-16 x 3/4 GRD 5

$

$

Currently unavailable

5

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

7

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 110353

DISCONTINUED

$

$

Not available

10

Toro 110354

DISCONTINUED

$

$

Not available

11

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

12

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

13

Toro 106331

DISCONTINUED

$

$

Not available

14

Toro 106449

PIN

$8.49

$

Usually ships in 3-6 days

0

15

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

16

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

17

Toro 110470

DISCONTINUED

$

$

Not available

18

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

19

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

20

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

25

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

Usually ships in 3-6 days

0

26

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0
